Velopedia Bicycle Archive

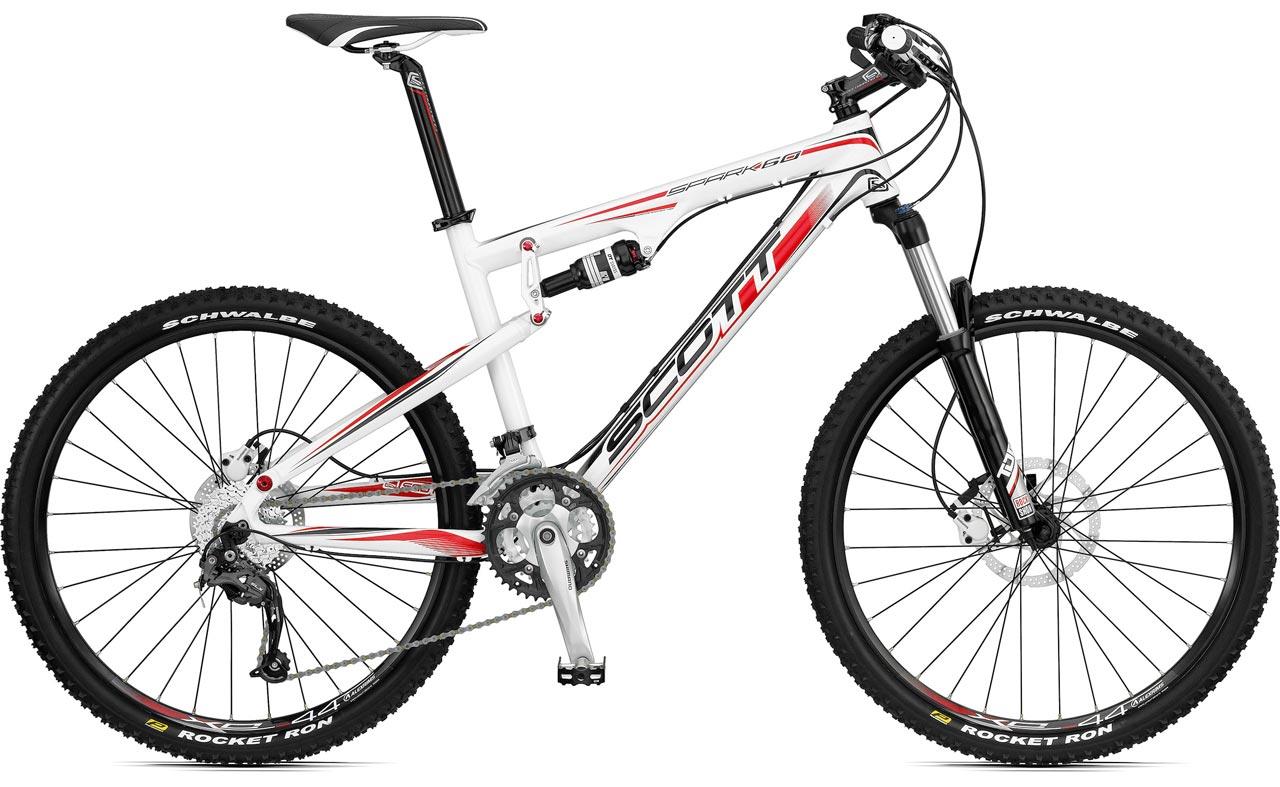

2010 Scott Spark 60
Mountain bike, front & rear suspension bicycle from the Velopedia specification archive.
- Original MSRP
- $1,599.99
- Sizes
- S,M,L,XL
- Colors
- White/Red
- Weight
- 28.63
- Archive ID
- 20340
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | Scott Spark Alloy 6061 DB hydrofrom monocoque |
| Fork | RockShox Tora SL Coil, 120mm travel |
| Fork Material | Single |
| Rear Shock | DT Swiss M210 / Air / reb. Reb. With Lockout, 110mm travel |
Drivetrain
| Component Group | Mountain Mix |
|---|---|
| Shifters | Shimano Deore SL-M590 R-fire plus 2 |
| Front Derailleur | Shimano Deore FC-M591, clamp on 34.9mm |
| Rear Derailleur | Shimano SLX Shadow RD-M662 |
| Crankset | Shimano FC-M442, 22/32/44 teeth |
| Bottom Bracket | Shimano ES-25, 121mm spindle |
| BB Shell Width | 68mm |
| Cassette | Shimano CS-HG50 |
| Rear Cogs | 9-speed, 11 - 32 teeth |
| Chain | Shimano CN-HG53 |
| Pedals | Wellgo LU-998-S |
Brakes
| Brakes | Shimano BR-M486 Hydraulic Disc, 180mm Centerlock rotor front/Shimano BR-M486 Hydraulic w/160mm rotor rear brakes, Shimano BL-M486 levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" semi-ntegrated Ritchey OE 44/50mm |
|---|---|
| Handlebar | Scott Pilot 18 Team 18mm rise / 640mm width |
| Handlebar Extensions | Not included |
| Stem | Scott Comp OS 6-degree |
| Saddle | Scott Racing |
| Seatpost | Scott Comp, 31.6mm diameter |
Wheels & Tires
| Hubs | Front: Scott Team Disc CL, Rear: Shimano FH-RM65 CL |
|---|---|
| Rims | Alex XC-44 disc, 32-hole |
| Spokes | Stainless steel, 15ga. (1.8mm) straight gauge |
| Front Tire | Front: 26 x 2.10" Schwalbe Rocket Ron / 50 TPI Kevlar Beadple compound, Rear: 26 x 2.10" Schwalbe Rocket Ron / 50 TPI Kevlar Bead |
| Wheel Size | 26" wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
