Velopedia Bicycle Archive

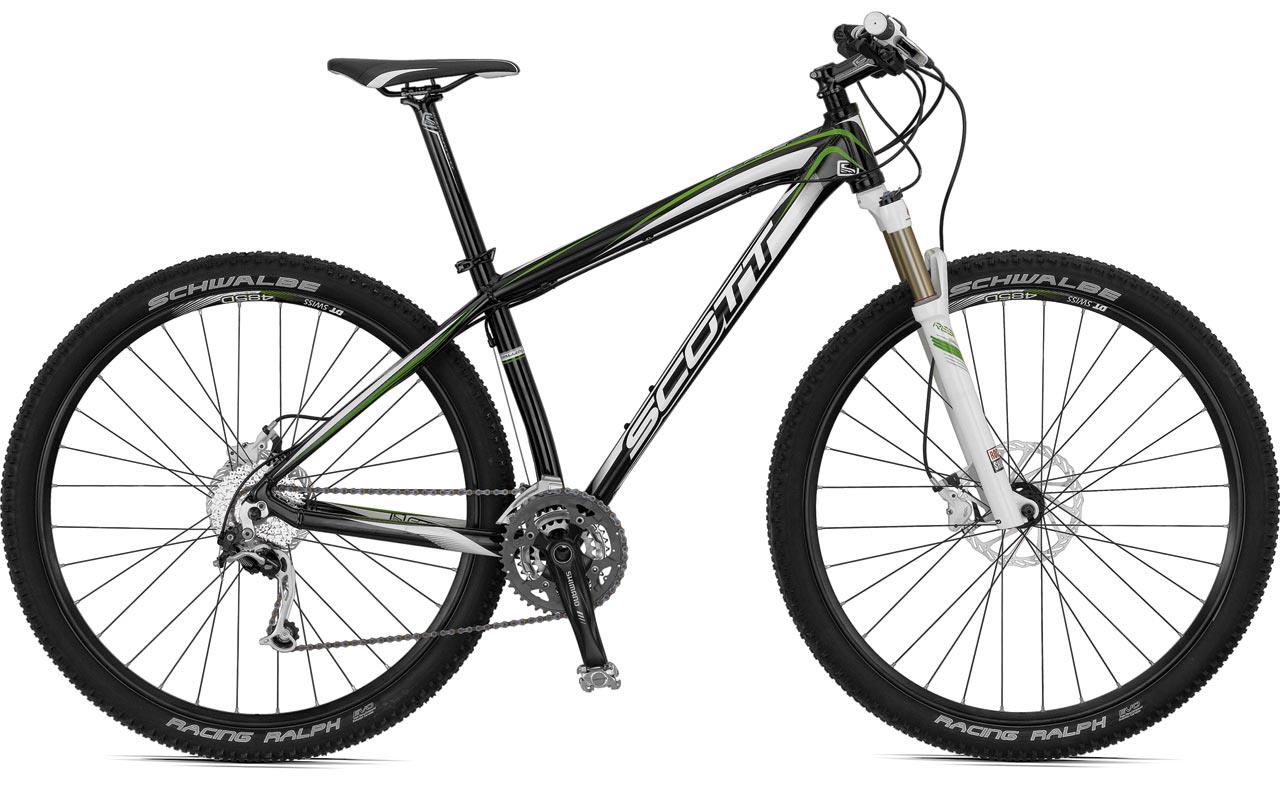

2010 Scott Scale 29"
Mountain bike, front suspension bicycle from the Velopedia historical specification archive.
- Original MSRP
- $1,499.99
- Sizes
- S,M,L,XL
- Colors
- Black/Green
- Weight
- 26.21
- Archive ID
- 20362
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | Scott Scale Alloy 7005 DB hydrafrom |
| Fork | RockShox Reba SL Air 29er, 100mm travel |
| Fork Material | Single |
| Rear Shock | N/A |
Drivetrain
| Component Group | Mountain Mix |
|---|---|
| Shifters | Shimano Deore SL-M590 R-fire plus 2 |
| Front Derailleur | Shimano Deore FC-M590, clamp on 34.9mm |
| Rear Derailleur | Shimano XT RD-M772 SGS Shadow |
| Crankset | Shimano FC-M542 Scott Custom, 22/32/44 teeth |
| Bottom Bracket | Shimano Cartridge |
| BB Shell Width | 68mm |
| Cassette | SRAM PG-950 |
| Rear Cogs | 9-speed, 11 - 32 teeth |
| Chain | Shimano CN-HG53 |
| Pedals | Shimano PD-M505 |
Brakes
| Brakes | Avid Elixer 5E w/185mm rotor front/Avid Elixer 5E w/160mm rotor rear brakes, Avid Elixer 5E levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" semi-ntegrated Ritchey OE 44/50mm |
|---|---|
| Handlebar | Scott Pilot 18 Team 18mm rise / 640mm width |
| Handlebar Extensions | Not included |
| Stem | Scott Comp OS 6-degree |
| Saddle | Scott Racing |
| Seatpost | Scott Comp, 31.6mm diameter |
Wheels & Tires
| Hubs | Front: Scott Comp Disc, Rear: Shimano FH-M525 disc |
|---|---|
| Rims | DT Swiss 445D, 32-hole |
| Spokes | DT Swiss Champion stainless steel, 15ga. (1.8mm) straight gauge |
| Front Tire | 29 x 2.10" Schwalbe Racing Ralph |
| Wheel Size | 29" wheels |
Historical specifications are presented as an archival reference. Component specifications may have varied by market, size, or production run.
