Velopedia Bicycle Archive

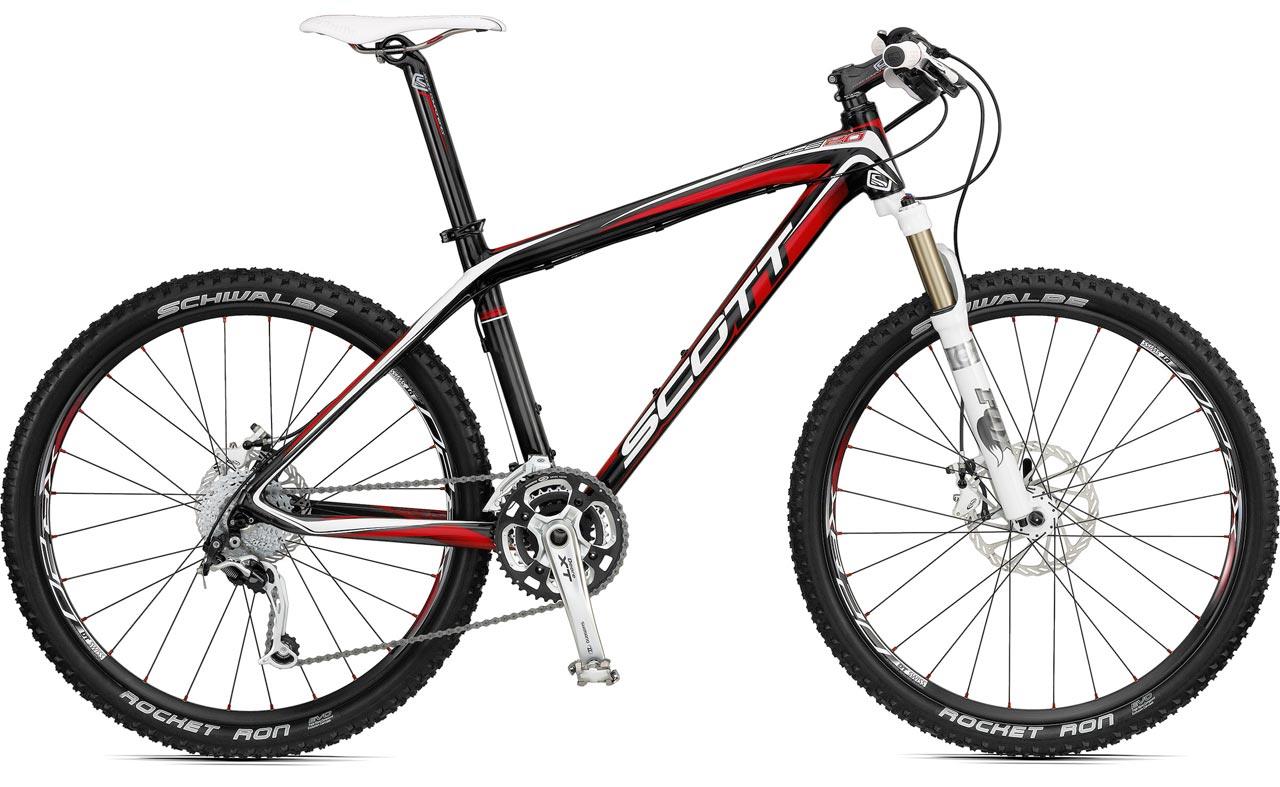

2010 Scott Scale 20
Mountain bike, front suspension bicycle from the Velopedia historical specification archive.
- Original MSRP
- $3,499.99
- Sizes
- S,M,L,XL
- Colors
- Black/Red
- Weight
- 21.7
- Archive ID
- 20345
Frameset
| Frame Construction | Monocoque |
|---|---|
| Frame Material | Scott Scale CR 1 HMF-NET carbon fiber |
| Fork | Fox 32 F100 RL, 100mm travel |
| Fork Material | Single |
| Rear Shock | N/A |
Drivetrain
| Component Group | Shimano XT mix |
|---|---|
| Shifters | Shimano XT M770 Rapidfire Plus |
| Front Derailleur | Shimano XT FD-M770E, E-type |
| Rear Derailleur | Shimano XT RD-M772 SGS Shadow |
| Crankset | Shimano XT FC-M770, 22/32/44 teeth |
| Bottom Bracket | Shimano Cartridge |
| BB Shell Width | 73mm |
| Cassette | Shimano XT M770 |
| Rear Cogs | 9-speed, 11 - 32 teeth |
| Chain | Shimano CN-HG73 |
| Pedals | Shimano PD-M520 |
Brakes
| Brakes | Avid Elixer R Carbon w/185mm rotor front/Avid Elixer R Carbon w/160mm rotor rear brakes, Avid Elixer R Carbon levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" semi-ntegrated Ritchey Pro 44/50mm |
|---|---|
| Handlebar | Scott Hot Rod OS 31.8mm Flat / 620 mm / 9° bend |
| Handlebar Extensions | Not included |
| Stem | Scott Pro OS |
| Saddle | Selle Italia SLR XP Kevlar/ Vanox Rails |
| Seatpost | Scott RC 03-60, 34.9mm diameter |
Wheels & Tires
| Hubs | DT Swiss XR20 Disc |
|---|---|
| Rims | DT Swiss XR20 Disc, 28-hole |
| Spokes | DT Swiss Super Comp stainless steel, 14/16.5/15ga. (2.0/1.7/1.8mm) double-butted |
| Front Tire | 26 x 2.10" Schwalbe Rocket Ron 127 TPI Kevlar Bead Evolution / triple compound |
| Wheel Size | 26" wheels |
Historical specifications are presented as an archival reference. Component specifications may have varied by market, size, or production run.
