Velopedia Bicycle Archive

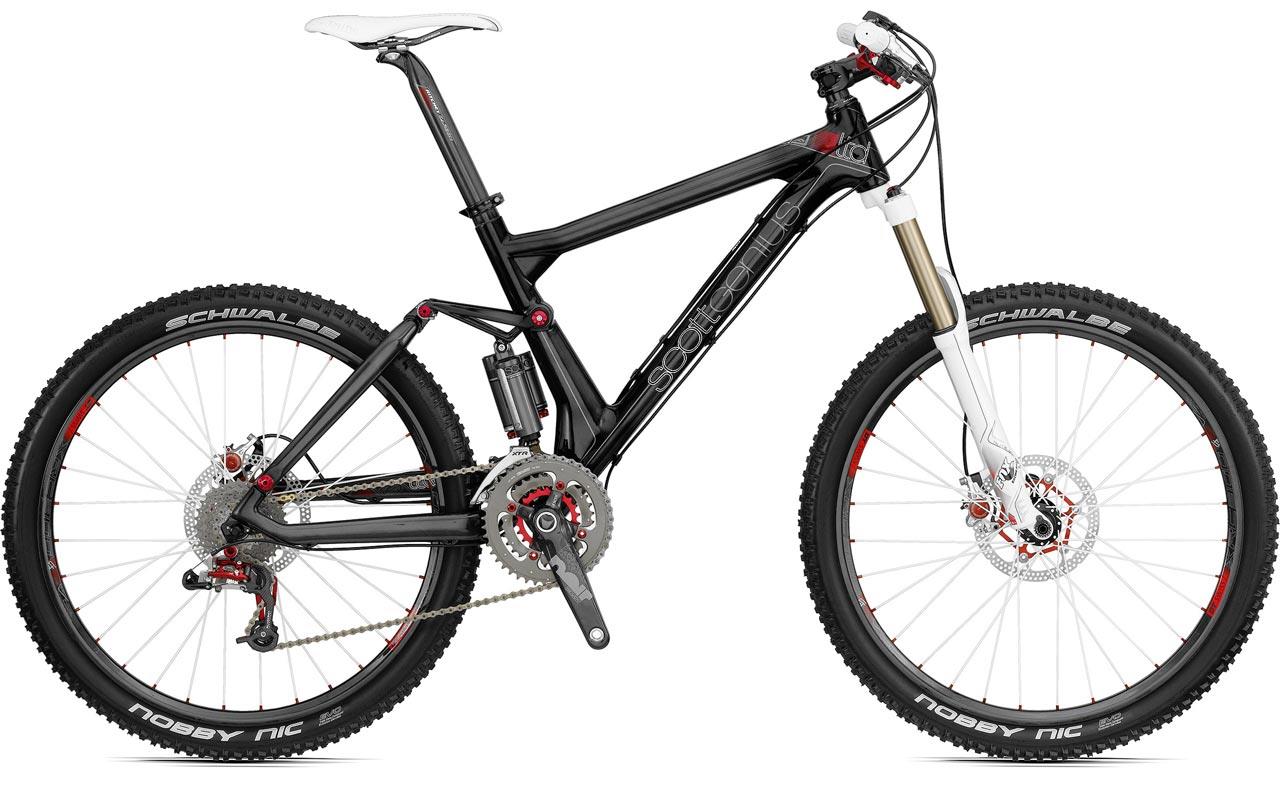

2010 Scott Genius LTD
Mountain bike, front & rear suspension bicycle from the Velopedia specification archive.
- Original MSRP
- $8,999.99
- Sizes
- S,M,L,XL
- Colors
- Black
- Weight
- 22.91
- Archive ID
- 20361
Frameset
| Frame Construction | Monocoque |
|---|---|
| Frame Material | Scott HMX NET carbon fiber |
| Fork | DT Swiss EXC 150, 150mm travel |
| Fork Material | Carbon lowers, single crown |
| Rear Shock | Scott Equalizer 2, 150mm/95mm/LO Adjustable Travel |
Drivetrain
| Component Group | Mountain Mix |
|---|---|
| Shifters | SRAM X.0 Trigger |
| Front Derailleur | Shimano XTR M970E, E-type |
| Rear Derailleur | SRAM X.0 Carbon Med. Cage |
| Crankset | TruVativ Noir 3.3 Team Carbon GXP, 22/32/44 teeth |
| Bottom Bracket | Truvativ GXP Team |
| BB Shell Width | 73mm |
| Cassette | Shimano XTR CS-M970 |
| Rear Cogs | 9-speed, 11 - 32 teeth |
| Chain | SRAM PC 991 |
| Pedals | Crank Brothers Egg Beater 4Ti |
Brakes
| Brakes | Formula R1 disc w/180mm rotor brakes, Formula R1 carbon hydraulic levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" semi-ntegrated Ritchey WCS Carbon 44/50mm |
|---|---|
| Handlebar | Ritchey Carbon WCS 18mm rise/ 660mm width |
| Handlebar Extensions | Not included |
| Stem | Ritchey WCS 4-Axis 44 OS 6-degree |
| Saddle | Fizik Tundra Braided Carbon rails |
| Seatpost | Ritchey WCS Carbon, 34.9mm diameter |
Wheels & Tires
| Hubs | DT Swiss 240S |
|---|---|
| Rims | DT Swiss XRC 330 carbon, 32-hole |
| Spokes | DT Aerolite stainless steel, 2.0/1.5/2.0 butted and bladed |
| Front Tire | 26 x 2.20" Continental Mountain King SuperSonic |
| Wheel Size | 26" wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
