Velopedia Bicycle Archive

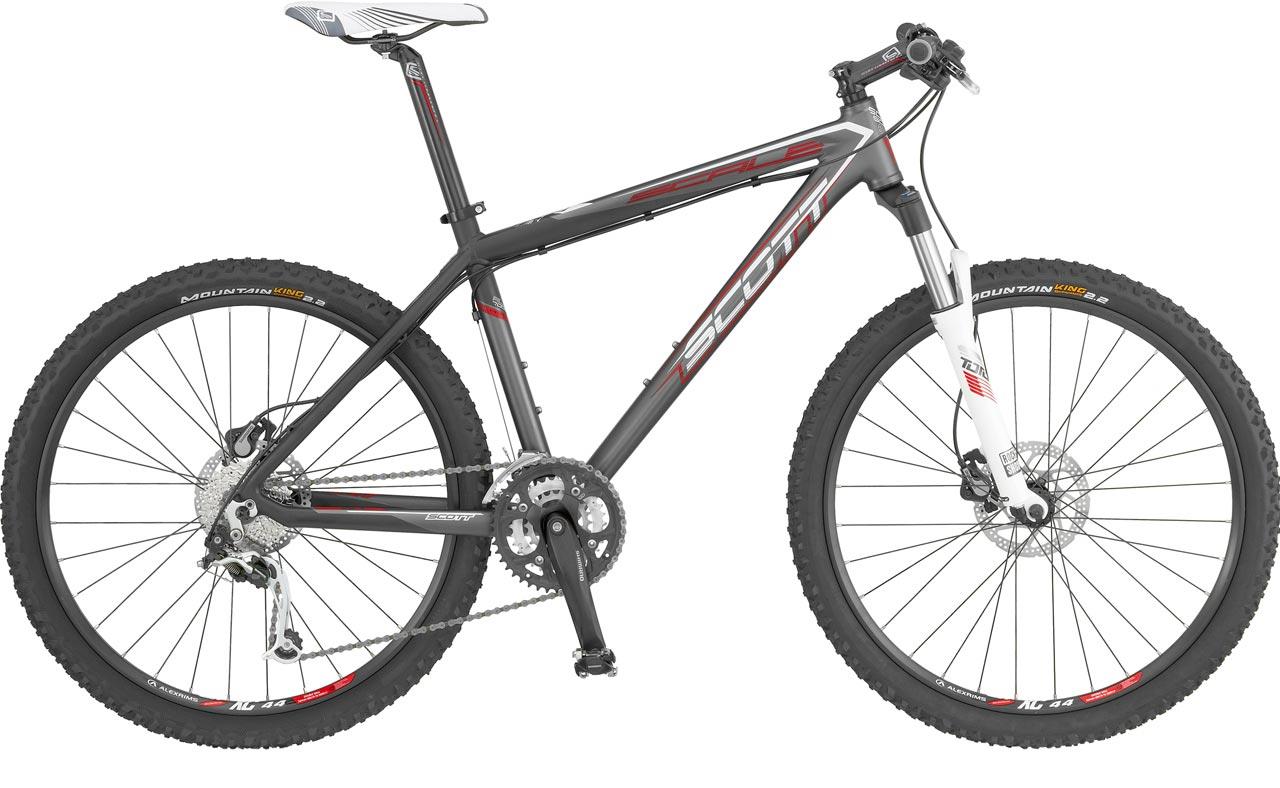

2009 Scott Scale 60
Mountain bike, front suspension bicycle from the Velopedia historical specification archive.
- Original MSRP
- $1,379.99
- Sizes
- Xsmall, small, medium, large, xlarge, xxlarge
- Colors
- Anthracite/Black/Red
- Weight
- 27.53
- Archive ID
- 17525
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | 7005 double butted hydroformed aluminum |
| Fork | RockShox Tora SL, 100mm travel |
| Fork Material | Single |
| Rear Shock | N/A |
Drivetrain
| Component Group | Shimano Deore |
|---|---|
| Shifters | Shimano Deore Rapidfire |
| Front Derailleur | Shimano Deore |
| Rear Derailleur | Shimano XT |
| Crankset | Shimano FC-M442, 22/32/44 teeth |
| Bottom Bracket | Shimano UN-26, 110mm spindle |
| BB Shell Width | 68mm |
| Cassette | Shimano HG50 |
| Rear Cogs | 9-speed, 11 - 32 teeth |
| Chain | Shimano HG53-9 |
| Pedals | Shimano PD-M505 |
Brakes
| Brakes | Shimano M486 w/160mm Rotor brakes, Shimano M486 hydraulic levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" Ritchey OE |
|---|---|
| Handlebar | Scott X-Rod |
| Handlebar Extensions | Not included |
| Stem | Scott Comp OS |
| Saddle | Scott Racing |
| Seatpost | Scott Comp, 31.6mm diameter |
Wheels & Tires
| Hubs | Front: Scott Comp Disc centerlock, Rear: Shimano RM-65 Centerlock disc |
|---|---|
| Rims | Alex XC-44 disc, 32-hole |
| Spokes | DT Swiss Champion, 15ga. (1.8mm) |
| Front Tire | 26 x 2.20" Continental Mountain King |
| Wheel Size | 26" wheels |
Historical specifications are presented as an archival reference. Component specifications may have varied by market, size, or production run.
