Velopedia Bicycle Archive

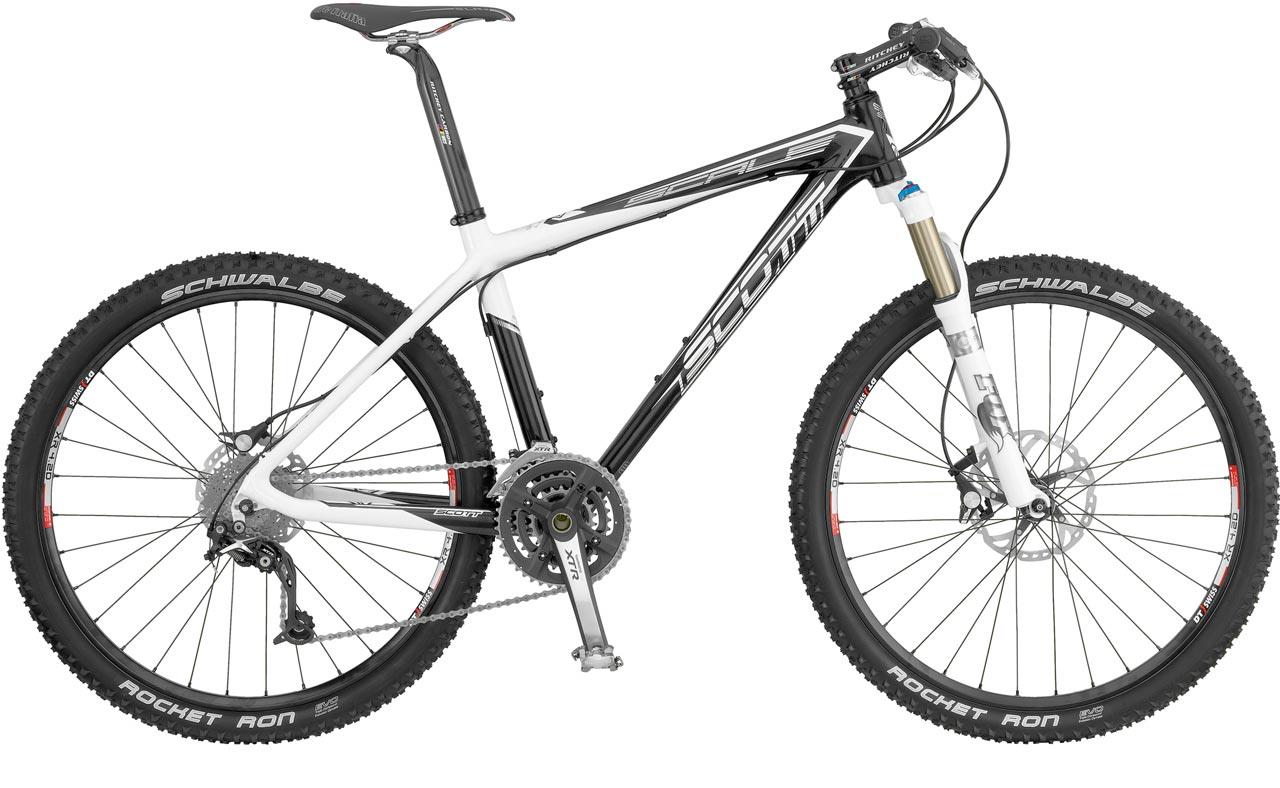

2009 Scott Scale 10
Mountain bike, front suspension bicycle from the Velopedia specification archive.
- Original MSRP
- $6,324.99
- Sizes
- Small, medium, large, xlarge
- Colors
- Carbon/White
- Weight
- 20.37
- Archive ID
- 17533
Current market
Checking current listings…Frameset
| Frame Construction | Monocoque |
|---|---|
| Frame Material | Scott CR-1/HMF Net Carbon |
| Fork | Fox 32 F100RL, 100mm travel |
| Fork Material | Magnesium/aluminum, single crown |
| Rear Shock | N/A |
Drivetrain
| Component Group | Shimano XTR |
|---|---|
| Shifters | Shimano XTR Rapid Fire |
| Front Derailleur | Shimano XTR |
| Rear Derailleur | Shimano XTR Shadow |
| Crankset | Shimano XTR HollowTech II, 22/32/44 teeth |
| Bottom Bracket | Shimano Hollowtech II |
| BB Shell Width | 73mm |
| Cassette | Shimano XTR |
| Rear Cogs | 9-speed, 11 - 32 teeth |
| Chain | Shimano HG93 |
| Pedals | Shimano PD-M540 |
Brakes
| Brakes | Shimano XTR Disc w/180mm rotor front/Shimano XTR Disc w/160mm rotor rear brakes, Shimano XTR Hydraulic levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" Ritchey Pro |
|---|---|
| Handlebar | Ritchey Carbon WCS |
| Handlebar Extensions | Not included |
| Stem | Ritchey WCS 4-Axis 44 OS |
| Saddle | Selle Italia SLR XP Kevlar |
| Seatpost | Ritchey WCS Carbon, 34.9mm diameter |
Wheels & Tires
| Hubs | Shimano XTR centerlock disc |
|---|---|
| Rims | DT Swiss 4.2 Disc, 32-hole |
| Spokes | DT Swiss Super Comp |
| Front Tire | 26 x 2.25" Schwalbe Rocket Ron |
| Wheel Size | 26" wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
