Velopedia Bicycle Archive

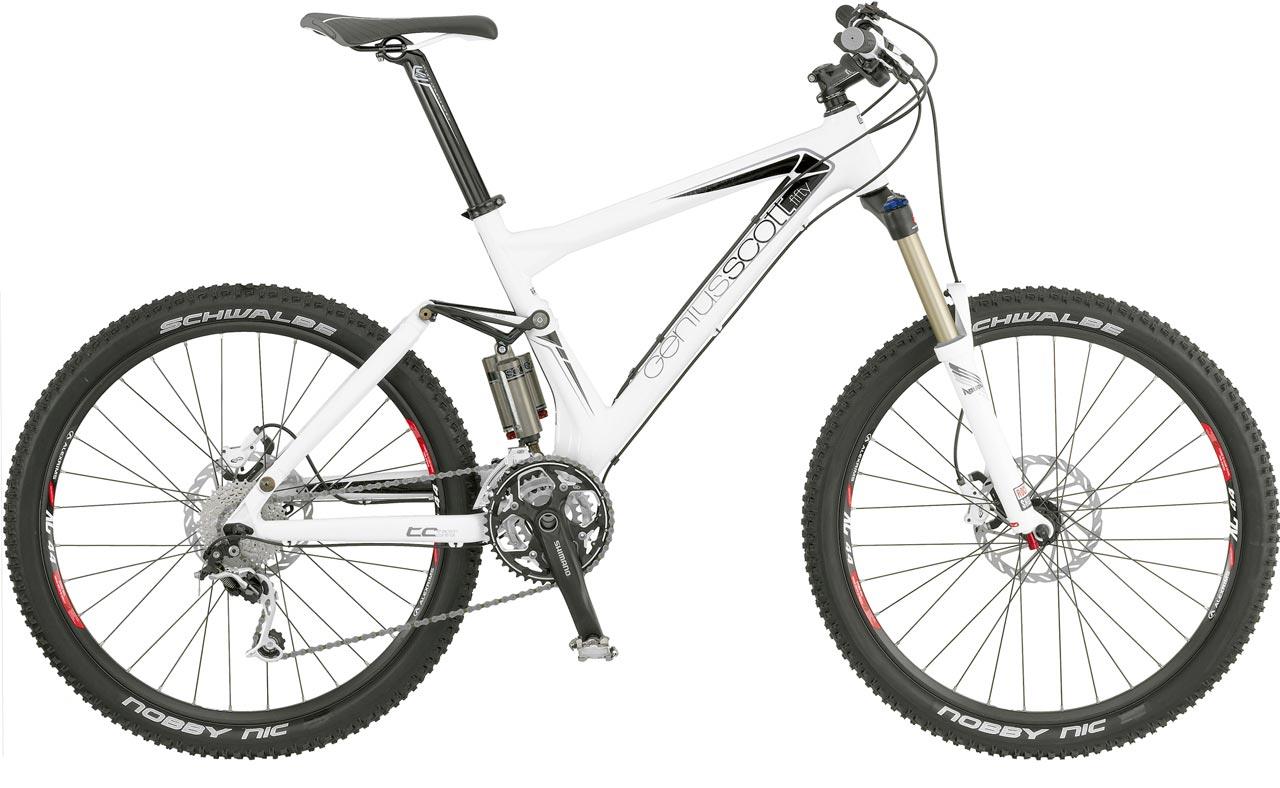

2009 Scott Genius 50
Mountain bike, front & rear suspension bicycle from the Velopedia specification archive.
- Original MSRP
- $3,449.99
- Sizes
- Small, medium, large, xlarge
- Colors
- White/Black
- Weight
- 28.41
- Archive ID
- 17518
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | 6061 Custom Butted/ Hydraformed Aluminum |
| Fork | RockShox Revelation 409 Dual Air, 140mm travel |
| Fork Material | Aluminum/magnesium, single crown |
| Rear Shock | Scott Equalizer 2, 150mm travel |
Drivetrain
| Component Group | Mountain Mix |
|---|---|
| Shifters | Shimano SL-M530 RapidFire |
| Front Derailleur | Shimano SLX, E-type |
| Rear Derailleur | Shimano XT Shadow |
| Crankset | Shimano FC-M542, 22/32/44 teeth |
| Bottom Bracket | Shimano M542 |
| BB Shell Width | 73mm |
| Cassette | Shimano HG61 |
| Rear Cogs | 9-speed, 11 - 32 teeth |
| Chain | Shimano HG-53 |
| Pedals | Shimano PD-M520 |
Brakes
| Brakes | Avid Juicy 3.5 w/185mm rotor brakes, Avid Juicy 3.5 hydraulic levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" FSA No. 9 |
|---|---|
| Handlebar | Scott Pilot 22 Comp riser |
| Handlebar Extensions | Not included |
| Stem | Scott MC Pro OS |
| Saddle | Scott Genius |
| Seatpost | Scott RC 03-60, 34.9mm diameter |
Wheels & Tires
| Hubs | Front: Scott Disc Comp, Rear: Shimano M525 disc |
|---|---|
| Rims | Alex XC-44 disc, 32-hole |
| Spokes | DT Swiss Champion, 15ga. (1.8mm) |
| Front Tire | 26 x 2.25" Schwalbe Nobby Nic |
| Wheel Size | 26" wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
