Velopedia Bicycle Archive

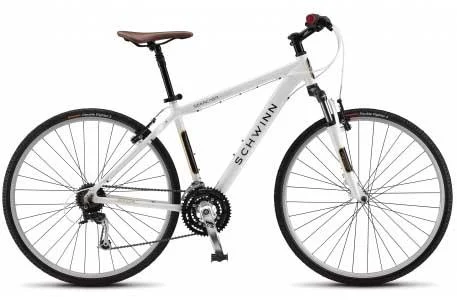

2010 Schwinn Searcher Sport
Hybrid bicycle from the Velopedia specification archive.
- Original MSRP
- $499.99
- Sizes
- Small, medium, large, xlarge
- Colors
- Black/Red
- Archive ID
- 21700
Image not yet recovered
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | Schwinn N'Litened Aluminum |
| Fork | RST Neon ML, 50mm travel |
| Fork Material | Single |
| Rear Shock | N/A |
Drivetrain
| Component Group | Hybrid Mix |
|---|---|
| Shifters | Shimano EF50 EZ-Fire |
| Front Derailleur | Shimano C201 |
| Rear Derailleur | Shimano Alivio |
| Crankset | SR Suntour XCT V2, 28/38/48 teeth |
| Bottom Bracket | Sealed cartridge JIS |
| Cassette | Shimano HG-30 |
| Rear Cogs | 8-speed, 11 - 30 teeth |
| Chain | KMC Z72 |
| Pedals | Resin body, steel cage & axle |
Brakes
| Brakes | ProMax linear-pull brakes, Shimano EF50 levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" threadless FSA Intellaset |
|---|---|
| Handlebar | 20mm rise, 6-degree bend |
| Handlebar Extensions | Not included |
| Stem | Alloy |
| Saddle | Schwinn Bio Tuned with D2 base |
| Seatpost | Alloy Suspension |
Wheels & Tires
| Hubs | KT alloy sealed mechanism QR |
|---|---|
| Rims | Alex ACE-17, 32-hole |
| Spokes | Stainless steel, 14ga. (2.0mm) |
| Front Tire | 700 x 37c Continental Double Fighter |
| Wheel Size | 700c wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
