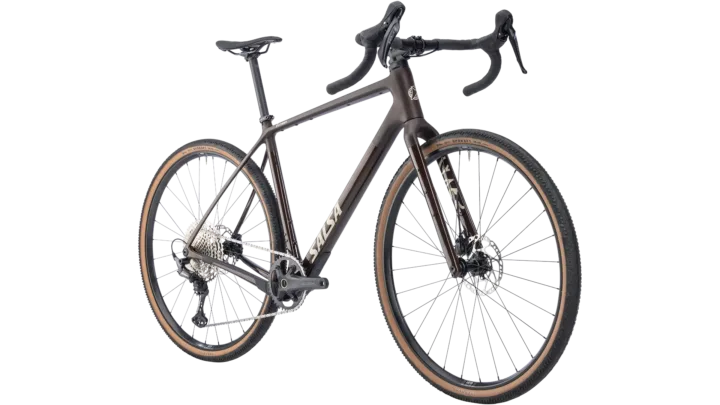

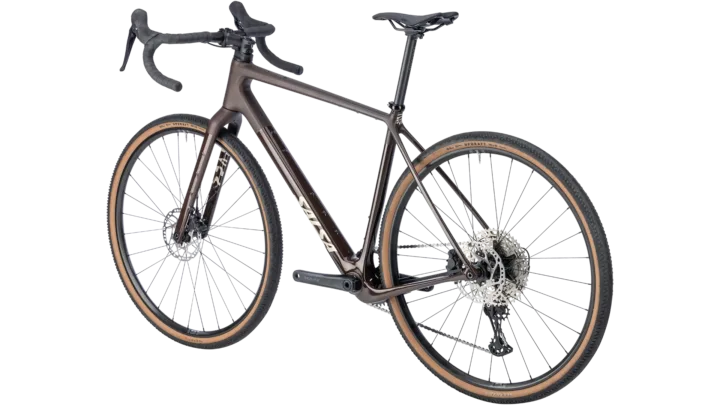

2026 Salsa Flyway C GRX 610
Cyclocross/Gravel bicycle from the Velopedia specification archive.
- Original MSRP
- $3,499.00
- Sizes
- XS, S, M, M/L, L, XL
- Colors
- Dark Umber
- Weight
- 21 lb 12 oz (size Medium/Large)
- Geometry
- 6 manufacturer sizes · Ride analysis
- Archive ID
- 900000574
Current market
Snapshot not yet availableProtected live updateReady after page interactionAutomated crawlers do not trigger marketplace requests.
Move, scroll, tap or type to start the protected update.
Velopedia analysis
What the specifications mean
The 510% cassette range describes the available gearing more clearly than the component-group name alone. Carbon construction changes the inspection emphasis from metal-style dents and corrosion to impact damage, ripples and overtightened clamp areas. 700C · 622 mm identifies the rim diameter, while tire width and available frame or fork clearance remain separate compatibility questions.
Gearing
510% cassette range
Calculated from the published 10–51-tooth sprocket span.
Frame material
Carbon / composite
Look for impact damage and clamp marks rather than metal-style dents or rust.
Wheel standard
700C · 622 mm
The label fixes rim diameter, not tire width or available frame and fork clearance.
Bottom bracket
Threaded interface
Shell width, thread standard and crank-spindle interface still require confirmation.
Used-bike inspection
If you’re buying this bike used
Before any test ride: both brakes should stop the bike firmly and release cleanly; both wheels should run true and be securely attached; tires should have no casing damage; and the headset, handlebar, stem, cranks and pedals should have no looseness or play.
Follow the full used-bike inspection order →- FrameInspect the frame in bright light, especially around the head tube, bottom bracket, chainstays and clamped areas. Look for cracks, ripples, crushed sections or signs of a previous impact.Inspect the frame and fork →
- BrakesTest each brake separately and confirm it stops firmly and releases cleanly. Inspect the pads and braking surfaces for wear or contamination, and check the cables or hoses for damage.Inspect the brakes →
- DrivetrainShift through every gear under light load and measure chain wear. Confirm that the shifter, derailleur, chain and cassette belong to the same 12-speed system.Check drivetrain wear →
- Wheels & tiresSpin both wheels and watch the rims for side-to-side or vertical movement. Check for dents, cracks, loose or uneven spokes and hub play, then inspect both tire casings for cuts, cracking or exposed threads.Check wheels and tires →
- Bottom bracketTurn the cranks slowly, feel for rough bearings and check for side-to-side play. Creaking under load deserves investigation but does not identify the source by itself.Inspect the bottom bracket and shell →
Bike-specific inspection checklist 19 checks based on 5 archived component groups Open checklistClose checklist
This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.
Identity and fit
Follow the full used-bike inspection order →Archived: 2026 Salsa Flyway C GRX 610 · Cyclocross/Gravel · Published sizes: XS, S, M, M/L, L, XL
Frame and fork
Inspect the frame and fork →Archived: Frame: Carbon fiber · Fork: Carbon fiber · Carbon Fiber
Drivetrain
Check drivetrain wear →Archived: Shifters: Shimano GRX RX610 · Rear derailleur: Shimano GRX RX822, SGS · Crankset: Shimano GRX RX610, 40t · Bottom bracket: FSA T47 Internal · Cassette: Shimano Deore M6100, 10–51t, 12-speed · Chain: Shimano Deore M6100
Brakes
Inspect the brakes →Archived: Brakes: Brake Calipers: Shimano GRX; Brake Levers: Shimano GRX RX610; Rotors: Shimano RT64 (160mm front and rear)
Wheels and tires
Check wheels and tires →Archived: Wheel size: 700C · Rims: WTB Asym i25 · Hubs: (F) Shimano TC500 12 x 100 / (R) Shimano TC500 12 x 142 · Front tire: Teravail Updraft, 700c x 45mm · Rear tire: Teravail Updraft, 700c x 45mm
Controls and contact points
Archived: Headset: FSA CRII · Handlebar: Teravail Feldspar SE · Stem: Teravail Radia · Seatpost: Teravail Stratum Carbon · Saddle: WTB Gravelier
Before and during the test ride
Follow the full used-bike inspection order →Interpretation based on the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
Have you owned this bike?Help preserve its real-world history by sharing your owner experience.
Share the details that would help another rider understand how this model fits, rides and holds up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.
Frameset
| Frame Construction | Carbon fiber |
|---|---|
| Frame Material | Carbon Fiber |
| Fork | Carbon fiber |
| Fork Material | Carbon Fiber |
Drivetrain
| Shifters | Shimano GRX RX610 |
|---|---|
| Front Derailleur | N/A |
| Rear Derailleur | Shimano GRX RX822, SGS |
| Crankset | Shimano GRX RX610, 40t |
| Bottom Bracket | FSA T47 Internal |
| Cassette | Shimano Deore M6100, 10–51t, 12-speed |
| Chain | Shimano Deore M6100 |
Brakes
| Brakes | Brake Calipers: Shimano GRX; Brake Levers: Shimano GRX RX610; Rotors: Shimano RT64 (160mm front and rear) |
|---|
Cockpit & Contact Points
| Headset | FSA CRII |
|---|---|
| Handlebar | Teravail Feldspar SE |
| Stem | Teravail Radia |
| Saddle | WTB Gravelier |
| Seatpost | Teravail Stratum Carbon |
Wheels & Tires
| Hubs | (F) Shimano TC500 12 x 100 / (R) Shimano TC500 12 x 142 |
|---|---|
| Rims | WTB Asym i25 |
| Front Tire | Teravail Updraft, 700c x 45mm |
| Rear Tire | Teravail Updraft, 700c x 45mm |
| Wheel Size | 700C |
Size-specific frame data
Geometry
Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.
| Measurement | X-Small | Small | Medium | Medium/Large | Large | X-Large |
|---|---|---|---|---|---|---|
| Seat tube | 390 mm | 430 mm | 470 mm | 505 mm | 540 mm | 575 mm |
| Effective top tube | 510 mm | 535 mm | 555 mm | 575 mm | 600 mm | 620 mm |
| Head tube | 90 mm | 100 mm | 120 mm | 145 mm | 180 mm | 200 mm |
| Head-tube angle | 70.5° | 70.5° | 70.5° | 70.5° | 70.5° | 70.5° |
| Seat-tube angle | 76° | 75° | 74° | 74° | 74° | 74° |
| Chainstay / rear center | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 1012 mm | 1027.7 mm | 1038.7 mm | 1060.2 mm | 1087.5 mm | 1108.7 mm |
| Bottom-bracket drop | 76 mm | 76 mm | 76 mm | 76 mm | 76 mm | 76 mm |
| Bottom-bracket height | 283 mm | 283 mm | 283 mm | 283 mm | 283 mm | 283 mm |
| Reach | 375.2 mm | 387.7 mm | 391.9 mm | 405.2 mm | 420.7 mm | 435.3 mm |
| Stack | 540.5 mm | 549.9 mm | 568.8 mm | 592.3 mm | 625.3 mm | 644.2 mm |
| Standover height | 682 mm | 715 mm | 749 mm | 780 mm | 814 mm | 843 mm |
| Fork offset / rake | 51 mm | 51 mm | 51 mm | 51 mm | 51 mm | 51 mm |
| Fork length / axle-to-crown | 419.9 mm | 419.9 mm | 419.9 mm | 419.9 mm | 419.9 mm | 419.9 mm |
| Crank length | 160 mm | 165 mm | 165 mm | 170 mm | 170 mm | 175 mm |
| Stem length | 60 mm | 60 mm | 70 mm | 80 mm | 90 mm | 100 mm |
Geometry source: Salsa first-party metric geometry table ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
Geometry interpretation
What this geometry means
X-Small geometry
Riding position
A 375.2 mm reach and 540.5 mm stack give this size a middle-ground gravel proportion: neither especially stretched and low nor unusually upright. A 76° seat angle puts the rider relatively forward over the bottom bracket, shortening the effective seated reach compared with a more relaxed seat angle.
Handling tendencies
A 70.5° head angle combined with a 1012 mm wheelbase points to moderate and balanced steering and chassis behavior. The longer the chassis and slacker the front end, the more the bike tends to favor composure over very quick direction changes. A 76 mm bottom-bracket drop places the rider relatively low between the wheels, which can add a settled cornering feel while reducing pedal clearance compared with a higher bottom bracket.
Archive context
The seat angle of 76° sits toward the steeper end. Its wheelbase of 1012 mm sits somewhat shorter than typical. The chainstay of 425 mm sits somewhat shorter than typical.
Small geometry
Riding position
The 387.7 mm reach and 549.9 mm stack create a relatively long, low gravel position, favoring a more performance-oriented posture over a distinctly upright one. A 75° seat angle puts the rider relatively forward over the bottom bracket, shortening the effective seated reach compared with a more relaxed seat angle.
Handling tendencies
A 70.5° head angle combined with a 1027.7 mm wheelbase points to moderate and balanced steering and chassis behavior. The longer the chassis and slacker the front end, the more the bike tends to favor composure over very quick direction changes. A 76 mm bottom-bracket drop places the rider relatively low between the wheels, which can add a settled cornering feel while reducing pedal clearance compared with a higher bottom bracket.
Archive context
The seat angle of 75° sits toward the steeper end. Its reach of 387.7 mm sits somewhat longer than typical. The chainstay of 425 mm sits somewhat shorter than typical.
Medium geometry
Riding position
A 391.9 mm reach and 568.8 mm stack give this size a middle-ground gravel proportion: neither especially stretched and low nor unusually upright.
Handling tendencies
A 70.5° head angle combined with a 1038.7 mm wheelbase points to moderate and balanced steering and chassis behavior. The longer the chassis and slacker the front end, the more the bike tends to favor composure over very quick direction changes. A 76 mm bottom-bracket drop places the rider relatively low between the wheels, which can add a settled cornering feel while reducing pedal clearance compared with a higher bottom bracket.
Archive context
The chainstay of 425 mm sits somewhat shorter than typical. Its stack of 568.8 mm sits somewhat lower than typical. The seat angle of 74° sits somewhat steeper than typical.
Medium/Large geometry
Riding position
A 405.2 mm reach and 592.3 mm stack give this size a middle-ground gravel proportion: neither especially stretched and low nor unusually upright.
Handling tendencies
A 70.5° head angle combined with a 1060.2 mm wheelbase points to moderate and balanced steering and chassis behavior. The longer the chassis and slacker the front end, the more the bike tends to favor composure over very quick direction changes. A 76 mm bottom-bracket drop places the rider relatively low between the wheels, which can add a settled cornering feel while reducing pedal clearance compared with a higher bottom bracket.
Archive context
The seat angle of 74° sits somewhat steeper than typical. Its stack of 592.3 mm sits somewhat lower than typical. The chainstay of 425 mm sits somewhat shorter than typical.
Large geometry
Riding position
A 420.7 mm reach and 625.3 mm stack give this size a middle-ground gravel proportion: neither especially stretched and low nor unusually upright.
Handling tendencies
A 70.5° head angle combined with a 1087.5 mm wheelbase points to moderate and balanced steering and chassis behavior. The longer the chassis and slacker the front end, the more the bike tends to favor composure over very quick direction changes. A 76 mm bottom-bracket drop places the rider relatively low between the wheels, which can add a settled cornering feel while reducing pedal clearance compared with a higher bottom bracket.
Archive context
Its reach of 420.7 mm sits toward the longer end. The seat angle of 74° sits somewhat steeper than typical. The chainstay of 425 mm sits somewhat shorter than typical.
X-Large geometry
Riding position
A 435.3 mm reach and 644.2 mm stack give this size a middle-ground gravel proportion: neither especially stretched and low nor unusually upright.
Handling tendencies
A 70.5° head angle combined with a 1108.7 mm wheelbase points to moderate and balanced steering and chassis behavior. The longer the chassis and slacker the front end, the more the bike tends to favor composure over very quick direction changes. A 76 mm bottom-bracket drop places the rider relatively low between the wheels, which can add a settled cornering feel while reducing pedal clearance compared with a higher bottom bracket.
Archive context
Its reach of 435.3 mm sits toward the longer end. The seat angle of 74° sits toward the steeper end. The chainstay of 425 mm sits somewhat shorter than typical.
Across the size range
From X-Small to X-Large, reach grows by 60.1 mm and stack by 103.7 mm, showing how the frame becomes both longer and taller through the published size range. The rear center stays essentially constant at about 425 mm across sizes, so most of the wheelbase growth happens in the front half of the bike rather than by lengthening the rear triangle.
Geometry describes frame proportions and likely tendencies, not a ride test. Rider proportions, cockpit setup, tires, suspension settings, wheel configuration, and component choices can materially change how a bicycle fits and feels.
Gallery
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
