Velopedia Bicycle Archive

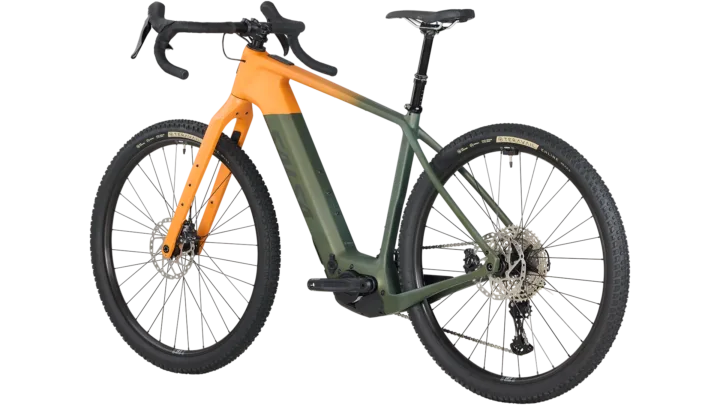

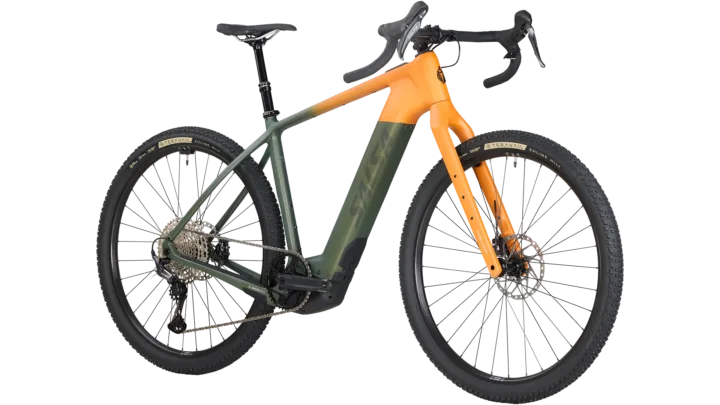

2025 Salsa Tributary C GRX 820
Original specifications: 29" wheels · 42 lb 9 oz for Medium published weight · geometry for 5 published sizes.
Selling this bike? Create a shareable bike record
At a glance
- Model year
- 2025
- Category
- Gravel & Cyclocross
- Original MSRP
- $5,499.00
- Sizes
- XS, S, M, L, XL
- Colors
- Dark Pine/Terra Orange
- Weight
- 42 lb 9 oz for Medium
- Geometry
- 5 manufacturer sizes
- In this record
- 20 specifications · 3 archived images · original MSRP · geometry
- Archive ID
- 900000636
Original buildCarbon Fiber · 29"
Frameset
| Frame Construction | Carbon |
|---|---|
| Frame Material | Carbon Fiber |
| Fork | Carbon |
| Fork Material | Carbon Fiber |
Drivetrain
| Shifters | Shimano GRX RX820 |
|---|---|
| Rear Derailleur | Shimano GRX RX822 |
| Crankset | FSA CK-762, 42t |
| Cassette | Shimano Deore M6100, 10–51t, 12-speed |
| Chain | Shimano Deore M6100 |
Brakes
| Brakes | Brake Calipers: Shimano GRX RX820; Brake Levers: Shimano GRX RX820; Rotors: Shimano RT64 |
|---|
Cockpit & Contact Points
| Headset | Acros |
|---|---|
| Handlebar | Salsa Cowchipper |
| Stem | Salsa Guide Trail |
| Saddle | WTB SL8 |
| Seatpost | TranzX dropper post, 100 mm travel |
Wheels & Tires
| Hubs | (F) Shimano TC500 15 x 110mm / (R) Shimano TC500 12 x 148mm |
|---|---|
| Rims | WTB ST i27 (taped, tubeless valves included) |
| Front Tire | Teravail Ehline 29 x 2.3″, Durable casing |
| Rear Tire | Teravail Ehline 29 x 2.3″, Durable casing |
| Wheel Size | 29" |
Geometry
Frame measurements by size.
Published frame view
Select an available measurement to locate it on the frame.
All geometry measurements5 sizes · 16 measurements
| Measurement | X-Small | Small | Medium | Large | X-Large |
|---|---|---|---|---|---|
| Seat tube | 380 mm | 405 mm | 460 mm | 500 mm | 520 mm |
| Effective top tube | 535 mm | 560 mm | 585 mm | 610 mm | 635 mm |
| Head tube | 100 mm | 100 mm | 125 mm | 145 mm | 165 mm |
| Head-tube angle | 67° | 67° | 67° | 67° | 67° |
| Seat-tube angle | 75° | 75° | 75° | 75° | 75° |
| Chainstay / rear center | 445 mm | 445 mm | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1094.4 mm | 1119.4 mm | 1148 mm | 1175.8 mm | 1203.7 mm |
| Bottom-bracket drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Bottom-bracket height | 303 mm | 303 mm | 303 mm | 303 mm | 303 mm |
| Reach | 373.7 mm | 398.7 mm | 417.6 mm | 437.6 mm | 457.7 mm |
| Stack | 601.8 mm | 601.8 mm | 624.8 mm | 643.2 mm | 661.7 mm |
| Standover height | 725.1 mm | 729.7 mm | 775 mm | 808.9 mm | 827.4 mm |
| Fork offset / rake | 51 mm | 51 mm | 51 mm | 51 mm | 51 mm |
| Fork length / axle-to-crown | 498.4 mm | 498.4 mm | 498.4 mm | 498.4 mm | 498.4 mm |
| Crank length | 165 mm | 165 mm | 170 mm | 170 mm | 170 mm |
| Stem length | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
Measurements may vary by configuration, wheel size, or frame setting where noted in the published chart.
Gearing
Lower ratios provide more mechanical advantage for climbing. Higher ratios turn the rear wheel farther with each crank revolution.
Parts & serviceability
Find replacement parts

Shimano Deore CN-M6100 Chain Silver, 12 Speed, 126 Links
12 Speed, 126 Links

Shimano Deore 12 CS-M6100 Cassette Silver, 10-51T
10-51T

Teravail Warwick Tire - 29in Black, Durable/Grip, 29x2.3
29x2.3
Replacement option · verify fit
More parts (6)

Shimano GRX RX822 12-Speed Rear Derailleur Black, GS, 1x12-Speed
GS, 1x12-Speed
Based on the original build. Confirm the model, size and fit before ordering; installed parts may differ. As an Amazon Associate I earn from qualifying purchases. Velopedia may also earn from qualifying eBay purchases. Velopedia may also earn from qualifying retailer purchases.
Bike-specific inspection checklist 24 checks based on 6 archived component groups Open checklistClose checklist
This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.
Identity and fit
Follow the full used-bike inspection order →Archived: 2025 Salsa Tributary C GRX 820 · Electric-assist · Published sizes: XS, S, M, L, XL
Frame and fork
Inspect the frame and fork →Archived: Frame: Carbon · Fork: Carbon · Carbon Fiber
Drivetrain
Check drivetrain wear →Archived: Shifters: Shimano GRX RX820 · Rear derailleur: Shimano GRX RX822 · Crankset: FSA CK-762, 42t · Cassette: Shimano Deore M6100, 10–51t, 12-speed · Chain: Shimano Deore M6100
Brakes
Inspect the brakes →Archived: Brakes: Brake Calipers: Shimano GRX RX820; Brake Levers: Shimano GRX RX820; Rotors: Shimano RT64
Wheels and tires
Check wheels and tires →Archived: Wheel size: 29" · Rims: WTB ST i27 (taped, tubeless valves included) · Hubs: (F) Shimano TC500 15 x 110mm / (R) Shimano TC500 12 x 148mm · Front tire: Teravail Ehline 29 x 2.3″, Durable casing · Rear tire: Teravail Ehline 29 x 2.3″, Durable casing
Controls and contact points
Archived: Headset: Acros · Handlebar: Salsa Cowchipper · Stem: Salsa Guide Trail · Seatpost: TranzX dropper post, 100 mm travel · Saddle: WTB SL8
E-bike system
Check the battery and electronics →Archived: Salsa Tributary C GRX 820 · electric-assist identification
Before and during the test ride
Follow the full used-bike inspection order →Have you owned this bike?Help preserve its real-world history by sharing your owner experience.
Share the details that would help another rider understand how this model fits, rides and holds up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.
Gallery3 images
Checking current listings…
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
