Velopedia Bicycle Archive
2025 Salsa Spearfish C DLX Frameset
Mountain bicycle from the Velopedia specification archive.
- Original MSRP
- $3,499.00
- Sizes
- XS, S, M, L, XL
- Colors
- Midnight Carbon
- Geometry
- 5 manufacturer sizes · Ride analysis
- Archive ID
- 900000543
Current market
Snapshot not yet availableProtected live updateReady after page interactionAutomated crawlers do not trigger marketplace requests.
Move, scroll, tap or type to start the protected update.
Used-frameset inspection
If you’re buying this frameset used
Before buying: confirm the serial number and exact model, inspect frame and fork alignment, and inventory every included axle, hanger, clamp, headset part, cable guide and proprietary fitting.
Inspect the frame and fork →- FrameInspect the frame in bright light, especially around the head tube, bottom bracket, chainstays and clamped areas. Look for cracks, ripples, crushed sections or signs of a previous impact.Inspect the frame and fork →
- Included hardwareInventory every axle, hanger, clamp, headset part, cable guide, frame plug and proprietary fitting included with the frameset. Confirm replacement availability before treating a missing small part as insignificant.
- AlignmentSight along the frame and fork from several directions. Confirm that the fork, rear dropouts, head tube and other visible interfaces appear straight; professional measurement is appropriate when alignment cannot be established visually.
Used-frameset inspection checklist 13 universal checks for a record with limited component data Open checklistClose checklist
The archived record does not contain enough component detail for a fully specification-informed frameset checklist. Use these universal checks on the frameset in front of you, inventory every included part and confirm exact interfaces before choosing components.
Identity and fit
Follow the full used-bike inspection order →Archived: 2025 Salsa Spearfish C DLX Frameset · Mountain · Published sizes: XS, S, M, L, XL
Frame and fork
Inspect the frame and fork →Archived: Frame: Carbon
Alignment
Inspect the frame and fork →Frame interfaces
Inspect the bottom bracket and shell →Before accepting the frameset
Inspect the frame and fork →Have you owned this bike?Help preserve its real-world history by sharing your owner experience.
Share the details that would help another rider understand how this model fits, rides and holds up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.
Frameset
| Frame Construction | Carbon |
|---|---|
| Frame Material | Carbon Fiber |
Drivetrain
| Crankset | MRP 1x SL TR2 28-34t Direct Mount Guide |
|---|
Cockpit & Contact Points
| Headset | FSA Orbit 1.5E ZS NO.57E |
|---|
Wheels & Tires
| Wheel Size | 29" |
|---|
Size-specific frame data
Geometry
Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.
| Measurement | X-Small | Small | Medium | Large | X-Large |
|---|---|---|---|---|---|
| Seat tube | 380 mm | 405 mm | 430 mm | 455 mm | 480 mm |
| Effective top tube | 567.8 mm | 584.9 mm | 606.9 mm | 629 mm | 651.1 mm |
| Head tube | 95 mm | 105 mm | 115 mm | 125 mm | 130 mm |
| Head-tube angle | 66.3- 66.0 | 66.3- 66.0 | 66.3- 66.0 | 66.3- 66.0 | 66.3- 66.0 |
| Seat-tube angle | 77.3- 77.0 | 77.3- 77.0 | 77.3- 77.0 | 77.3- 77.0 | 77.3- 77.0 |
| Chainstay / rear center | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1157 mm | 1176.1 mm | 1200 mm | 1224.1 mm | 1248.1 mm |
| Bottom-bracket drop | 31 mm | 31 mm | 31 mm | 31 mm | 31 mm |
| Bottom-bracket height | 342 mm | 342 mm | 342 mm | 342 mm | 342 mm |
| Reach | 435 mm | 450 mm | 470 mm | 490 mm | 510 mm |
| Stack | 589.3 mm | 598.4 mm | 607.6 mm | 616.7 mm | 625.9 mm |
| Standover height | 719.1 mm | 719.2 mm | 719.2 mm | 719.3 mm | 719.3 mm |
| Fork offset / rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Fork length / axle-to-crown | 530 mm | 530 mm | 530 mm | 530 mm | 530 mm |
Geometry source: Manufacturer HTML geometry table ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
Geometry interpretation
What this geometry means
The archived table contains multiple manufacturer geometry states. Velopedia preserves source order and analyzes each state separately rather than averaging the published values.
X-Small geometry
Configuration
Riding position
A 435 mm reach paired with 589.3 mm of stack gives this size a moderate frame proportion: roomy enough when standing without pushing strongly toward either a very low or very upright front end. Its 77.3° effective seat angle places the seated rider relatively forward, a layout that generally helps keep body weight centered on steep climbs.
Handling tendencies
A 66.3° head angle combined with a 1157 mm wheelbase points to fairly neutral for modern mountain handling steering and chassis behavior. The longer the chassis and slacker the front end, the more the bike tends to favor composure over very quick direction changes. A 430 mm rear center is compact, which tends to make rear-wheel weight shifts and tight direction changes easier than a long-rear-center layout.
Configuration changes
Compared with Configuration 2, this configuration steepens the head angle by 0.3°.
Archive context
Its reach of 435 mm sits toward the longer end. The seat angle of 77.3° sits somewhat steeper than typical. Its stack of 589.3 mm sits somewhat lower than typical.
Riding position
A 435 mm reach paired with 589.3 mm of stack gives this size a moderate frame proportion: roomy enough when standing without pushing strongly toward either a very low or very upright front end. Its 77° effective seat angle places the seated rider relatively forward, a layout that generally helps keep body weight centered on steep climbs.
Handling tendencies
A 66° head angle combined with a 1157 mm wheelbase points to stability-oriented steering and chassis behavior. The longer the chassis and slacker the front end, the more the bike tends to favor composure over very quick direction changes. A 430 mm rear center is compact, which tends to make rear-wheel weight shifts and tight direction changes easier than a long-rear-center layout.
Configuration changes
Compared with Configuration 1, this configuration slackens the head angle by 0.3°.
Archive context
Its reach of 435 mm sits toward the longer end. Its stack of 589.3 mm sits somewhat lower than typical. Its wheelbase of 1157 mm sits somewhat longer than typical.
Small geometry
Configuration
Riding position
A 450 mm reach paired with 598.4 mm of stack gives this size a moderate frame proportion: roomy enough when standing without pushing strongly toward either a very low or very upright front end. Its 77.3° effective seat angle places the seated rider relatively forward, a layout that generally helps keep body weight centered on steep climbs.
Handling tendencies
A 66.3° head angle combined with a 1176.1 mm wheelbase points to fairly neutral for modern mountain handling steering and chassis behavior. The longer the chassis and slacker the front end, the more the bike tends to favor composure over very quick direction changes. A 430 mm rear center is compact, which tends to make rear-wheel weight shifts and tight direction changes easier than a long-rear-center layout.
Configuration changes
Compared with Configuration 2, this configuration steepens the head angle by 0.3°.
Archive context
Its reach of 450 mm sits toward the longer end. Its stack of 598.4 mm sits somewhat lower than typical. The seat angle of 77.3° sits somewhat steeper than typical.
Riding position
A 450 mm reach paired with 598.4 mm of stack gives this size a moderate frame proportion: roomy enough when standing without pushing strongly toward either a very low or very upright front end. Its 77° effective seat angle places the seated rider relatively forward, a layout that generally helps keep body weight centered on steep climbs.
Handling tendencies
A 66° head angle combined with a 1176.1 mm wheelbase points to stability-oriented steering and chassis behavior. The longer the chassis and slacker the front end, the more the bike tends to favor composure over very quick direction changes. A 430 mm rear center is compact, which tends to make rear-wheel weight shifts and tight direction changes easier than a long-rear-center layout.
Configuration changes
Compared with Configuration 1, this configuration slackens the head angle by 0.3°.
Archive context
Its reach of 450 mm sits toward the longer end. Its stack of 598.4 mm sits somewhat lower than typical. The chainstay of 430 mm sits somewhat shorter than typical.
Medium geometry
Configuration
Riding position
With 470 mm of reach and 607.6 mm of stack, the frame has a relatively long, low proportion that should leave plenty of room when standing and put the front end toward the lower side of modern mountain-bike fit. Its 77.3° effective seat angle places the seated rider relatively forward, a layout that generally helps keep body weight centered on steep climbs.
Handling tendencies
A 66.3° head angle combined with a 1200 mm wheelbase points to fairly neutral for modern mountain handling steering and chassis behavior. The longer the chassis and slacker the front end, the more the bike tends to favor composure over very quick direction changes. A 430 mm rear center is compact, which tends to make rear-wheel weight shifts and tight direction changes easier than a long-rear-center layout.
Configuration changes
Compared with Configuration 2, this configuration steepens the head angle by 0.3°.
Archive context
Its reach of 470 mm sits toward the longer end. The chainstay of 430 mm sits toward the shorter rear-center end. The seat angle of 77.3° sits somewhat steeper than typical.
Riding position
With 470 mm of reach and 607.6 mm of stack, the frame has a relatively long, low proportion that should leave plenty of room when standing and put the front end toward the lower side of modern mountain-bike fit. Its 77° effective seat angle places the seated rider relatively forward, a layout that generally helps keep body weight centered on steep climbs.
Handling tendencies
A 66° head angle combined with a 1200 mm wheelbase points to stability-oriented steering and chassis behavior. The longer the chassis and slacker the front end, the more the bike tends to favor composure over very quick direction changes. A 430 mm rear center is compact, which tends to make rear-wheel weight shifts and tight direction changes easier than a long-rear-center layout.
Configuration changes
Compared with Configuration 1, this configuration slackens the head angle by 0.3°.
Archive context
Its reach of 470 mm sits toward the longer end. The chainstay of 430 mm sits toward the shorter rear-center end. Its stack of 607.6 mm sits somewhat lower than typical.
Large geometry
Configuration
Riding position
With 490 mm of reach and 616.7 mm of stack, the frame has a relatively long, low proportion that should leave plenty of room when standing and put the front end toward the lower side of modern mountain-bike fit. Its 77.3° effective seat angle places the seated rider relatively forward, a layout that generally helps keep body weight centered on steep climbs.
Handling tendencies
A 66.3° head angle combined with a 1224.1 mm wheelbase points to fairly neutral for modern mountain handling steering and chassis behavior. The longer the chassis and slacker the front end, the more the bike tends to favor composure over very quick direction changes. A 430 mm rear center is compact, which tends to make rear-wheel weight shifts and tight direction changes easier than a long-rear-center layout.
Configuration changes
Compared with Configuration 2, this configuration steepens the head angle by 0.3°.
Archive context
Its reach of 490 mm sits toward the longer end. The chainstay of 430 mm sits toward the shorter rear-center end. The seat angle of 77.3° sits toward the steeper end.
Riding position
With 490 mm of reach and 616.7 mm of stack, the frame has a relatively long, low proportion that should leave plenty of room when standing and put the front end toward the lower side of modern mountain-bike fit. Its 77° effective seat angle places the seated rider relatively forward, a layout that generally helps keep body weight centered on steep climbs.
Handling tendencies
A 66° head angle combined with a 1224.1 mm wheelbase points to stability-oriented steering and chassis behavior. The longer the chassis and slacker the front end, the more the bike tends to favor composure over very quick direction changes. A 430 mm rear center is compact, which tends to make rear-wheel weight shifts and tight direction changes easier than a long-rear-center layout.
Configuration changes
Compared with Configuration 1, this configuration slackens the head angle by 0.3°.
Archive context
Its reach of 490 mm sits toward the longer end. The chainstay of 430 mm sits toward the shorter rear-center end. Its stack of 616.7 mm sits somewhat lower than typical.
X-Large geometry
Configuration
Riding position
With 510 mm of reach and 625.9 mm of stack, the frame has a relatively long, low proportion that should leave plenty of room when standing and put the front end toward the lower side of modern mountain-bike fit. Its 77.3° effective seat angle places the seated rider relatively forward, a layout that generally helps keep body weight centered on steep climbs.
Handling tendencies
A 66.3° head angle combined with a 1248.1 mm wheelbase points to fairly neutral for modern mountain handling steering and chassis behavior. The longer the chassis and slacker the front end, the more the bike tends to favor composure over very quick direction changes. A 430 mm rear center is compact, which tends to make rear-wheel weight shifts and tight direction changes easier than a long-rear-center layout.
Configuration changes
Compared with Configuration 2, this configuration steepens the head angle by 0.3°.
Archive context
Its stack of 625.9 mm sits toward the lower end. The chainstay of 430 mm sits toward the shorter rear-center end. The seat angle of 77.3° sits somewhat steeper than typical.
Riding position
With 510 mm of reach and 625.9 mm of stack, the frame has a relatively long, low proportion that should leave plenty of room when standing and put the front end toward the lower side of modern mountain-bike fit. Its 77° effective seat angle places the seated rider relatively forward, a layout that generally helps keep body weight centered on steep climbs.
Handling tendencies
A 66° head angle combined with a 1248.1 mm wheelbase points to stability-oriented steering and chassis behavior. The longer the chassis and slacker the front end, the more the bike tends to favor composure over very quick direction changes. A 430 mm rear center is compact, which tends to make rear-wheel weight shifts and tight direction changes easier than a long-rear-center layout.
Configuration changes
Compared with Configuration 1, this configuration slackens the head angle by 0.3°.
Archive context
Its stack of 625.9 mm sits toward the lower end. The chainstay of 430 mm sits toward the shorter rear-center end. Its wheelbase of 1248.1 mm sits somewhat shorter than typical.
Geometry describes frame proportions and likely tendencies, not a ride test. Rider proportions, cockpit setup, tires, suspension settings, wheel configuration, and component choices can materially change how a bicycle fits and feels.

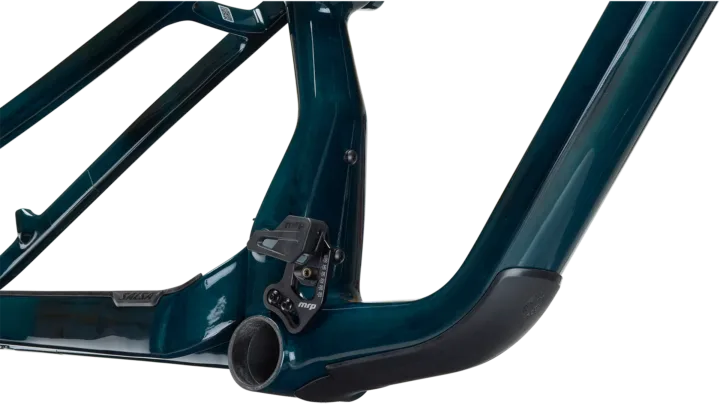

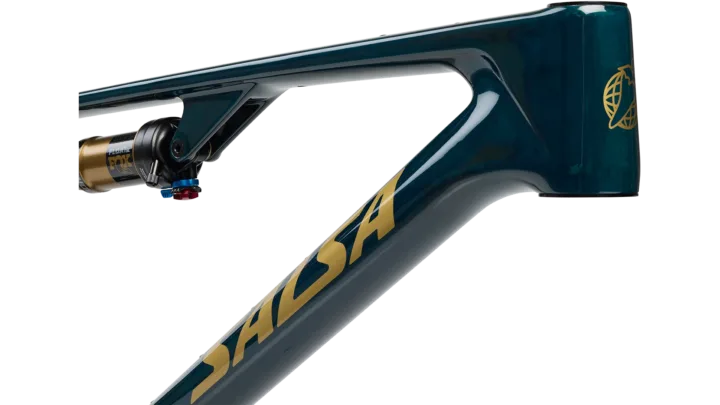

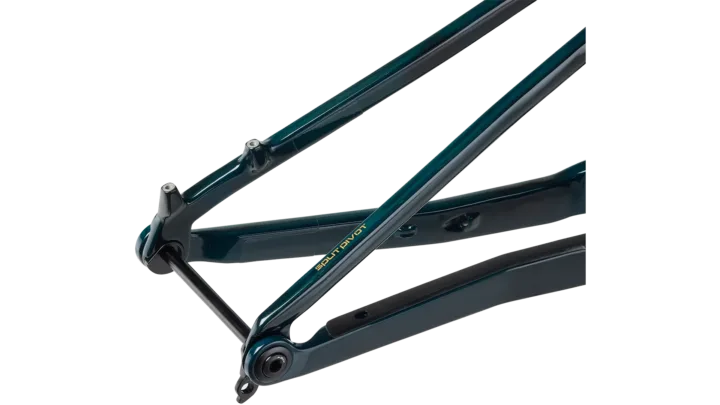

Gallery
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
