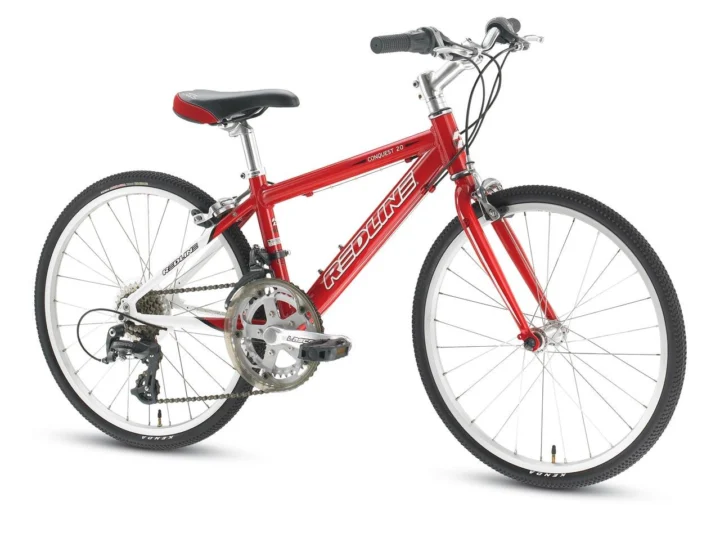

2011 Redline Conquest 20
Cyclocross bicycle from the Velopedia specification archive.
- Original MSRP
- $0.00
- Sizes
- One size
- Colors
- Blue
- Archive ID
- 25599
Frameset
| Frame Construction | Aluminum |
|---|
| Frame Material | 6061 Alloy |
|---|
| Fork | Redline |
|---|
| Fork Material | Hi Ten |
|---|
| Rear Shock | N/A |
|---|
Drivetrain
| Component Group | Cyclocross Mix |
|---|
| Shifters | SRAM MRX Twist |
|---|
| Front Derailleur | Shimano TZ31, clamp on 31.8mm |
|---|
| Rear Derailleur | Shimano 2300 |
|---|
| Crankset | Alloy, 34/48t teeth |
|---|
| Bottom Bracket | Square Taper, 110mm spindle |
|---|
| BB Shell Width | 68mm |
|---|
| Cassette | Shimano |
|---|
| Rear Cogs | 7-speed, 13 - 28 teeth |
|---|
| Pedals | Resin Caged |
|---|
Brakes
| Brakes | Alloy Dual Pivot brakes, Tektro levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" steel |
|---|
| Handlebar | Steel 500mm |
|---|
| Handlebar Extensions | Not included |
|---|
| Stem | Alloy 80mm |
|---|
| Saddle | Redline Team |
|---|
| Seatpost | Alloy, 27.2mm diameter |
|---|
Wheels & Tires
| Hubs | Alloy nutted |
|---|
| Rims | Alex, 28-hole |
|---|
| Spokes | Stainless, 14ga. (2.0mm) |
|---|
| Spoke Nipples | Brass |
|---|
| Front Tire | 20 x 1 1/8" Kenda Small Block 8 |
|---|
| Wheel Size | 20" wheels |
|---|
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
