Velopedia Bicycle Archive

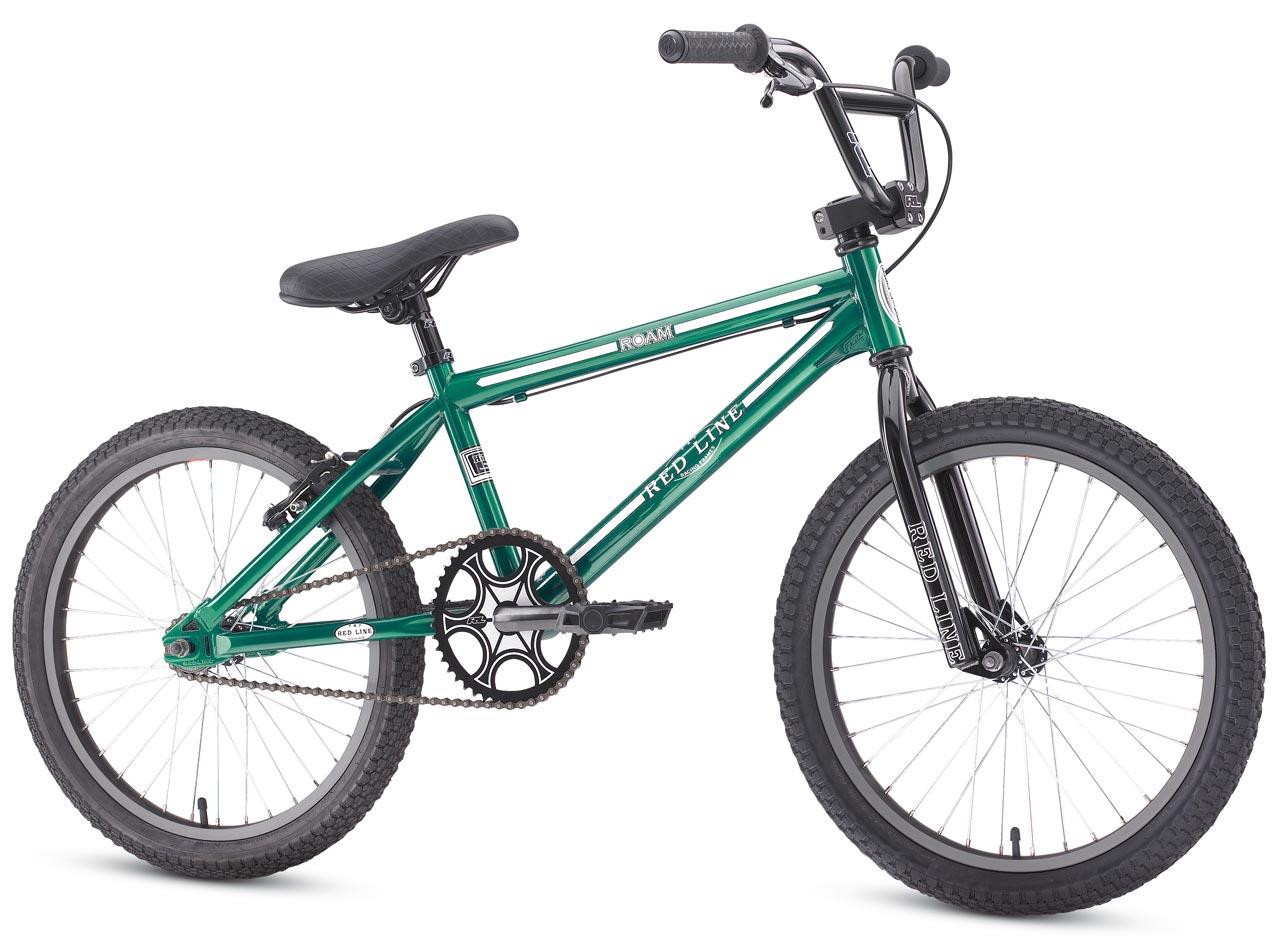

2009 Redline Roam
BMX bicycle from the Velopedia historical specification archive.
- Original MSRP
- $0.00
- Colors
- Black, Green
- Weight
- 27.3
- Archive ID
- 15941
Frameset
| Frame Construction | TIG-welded |
|---|
| Frame Material | Hi-tensile steel |
|---|
| Fork | Redline |
|---|
| Fork Material | Hi-tensile steel |
|---|
| Rear Shock | N/A |
|---|
Drivetrain
| Component Group | BMX |
|---|
| Shifters | N/A |
|---|
| Front Derailleur | N/A |
|---|
| Rear Derailleur | N/A |
|---|
| Crankset | Redline OPC, 44 teeth |
|---|
| Bottom Bracket | VP Threadless |
|---|
| Cassette | Freewheel |
|---|
| Rear Cogs | 1-speed, 16 teeth |
|---|
| Chain | KMC Z410, 1/2 x 1/8" |
|---|
| Pedals | Redline Resin |
|---|
Brakes
| Brakes | ProMax SBV-295C V-type rear brakes, ProMax SBL-317C rear levers |
|---|
Cockpit & Contact Points
| Headset | VP threadless |
|---|
| Handlebar | Redline Hi-Ten |
|---|
| Handlebar Extensions | Not included |
|---|
| Stem | Redline Proline |
|---|
| Saddle | Redline T-n-T Race |
|---|
| Seatpost | Steel, 25.4mm diameter |
|---|
Wheels & Tires
| Hubs | Redline |
|---|
| Rims | Alex C-303, 36-hole |
|---|
| Front Tire | Front: 20 x 2.125" Kenda K-Rad, Rear: 20 x 1.75" Kenda K-Rad |
|---|
| Wheel Size | 20" wheels |
|---|
Historical specifications are presented as an archival reference. Component specifications may have varied by market, size, or production run.
