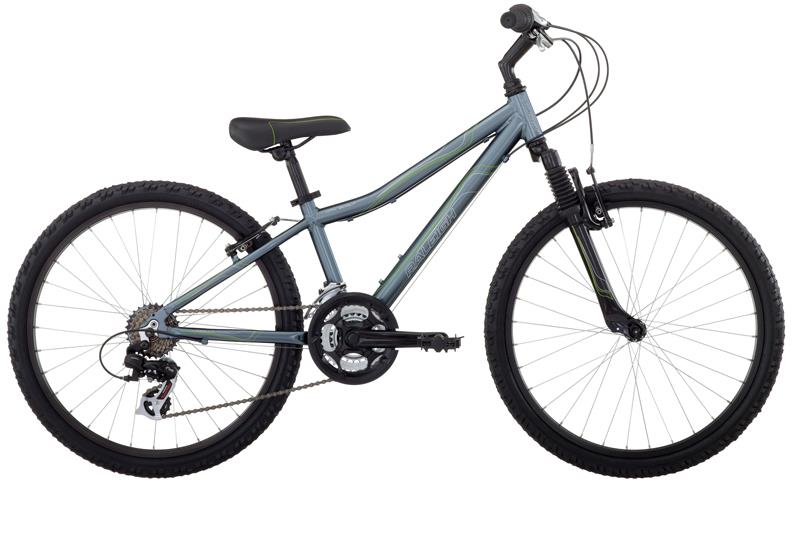

2010 Raleigh MTN Scout
Juvenile mountain bike, suspension bicycle from the Velopedia specification archive.
- Original MSRP
- $0.00
- Sizes
- 24" Boys
- Colors
- Dark Silver
- Archive ID
- 21057
Current market
Checking current listings…Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | Aluminum |
| Fork | CS MA 135 Suspension |
| Fork Material | Single |
| Rear Shock | N/A |
Drivetrain
| Component Group | Mountain Mix |
|---|---|
| Shifters | Shimano SL-RS41 Revo Twist |
| Front Derailleur | Shimano C50 |
| Rear Derailleur | Shimano TZ-50 |
| Crankset | Pro Wheel, 24/34/42 teeth |
| Bottom Bracket | Sealed Mech Loose Ball |
| Cassette | Shimano TZ07 |
| Rear Cogs | 7-speed, 14 - 28 teeth |
| Chain | KMC Z51 |
| Pedals | Resin platform |
Brakes
| Brakes | ProMax Alloy V-Brake brakes, Promax Jr. V-brake levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" threaded |
|---|---|
| Handlebar | Steel riser |
| Handlebar Extensions | Not included |
| Stem | Alloy 4-bolt Quill |
| Saddle | Raleigh Jr. Mtn |
| Seatpost | Alloy Pillar, 27.2mm diameter |
Wheels & Tires
| Hubs | Front: Alloy QR, Rear: Steel Nutted Freewheel |
|---|---|
| Rims | Alloy R1000, 32-hole |
| Spokes | 14ga. (2.0mm) |
| Front Tire | 24" MTB |
| Wheel Size | 24" wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
