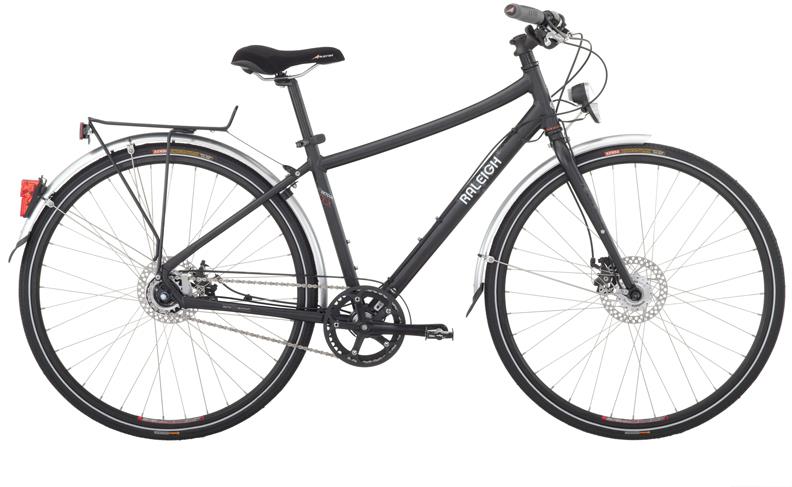

2010 Raleigh Detour Deluxe

Archived: 2010 Raleigh Detour Deluxe · City/commuter · Published sizes: 15", 17", 19", 21", 23"

• Confirm the frame markings and seller description match this archived model. Note every component that differs from the published build.
• Record the frame serial number. It should be legible, unaltered and consistent with the seller’s ownership history.
• Find the size marking on the bicycle and confirm the fit before judging the condition or price.

Archived: Frame: TIG-welded · Fork: Hybrid · Chromo, unicrown crown

• Look for dents or shape changes and inspect the edges of welds around the head tube, bottom bracket, seat cluster and suspension mounts for hairline cracks.
• Stand behind and in front of the bicycle to look for obvious frame, fork or wheel misalignment. Ask directly about crashes, transport damage and repairs.
• Inspect the fork crown, blades, dropouts and visible steerer area. Check that it is straight, securely installed and free of cracks or impact damage.

Archived: Group: Hybrid Mix · Shifters: Shimano Alivio · Crankset: Forged aluminum, 42 teeth · Bottom bracket: Sealed cartridge · Cassette: Shimano Alfine · Rear cogs: 8-speed internal, 20 teeth · Chain: KMC Z82

• Shift the hub through its complete range using the correct procedure. Check cable or electronic actuation, axle security, hub-shell condition and any sign of lubricant leakage.
• Measure chain wear with a compatible gauge and inspect chainring, cassette or freewheel teeth. A new chain does not rule out wear in the remaining drivetrain.
• Turn the cranks slowly, feel for rough bearings and check for side-to-side play. Inspect crank arms, chainring bolts and pedal threads for looseness or damage.

Archived: Brakes: Tektro Novela Mechanical Disc 160mm Rotor brakes, Tektro Comfort Alloy levers

• Check both cables and housings for corrosion, fraying or drag. Confirm each caliper releases cleanly, then inspect pad thickness, rotor wear and rotor alignment.
• Before riding, test every installed brake separately at walking speed. Each should stop firmly and release cleanly without its control reaching the end of its usable travel.

Archived: Wheel size: 700c wheels · Rims: Weinmann XC-260, 36-hole · Hubs: Front: Shimano DH3D Dynamo Disc QR, Rear: Shimano Alfine 8-speed intenal · Front tire: 700 x 35c Kenda K1053 w/Ksheild and Reflective Sides

• Spin both wheels and watch for side-to-side and vertical movement. Check spoke tension, rim condition and hub play.
• Inspect both tire casings for cuts, cracking, plugs, bulges or exposed threads and confirm the installed sizes are safe for the rims and available frame and fork clearance.
• Remove and reinstall or closely inspect both wheel-retention systems. Axles or quick releases should tighten correctly with undamaged threads, hardware and dropouts.

Archived: Headset: 1 1/8" threadless · Handlebar: Alloy Curve · Stem: 2D Forged 17d rise · Seatpost: Alloy Micro Adjust, 27.2mm diameter · Saddle: Avenir Comfy Sport · Pedals: Wellgo M21, Alloy Body/Cage

• Apply the front brake and rock the bike to check for headset play or notchiness. Inspect the stem, handlebar and clamp zones, then confirm every fastener and control is secure.
• Check that the seatpost moves for adjustment and that the saddle, post and clamp hold securely without cracks, severe corrosion or damaged hardware.

• Before riding, confirm both wheels are secure, tires are safe, both brakes function, and the headset, handlebar, stem, cranks and pedals have no looseness.
• Begin at low speed. Test steering, braking and shifting progressively, then load the drivetrain and suspension only after the basic safety checks pass.
• Listen and feel for repeated knocks, grinding, skipping, brake pulsation or movement at joints. Stop the test if the bicycle cannot be controlled safely.
