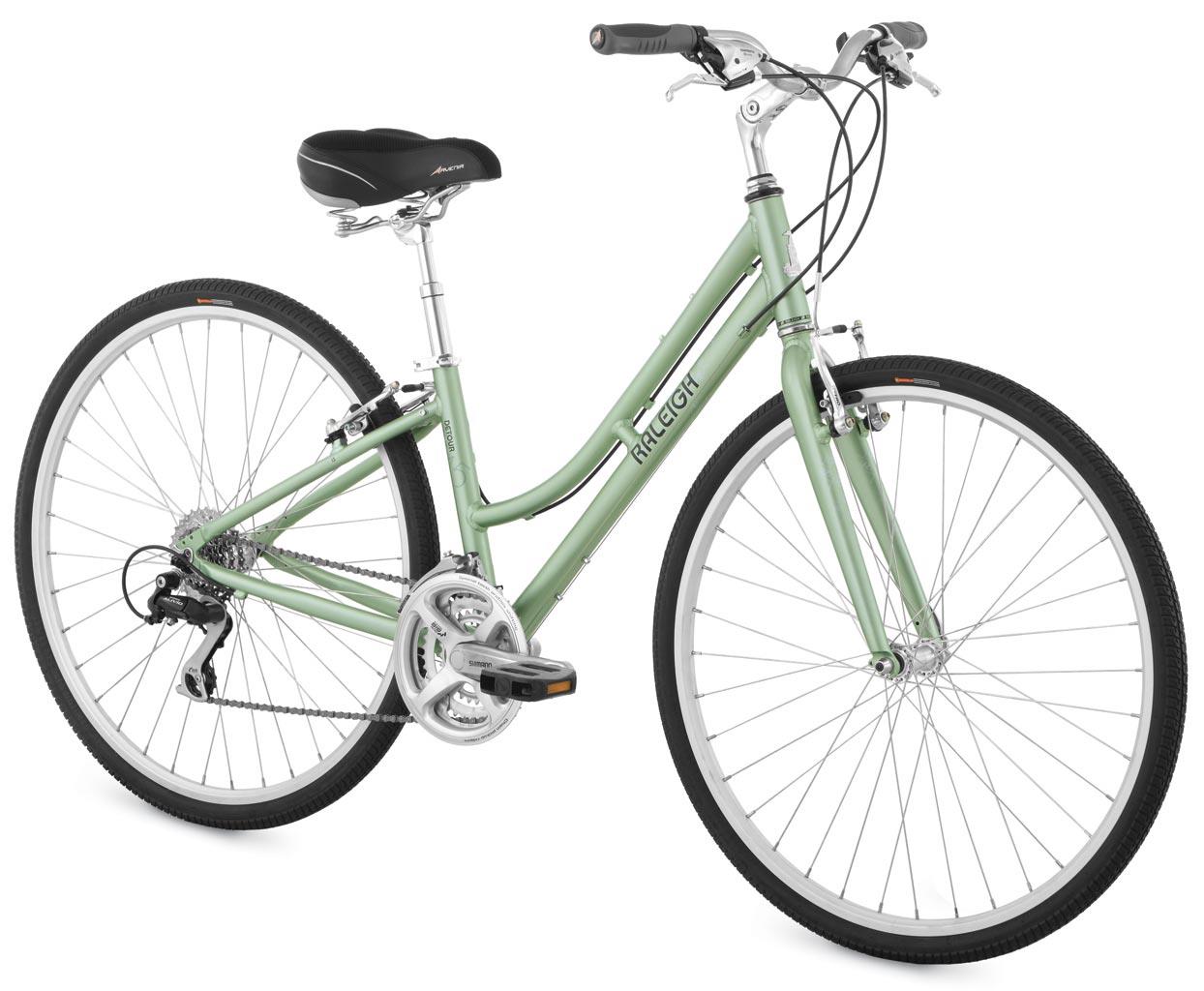

2009 Raleigh Detour 4.5 Woman's
Hybrid bicycle from the Velopedia specification archive.
- Original MSRP
- $450.00
- Sizes
- Womens 16", womens 19"
- Colors
- Matte Light Green
- Archive ID
- 18284
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | Atomic 13 Aluminum |
| Fork | Raleigh |
| Fork Material | Alloy, unicrown crown |
| Rear Shock | N/A |
Drivetrain
| Component Group | Hybrid Mix |
|---|---|
| Shifters | Shimano EF-50 |
| Front Derailleur | Shimano C51 |
| Rear Derailleur | Shimano Alivio |
| Crankset | Shimano FC-M191, 28/38/48 teeth |
| Bottom Bracket | Sealed cartridge |
| Cassette | SRAM PG-830 |
| Rear Cogs | 8-speed, 11 - 32 teeth |
| Chain | KMC HG40, 1/2 x 3/32" |
| Pedals | Avenir Comfort Platform |
Brakes
| Brakes | Tektro V-brake brakes, Shimano EF-50 levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" threaded Threaded |
|---|---|
| Handlebar | Steel 50mm rise |
| Handlebar Extensions | Not included |
| Stem | Alloy Adjustable Quill |
| Saddle | Avenir Deluxe Comfort |
| Seatpost | Bootless Suspension, 27.2mm diameter |
Wheels & Tires
| Hubs | Front: Joytech Alloy QR, Rear: Shimano RM30 |
|---|---|
| Rims | Weinmann XM-260, 36-hole |
| Spokes | Stainless, 14ga. (2.0mm) |
| Front Tire | 700 x 35c Kenda K-192 w/K-shield |
| Wheel Size | 700c wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
