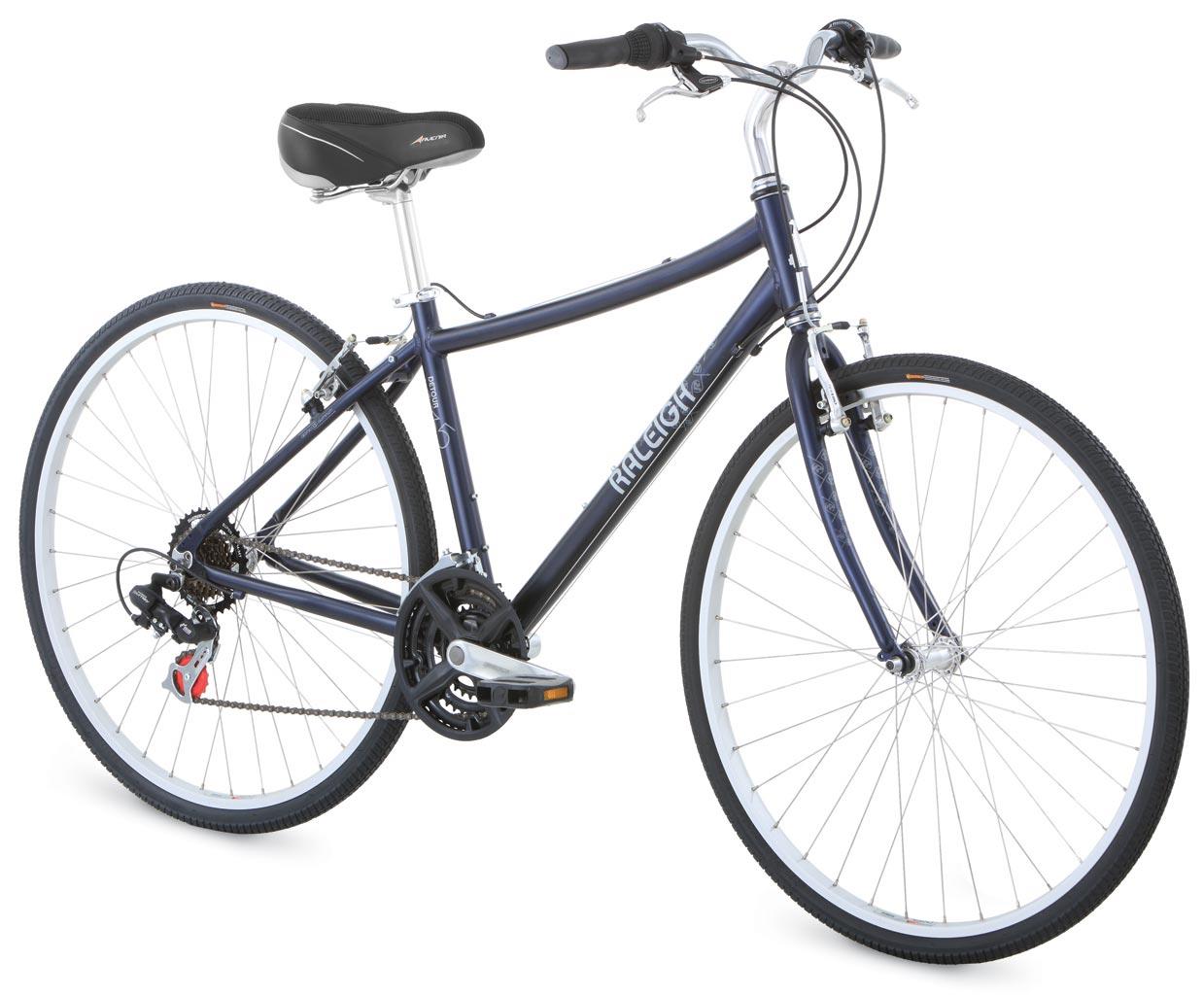

2009 Raleigh Detour 3.5
Hybrid bicycle from the Velopedia specification archive.
- Original MSRP
- $330.00
- Sizes
- 15", 17", 19", 21", 23"
- Colors
- Matte Navy
- Archive ID
- 18285
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | Atomic 13 Aluminum |
| Fork | Raleigh |
| Fork Material | Steel, unicrown crown |
| Rear Shock | N/A |
Drivetrain
| Component Group | Hybrid Mix |
|---|---|
| Shifters | Shimano SL-RS31 |
| Front Derailleur | Shimano C51 |
| Rear Derailleur | Shimano TX-31 |
| Crankset | SR Suntour XCC-T208, 28/38/48 teeth |
| Bottom Bracket | Sealed cartridge |
| Cassette | Shimano MF-TZ31 |
| Rear Cogs | 7-speed, 14 - 34 teeth |
| Chain | KMC Z51, 1/2 x 3/32" |
| Pedals | Avenir Comfort Platform |
Brakes
| Brakes | Tektro V-brake brakes, Tektro levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" threaded Threaded |
|---|---|
| Handlebar | Steel 50mm rise |
| Handlebar Extensions | Not included |
| Stem | Alloy Quill |
| Saddle | Avenir Comfort |
| Seatpost | Alloy Micro Adjust, 27.2mm diameter |
Wheels & Tires
| Hubs | Joytech Alloy QR |
|---|---|
| Rims | Weinmann CN520, 36-hole |
| Spokes | Stainless, 14ga. (2.0mm) |
| Front Tire | 700 x 35c Kenda K-192 w/K-shield |
| Wheel Size | 700c wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
