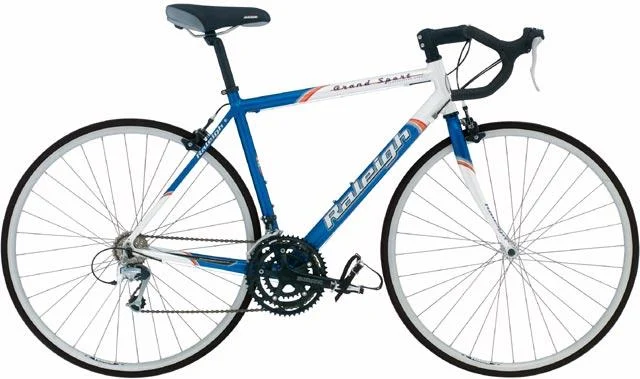

2003 Raleigh Grand Sport

Road/sport bicycle from the Velopedia specification archive.

Original MSRP
$549.99
Sizes
Large, medium, small, xlarge
Colors
White/Blue
Archive ID
39012

Current market

Checking current listings…

Frameset

Frame ConstructionTIG-welded
Frame Material7005 aluminum
ForkRaleigh
Fork MaterialHi-tensile steel, unicrown crown
Rear ShockN/A

Drivetrain

Component GroupRoad Mix
ShiftersShimano Sora STI Dual Control
Front DerailleurShimano FD-R443, bottom-pull/clamp-on 31.8mm
Rear DerailleurShimano Sora GS
CranksetShimano FC-2203, 30/42/52 teeth
Bottom BracketCartridge
BB Shell Width68mm English
Rear Cogs8-speed, 12 - 25 teeth
ChainKMC HG-50, 1/2 x 3/32"
PedalsWellgo aluminum

Brakes

BrakesTektro dual pivot brakes, Shimano Sora STI Dual Control levers

Cockpit & Contact Points

Headset1 1/8" threadless steel
HandlebarAluminum drop bar
Handlebar ExtensionsNot included
StemAluminum threadless
SaddleAvenir
SeatpostAluminum micro-adjust, 27.2mm diameter

Wheels & Tires

HubsFront: Shimano HB-2200, Rear: Shimano FH-2200
RimsFemco semi-aero, 32-hole
SpokesStainless steel, 14ga. (2.0mm) straight gauge
Spoke NipplesBrass nipples
Front Tire700 x 25c Kenda K-152
Wheel Size700c wheels
