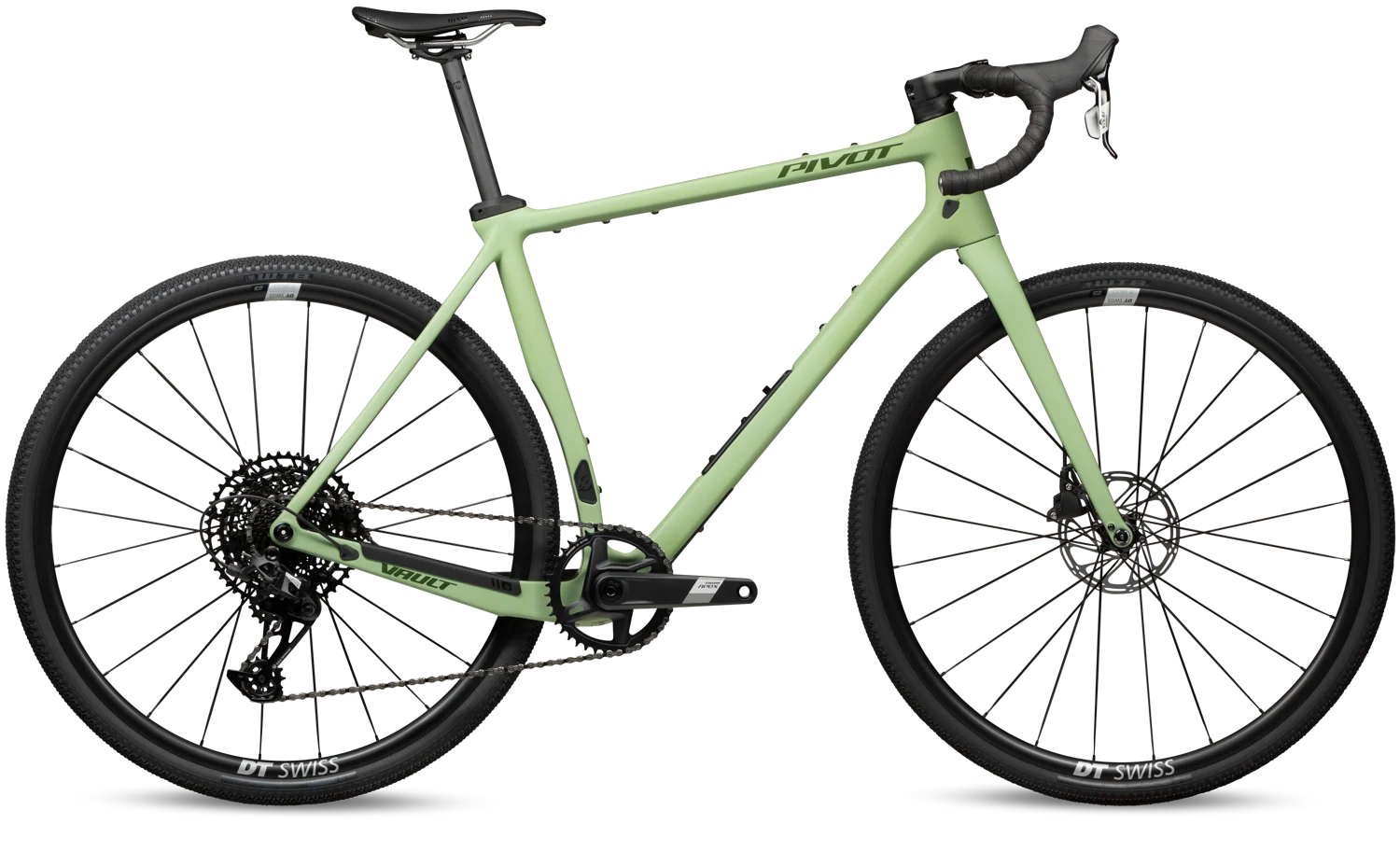

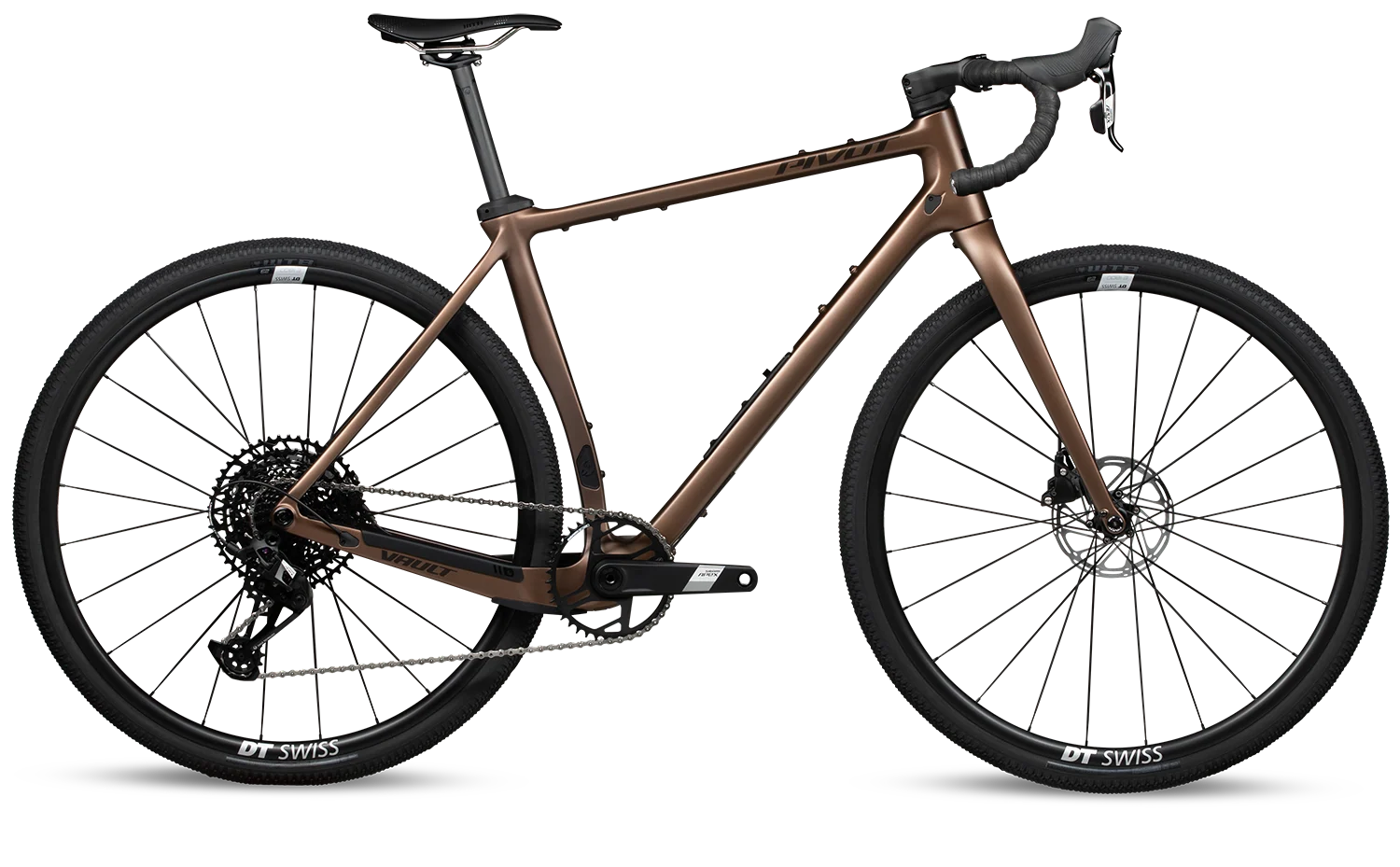

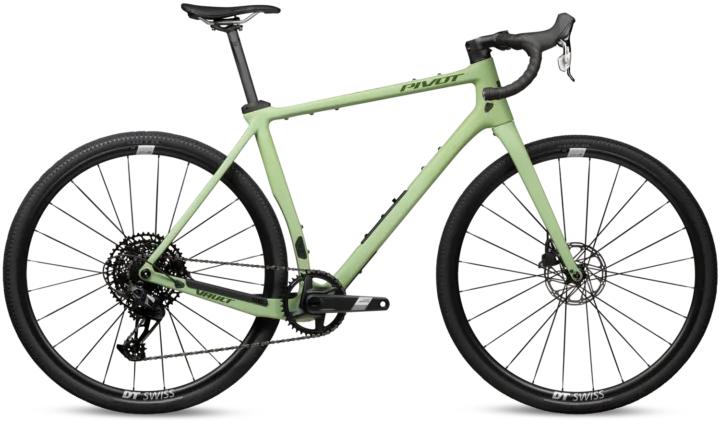

2026 Pivot Vault Pro Apex
Original manufacturer specifications including Pro Apex drivetrain, 700C wheels, geometry for 6 published sizes.
Selling this bike? Create a shareable bike record
What Velopedia knows
- Model year
- 2026
- Category
- Gravel & Cyclocross
- Original MSRP
- $4,199.00
- Sizes
- XXS, XS, S, M, L, XL
- Colors
- Copper Comet, Mossy Forest, Stealth
- Geometry
- 6 manufacturer sizes · Geometry context
- Record coverage
- 18 preserved details · 3 archived images · original MSRP · preserved geometry
- Archive ID
- 900000137
Frameset
| Frame Construction | Vault — Ultra-Light Hollow Core carbon frame |
|---|---|
| Frame Material | Carbon Fiber |
| Fork | Pivot Vault Carbon |
| Fork Material | Carbon Fiber |
Drivetrain
| Component Group | Pro Apex |
|---|---|
| Shifters | SRAM Apex 12-Speed |
| Rear Derailleur | SRAM Apex Eagle 12-Speed |
| Crankset | SRAM Apex 1 Wide DUB 40t |
| Cassette | SRAM PG-1230 11-50T |
| Chain | SRAM GX Eagle 12-Speed |
Brakes
| Brakes | SRAM Apex 2-piston; Rotors: Sram Centerline CenterLock - 160mm Sram Centerline CenterLock - 160mm |
|---|
Cockpit & Contact Points
| Headset | FSA No. 80 CR II Headset |
|---|---|
| Handlebar | Phoenix Ride Gravel Aluminum - 40cm (XXS-XS), 42cm (SM), 44cm (MD-LG), 46cm (XL) |
| Stem | FSA SMR-II Stem 31.8mm- 60mm(XXS-XS), 70mm(SM-MD), 80mm(LG), 90mm(XL) |
| Saddle | WTB Gravelier - Chromoly Rail |
| Seatpost | Phoenix Pro ISO Flex Carbon |
Wheels & Tires
| Wheels | DT Swiss ER 1600 Spline 23mm - 700C 12x100 F/12x142 R |
|---|---|
| Wheel Size | 700C |
Size-specific frame data
Geometry
Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.
| Measurement | XXS | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|---|
| Seat tube | 390 mm | 430 mm | 480 mm | 500 mm | 520 mm | 540 mm |
| Effective top tube | 502 mm | 536 mm | 555 mm | 586 mm | 600 mm | 620 mm |
| Head tube | 85 mm | 110 mm | 125 mm | 150 mm | 165 mm | 200 mm |
| Head-tube angle | 69° | 70° | 70.4° | 70.7° | 70.8° | 71° |
| Seat-tube angle | 75° | 74.3° | 73.8° | 73° | 73° | 73° |
| Chainstay / rear center | 420 mm | 420 mm | 420 mm | 420 mm | 420 mm | 420 mm |
| Wheelbase | 1000 mm | 1021 mm | 1034 mm | 1054 mm | 1069 mm | 1088 mm |
| Bottom-bracket drop | 80 mm | 78 mm | 76 mm | 75 mm | 73 mm | 73 mm |
| Bottom-bracket height | 271 mm | 273 mm | 275 mm | 276 mm | 278 mm | 278 mm |
| Reach | 360 mm | 380 mm | 390 mm | 405 mm | 415 mm | 425 mm |
| Stack | 529 mm | 554 mm | 568 mm | 592 mm | 605 mm | 639 mm |
| Standover height | 666 mm | 708 mm | 750 mm | 772 mm | 791 mm | 815 mm |
| Trail | 79 mm | 72 mm | 69 mm | 68 mm | 67 mm | 66 mm |
Geometry source: Pivot first-party geometry metafield ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
Geometry tools
Analyze a published size
XXS geometry
Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze XXS geometry XS geometry
Archive context: The chainstay of 420 mm sits toward the shorter rear-center end. Its trail of 72 mm sits somewhat lower than typical. Its stack of 554 mm sits somewhat taller than typical.
Compared with 37 distinct cyclocross/gravel geometries in the XS-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze XS geometry SM geometry
Archive context: The chainstay of 420 mm sits toward the shorter rear-center end. Its reach of 390 mm sits toward the longer end. The seat angle of 73.8° sits somewhat more relaxed than typical.
Compared with 84 distinct cyclocross/gravel geometries in the Small-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze SM geometry MD geometry
Archive context: The chainstay of 420 mm sits toward the shorter rear-center end. Its reach of 405 mm sits toward the longer end. The seat angle of 73° sits toward the more relaxed end.
Compared with 96 distinct cyclocross/gravel geometries in the Medium-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze MD geometry LG geometry
Archive context: The chainstay of 420 mm sits toward the shorter rear-center end. Its reach of 415 mm sits toward the longer end. Its trail of 67 mm sits somewhat higher than typical.
Compared with 69 distinct cyclocross/gravel geometries in the Large-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze LG geometry XL geometry
Archive context: The chainstay of 420 mm sits toward the shorter rear-center end. Its reach of 425 mm sits somewhat longer than typical. Its stack of 639 mm sits somewhat taller than typical.
Compared with 74 distinct cyclocross/gravel geometries in the XL-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze XL geometry Parts & serviceability
Find replacement parts
SRAM GX Eagle 12-Speed
Interpreted as SRAM GX · 12-speed Component family — verify exact version
SRAM PG-1230 11-50T
Exact archived model
WTB Gravelier - Chromoly Rail
Named archived component — verify exact version
More qualified parts (5)
SRAM Apex 1 Wide DUB 40t
Component family — verify exact version
SRAM Apex Eagle 12-Speed
Interpreted as SRAM Apex · 12-speed Component family — verify exact version
Before ordering: Confirm whether the drivetrain is mechanical or electronic before ordering.
SRAM Apex 12-Speed
Interpreted as SRAM Apex · 12-speed Component family — verify exact version
Before ordering: Confirm whether the drivetrain is mechanical or electronic before ordering.
FSA SMR-II Stem 31.8mm- 60mm(XXS-XS), 70mm(SM-MD), 80mm(LG), 90mm(XL)
Named archived component — verify dimensions
FSA No. 80 CR II Headset
Exact archived model
Searches use the archived manufacturer specification, not the components currently installed on a particular bicycle. Confirm the exact model, size and fit before ordering. As an Amazon Associate I earn from qualifying purchases. Velopedia may also earn from qualifying eBay purchases. Velopedia may also earn from qualifying retailer purchases. Commercial relationships do not influence Archive specifications or analysis.
Used-bike inspection
If you’re buying this bike used
Before any test ride: both brakes should stop the bike firmly and release cleanly; both wheels should run true and be securely attached; tires should have no casing damage; and the headset, handlebar, stem, cranks and pedals should have no looseness or play.
Follow the full used-bike inspection order →- FrameInspect the frame in bright light, especially around the head tube, bottom bracket, chainstays and clamped areas. Look for cracks, ripples, crushed sections or signs of a previous impact.Inspect the frame and fork →
- BrakesTest each brake separately and confirm it stops firmly and releases cleanly. Inspect the pads and braking surfaces for wear or contamination, and check the cables or hoses for damage.Inspect the brakes →
- DrivetrainShift through every gear under light load and measure chain wear. Confirm that the shifter, derailleur, chain and cassette belong to the same 12-speed system.Check drivetrain wear →
- Wheels & tiresSpin both wheels and watch the rims for side-to-side or vertical movement. Check for dents, cracks, loose or uneven spokes and hub play, then inspect both tire casings for cuts, cracking or exposed threads.Check wheels and tires →
Bike-specific inspection checklist 19 checks based on 5 archived component groups Open checklistClose checklist
This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.
Identity and fit
Follow the full used-bike inspection order →Archived: 2026 Pivot Vault Pro Apex · Cyclocross/Gravel · Published sizes: XXS, XS, S, M, L, XL
Frame and fork
Inspect the frame and fork →Archived: Frame: Vault — Ultra-Light Hollow Core carbon frame · Fork: Pivot Vault Carbon · Carbon Fiber
Drivetrain
Check drivetrain wear →Archived: Group: Pro Apex · Shifters: SRAM Apex 12-Speed · Rear derailleur: SRAM Apex Eagle 12-Speed · Crankset: SRAM Apex 1 Wide DUB 40t · Cassette: SRAM PG-1230 11-50t · Chain: SRAM GX Eagle 12-Speed
Brakes
Inspect the brakes →Archived: Brakes: SRAM Apex 2-piston; Rotors: Sram Centerline CenterLock - 160mm Sram Centerline CenterLock - 160mm
Wheels and tires
Check wheels and tires →Archived: Wheel size: 700C · Wheels: DT Swiss ER 1600 Spline 23mm - 700C 12x100 F/12x142 R
Controls and contact points
Archived: Headset: FSA No. 80 CR II Headset · Handlebar: Phoenix Ride Gravel Aluminum - 40cm (XXS-XS), 42cm (SM), 44cm (MD-LG), 46cm (XL) · Stem: FSA SMR-II Stem 31.8mm- 60mm(XXS-XS), 70mm(SM-MD), 80mm(LG), 90mm(XL) · Seatpost: Phoenix Pro ISO Flex Carbon · Saddle: WTB Gravelier - Chromoly Rail
Before and during the test ride
Follow the full used-bike inspection order →Build relationships are limited to the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
