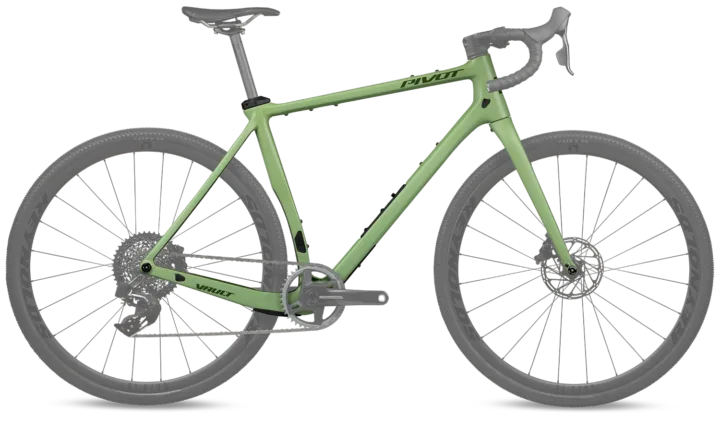

2026 Pivot Vault Frame
Original manufacturer specifications including Frame drivetrain, geometry for 6 published sizes.
Selling this bike? Create a shareable bike record
What Velopedia knows
- Model year
- 2026
- Category
- Gravel & Cyclocross
- Original MSRP
- $2,899.00
- Sizes
- XXS, XS, S, M, L, XL
- Colors
- Copper Comet, Mossy Forest, Stealth
- Geometry
- 6 manufacturer sizes · Geometry context
- Record coverage
- 6 preserved details · 6 archived images · original MSRP · preserved geometry
- Archive ID
- 900000139
Frameset
| Frame Construction | Vault — Ultra-Light Hollow Core carbon frame |
|---|---|
| Frame Material | Carbon Fiber |
| Fork | Pivot Vault Carbon |
| Fork Material | Carbon Fiber |
Drivetrain
| Component Group | Frame |
|---|
Cockpit & Contact Points
| Headset | FSA No. 80 CR II Headset |
|---|
Size-specific frame data
Geometry
Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.
| Measurement | XXS | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|---|
| Seat tube | 390 mm | 430 mm | 480 mm | 500 mm | 520 mm | 540 mm |
| Effective top tube | 502 mm | 536 mm | 555 mm | 586 mm | 600 mm | 620 mm |
| Head tube | 85 mm | 110 mm | 125 mm | 150 mm | 165 mm | 200 mm |
| Head-tube angle | 69° | 70° | 70.4° | 70.7° | 70.8° | 71° |
| Seat-tube angle | 75° | 74.3° | 73.8° | 73° | 73° | 73° |
| Chainstay / rear center | 420 mm | 420 mm | 420 mm | 420 mm | 420 mm | 420 mm |
| Wheelbase | 1000 mm | 1021 mm | 1034 mm | 1054 mm | 1069 mm | 1088 mm |
| Bottom-bracket drop | 80 mm | 78 mm | 76 mm | 75 mm | 73 mm | 73 mm |
| Bottom-bracket height | 271 mm | 273 mm | 275 mm | 276 mm | 278 mm | 278 mm |
| Reach | 360 mm | 380 mm | 390 mm | 405 mm | 415 mm | 425 mm |
| Stack | 529 mm | 554 mm | 568 mm | 592 mm | 605 mm | 639 mm |
| Standover height | 666 mm | 708 mm | 750 mm | 772 mm | 791 mm | 815 mm |
| Trail | 79 mm | 72 mm | 69 mm | 68 mm | 67 mm | 66 mm |
Geometry source: Pivot first-party geometry metafield ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
Geometry tools
Analyze a published size
XS geometry
Archive context: The chainstay of 420 mm sits toward the shorter rear-center end. Its trail of 72 mm sits somewhat lower than typical. Its stack of 554 mm sits somewhat taller than typical.
Compared with 37 distinct cyclocross/gravel geometries in the XS-equivalent size cohort from model years 2024–2027 in the Velopedia archive.SM geometry
Archive context: The chainstay of 420 mm sits toward the shorter rear-center end. Its reach of 390 mm sits toward the longer end. The seat angle of 73.8° sits somewhat more relaxed than typical.
Compared with 84 distinct cyclocross/gravel geometries in the Small-equivalent size cohort from model years 2024–2027 in the Velopedia archive.MD geometry
Archive context: The chainstay of 420 mm sits toward the shorter rear-center end. Its reach of 405 mm sits toward the longer end. The seat angle of 73° sits toward the more relaxed end.
Compared with 96 distinct cyclocross/gravel geometries in the Medium-equivalent size cohort from model years 2024–2027 in the Velopedia archive.LG geometry
Archive context: The chainstay of 420 mm sits toward the shorter rear-center end. Its reach of 415 mm sits toward the longer end. Its trail of 67 mm sits somewhat higher than typical.
Compared with 69 distinct cyclocross/gravel geometries in the Large-equivalent size cohort from model years 2024–2027 in the Velopedia archive.XL geometry
Archive context: The chainstay of 420 mm sits toward the shorter rear-center end. Its reach of 425 mm sits somewhat longer than typical. Its stack of 639 mm sits somewhat taller than typical.
Compared with 74 distinct cyclocross/gravel geometries in the XL-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Parts & serviceability
Find replacement parts
FSA No. 80 CR II Headset
Exact archived model
Searches use the archived manufacturer specification, not the components currently installed on a particular bicycle. Confirm the exact model, size and fit before ordering. As an Amazon Associate I earn from qualifying purchases. Velopedia may also earn from qualifying eBay purchases. Commercial relationships do not influence Archive specifications or analysis.
Used-bike inspection
If you’re buying this bike used
Before any test ride: both brakes should stop the bike firmly and release cleanly; both wheels should run true and be securely attached; tires should have no casing damage; and the headset, handlebar, stem, cranks and pedals should have no looseness or play.
Follow the full used-bike inspection order →- FrameInspect the frame in bright light, especially around the head tube, bottom bracket, chainstays and clamped areas. Look for cracks, ripples, crushed sections or signs of a previous impact.Inspect the frame and fork →
- BrakesIdentify the installed brake system before riding or ordering parts. Test every installed brake separately at walking speed, confirm it stops firmly and releases cleanly, then inspect its pads, braking surfaces and complete cable or hose path.Inspect the brakes →
- DrivetrainShift through the full range under light load, measure chain wear and inspect the cassette or freewheel teeth. Skipping or hesitation can indicate wear, poor adjustment or mismatched parts.Check drivetrain wear →
Used-bike inspection checklist 19 universal checks for a record with limited component data Open checklistClose checklist
The archived record does not contain enough component detail for a fully specification-informed checklist. Use these universal checks on the bicycle in front of you, identify the installed equipment and confirm compatibility before ordering parts.
Identity and fit
Follow the full used-bike inspection order →Archived: 2026 Pivot Vault Frame · Cyclocross/Gravel · Published sizes: XXS, XS, S, M, L, XL
Frame and fork
Inspect the frame and fork →Archived: Frame: Vault — Ultra-Light Hollow Core carbon frame · Fork: Pivot Vault Carbon · Carbon Fiber
Drivetrain
Check drivetrain wear →Archived: Group: Frame
Brakes
Inspect the brakes →Controls and contact points
Wheels and tires
Check wheels and tires →Before and during the test ride
Follow the full used-bike inspection order →Build relationships are limited to the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
