2026 Pivot Trailcat LT Frame
Original manufacturer specifications including Frame drivetrain, geometry for 5 published sizes.
Selling this bike? Create a shareable bike record
What Velopedia knows
- Model year
- 2026
- Category
- Mountain
- Original MSRP
- $4,599.00
- Sizes
- XS, S, M, L, XL
- Colors

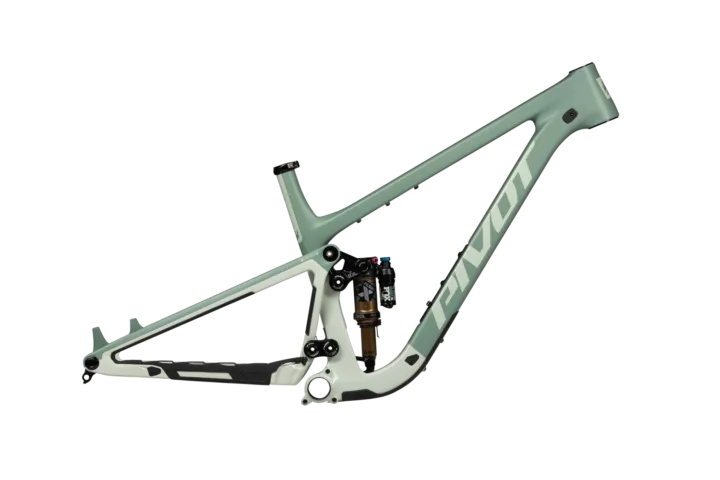

- Green Meadow Mist, Doctor Purple, Mocha Storm
- Geometry
- 5 manufacturer sizes · Geometry context
- Record coverage
- 5 preserved details · 3 archived images · original MSRP · preserved geometry
- Archive ID
- 900000247
Frameset
| Frame Construction | Trailcat LT — Ultra-Light Hollow Core carbon frame |
|---|---|
| Frame Material | Carbon Fiber |
| Rear Shock | Fox Factory Float X |
Drivetrain
| Component Group | Frame |
|---|
Cockpit & Contact Points
| Headset | Pivot Precision Sealed Cartridge |
|---|
Size-specific frame data
Geometry
Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.
| Measurement | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Seat tube | 343 mm | 368 mm | 394 mm | 432 mm | 470 mm |
| Top tube | 569 mm | 596 mm | 629 mm | 646 mm | 660 mm |
| Head tube | 85 mm | 95 mm | 107 mm | 112 mm | 125 mm |
| Head-tube angle | 65.6° | 65.6° | 65.6° | 65.6° | 65.6° |
| Seat-tube angle | 76° | 76° | 76° | 76° | 76.4° |
| Chainstay / rear center | 430 mm | 430 mm | 430 mm | 431 mm | 433 mm |
| Wheelbase | 1147 mm | 1176 mm | 1211 mm | 1230 mm | 1256 mm |
| Bottom-bracket drop | 28 mm | 28 mm | 28 mm | 28 mm | 28 mm |
| Bottom-bracket height | 346 mm | 346 mm | 346 mm | 346 mm | 346 mm |
| Reach | 410 mm | 435 mm | 465 mm | 480 mm | 500 mm |
| Stack | 605 mm | 614 mm | 625 mm | 630 mm | 642 mm |
| Standover height | 662 mm | 683 mm | 687 mm | 701 mm | 716 mm |
Geometry source: Pivot first-party geometry metafield ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
Geometry tools
Analyze a published size
XS geometry
Archive context: Its stack of 605 mm sits somewhat taller than typical. Its bottom-bracket drop of 28 mm sits somewhat shallower than typical. The chainstay of 430 mm sits close to the middle of the group.
Compared with 56 distinct mountain geometries in the XS-equivalent size cohort from model years 2024–2027 in the Velopedia archive.SM geometry
Archive context: The chainstay of 430 mm sits somewhat shorter than typical. Its reach of 435 mm sits somewhat longer than typical. Its bottom-bracket drop of 28 mm sits somewhat shallower than typical.
Compared with 182 distinct mountain geometries in the Small-equivalent size cohort from model years 2024–2027 in the Velopedia archive.MD geometry
Archive context: Its reach of 465 mm sits toward the longer end. The chainstay of 430 mm sits toward the shorter rear-center end. Its bottom-bracket drop of 28 mm sits somewhat shallower than typical.
Compared with 183 distinct mountain geometries in the Medium-equivalent size cohort from model years 2024–2027 in the Velopedia archive.LG geometry
Archive context: The chainstay of 431 mm sits toward the shorter rear-center end. Its bottom-bracket drop of 28 mm sits somewhat shallower than typical. Its reach of 480 mm sits somewhat longer than typical.
Compared with 180 distinct mountain geometries in the Large-equivalent size cohort from model years 2024–2027 in the Velopedia archive.XL geometry
Archive context: The chainstay of 433 mm sits somewhat shorter than typical. Its bottom-bracket drop of 28 mm sits somewhat shallower than typical. Its wheelbase of 1256 mm sits somewhat shorter than typical.
Compared with 153 distinct mountain geometries in the XL-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Used-bike inspection
If you’re buying this bike used
Before any test ride: both brakes should stop the bike firmly and release cleanly; both wheels should run true and be securely attached; tires should have no casing damage; and the headset, handlebar, stem, cranks and pedals should have no looseness or play.
Follow the full used-bike inspection order →- FrameInspect the frame in bright light, especially around the head tube, bottom bracket, chainstays and clamped areas. Look for cracks, ripples, crushed sections or signs of a previous impact.Inspect the frame and fork →
- BrakesIdentify the installed brake system before riding or ordering parts. Test every installed brake separately at walking speed, confirm it stops firmly and releases cleanly, then inspect its pads, braking surfaces and complete cable or hose path.Inspect the brakes →
- SuspensionAsk when the rear shock was last serviced. Check the shaft and seals for damage or oil, cycle the shock through its travel and test every suspension pivot for play.Evaluate the suspension →
- DrivetrainShift through the full range under light load, measure chain wear and inspect the cassette or freewheel teeth. Skipping or hesitation can indicate wear, poor adjustment or mismatched parts.Check drivetrain wear →
Bike-specific inspection checklist 16 checks based on 4 archived component groups Open checklistClose checklist
This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.
Identity and fit
Follow the full used-bike inspection order →Archived: 2026 Pivot Trailcat LT Frame · Mountain · Published sizes: XS, S, M, L, XL
Frame and fork
Inspect the frame and fork →Archived: Frame: Trailcat LT — Ultra-Light Hollow Core carbon frame
Suspension
Evaluate the suspension →Archived: Rear shock: Fox Factory Float X
Drivetrain
Check drivetrain wear →Archived: Group: Frame
Brakes
Inspect the brakes →Before and during the test ride
Follow the full used-bike inspection order →Build relationships are limited to the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
