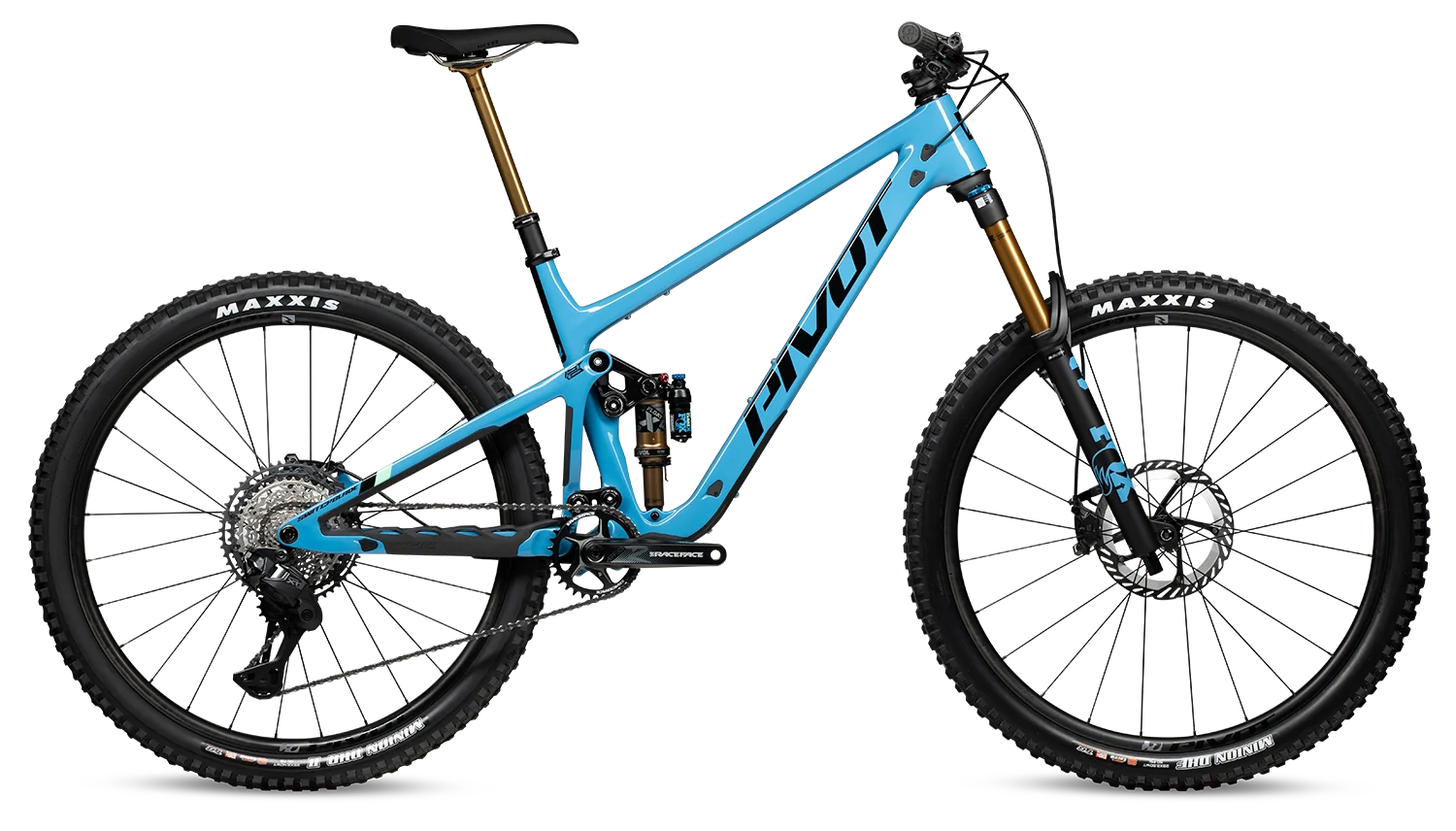

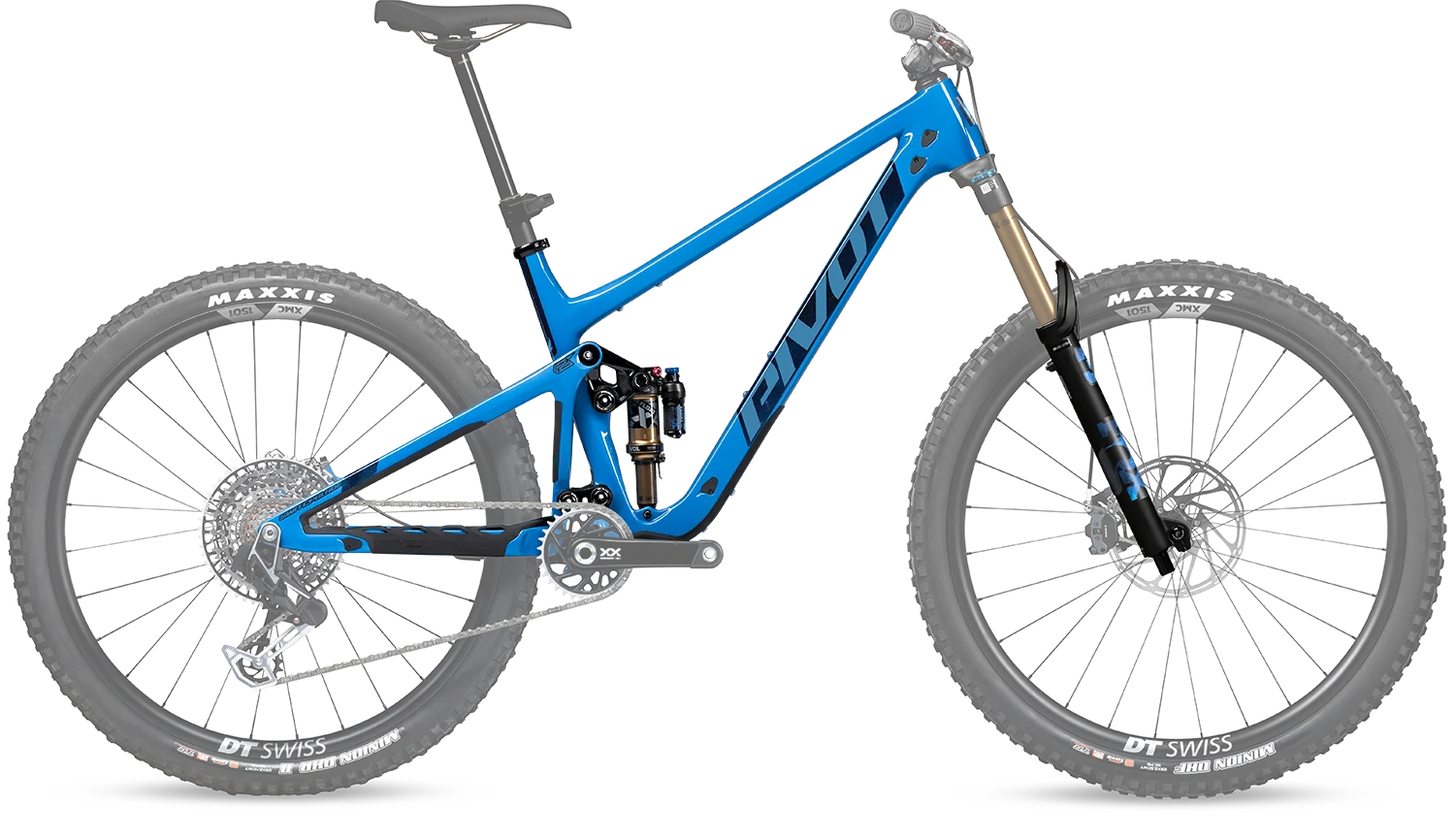

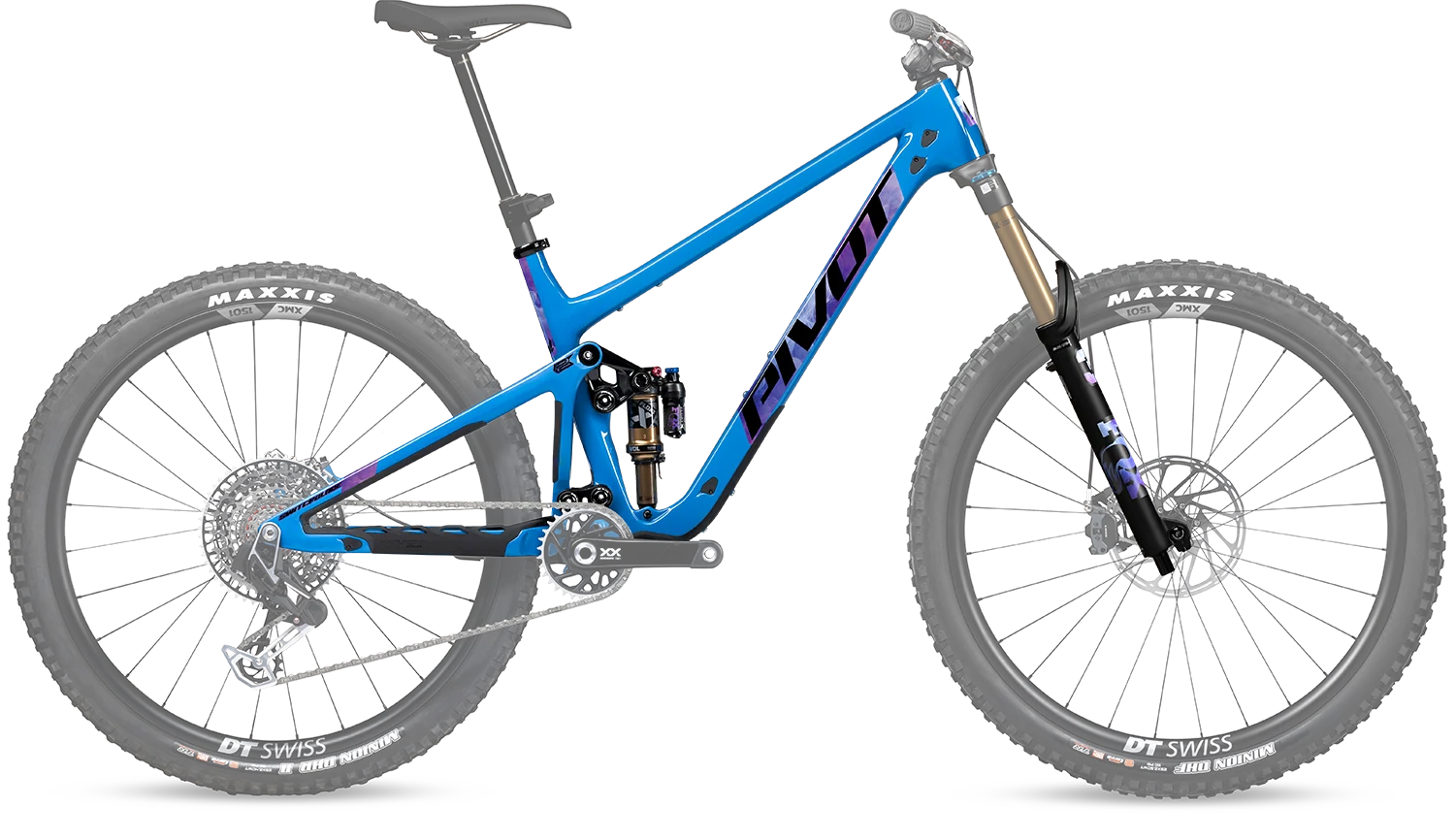

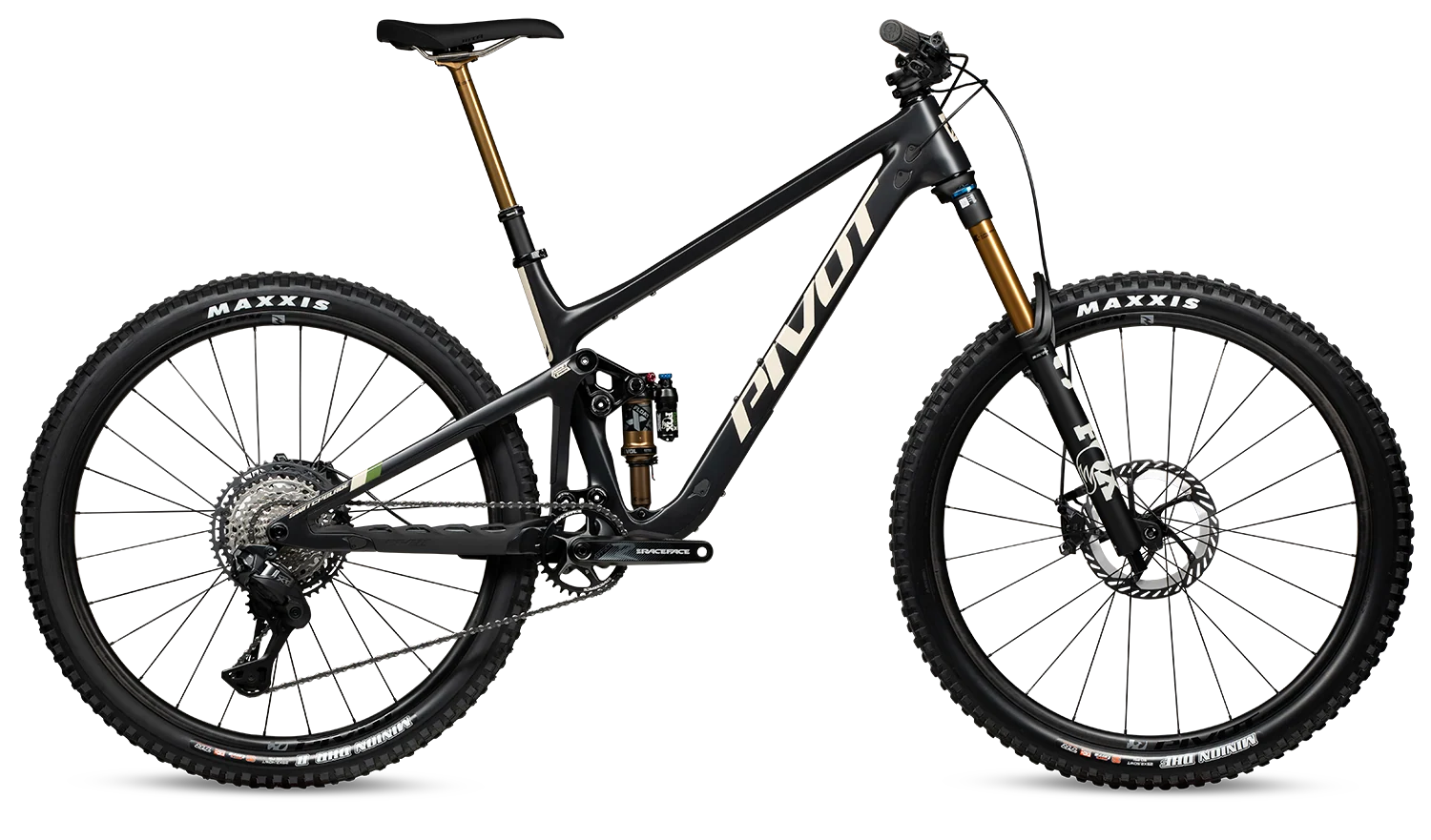

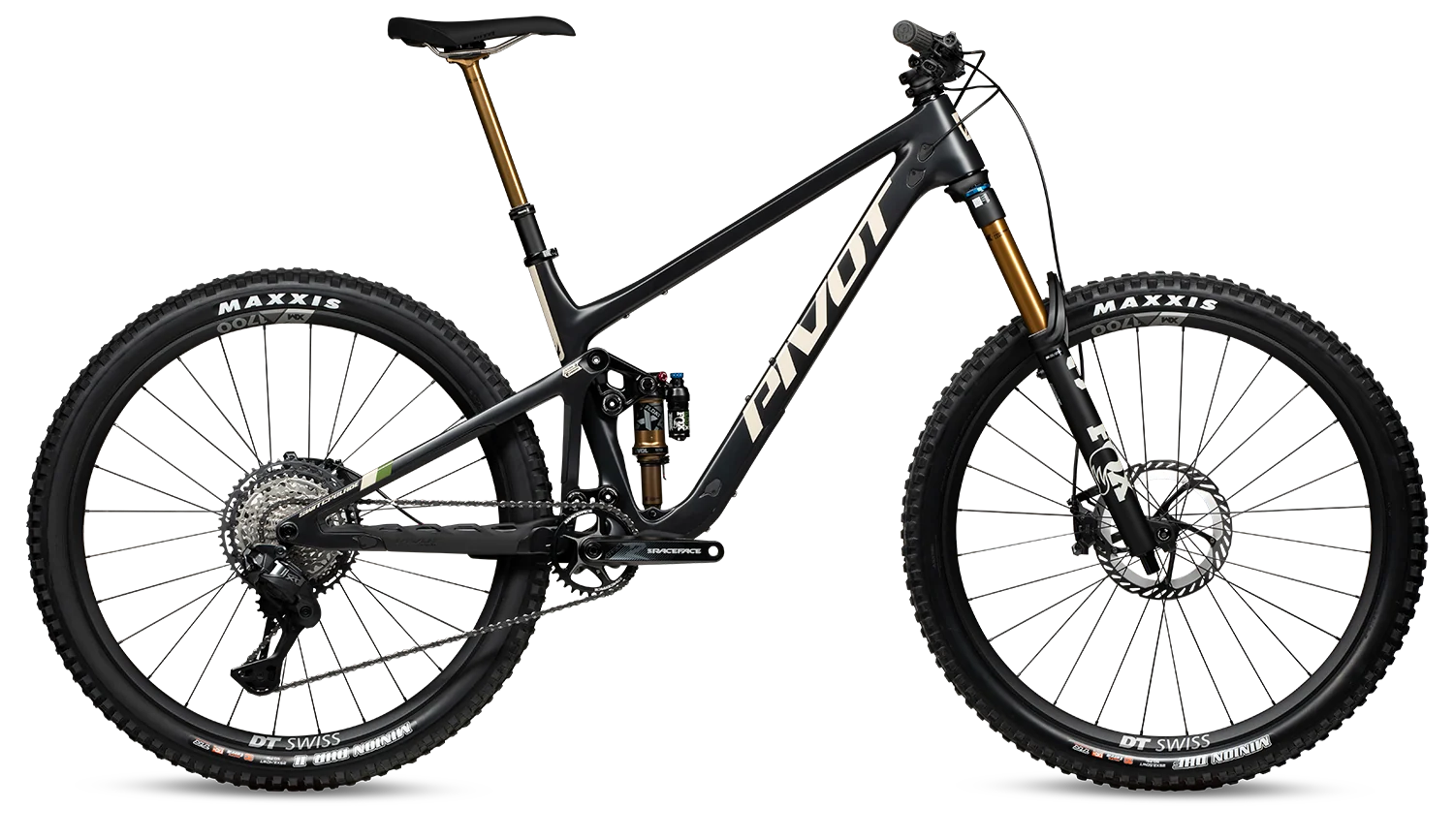

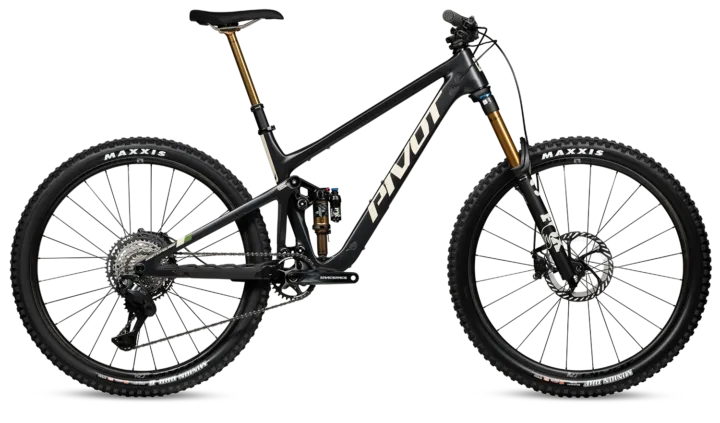

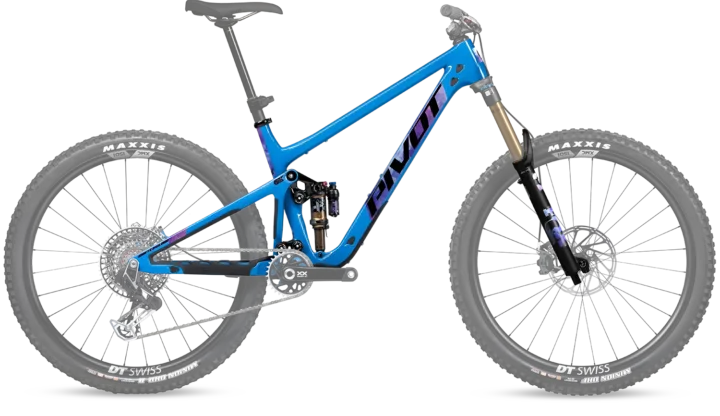

2026 Pivot Switchblade Pro XT Di2
Mountain bicycle from the Velopedia specification archive.
- Original MSRP
- $8,999.00
- Sizes
- SM; MD; LG; XL; XS
- Colors
- Stealth Mojave; Blue Neptune; Blue Neptune | Cotton Candy; Blue Neptune | Laffee Taffee; Blue Neptune | Starry Night; Blue Neptune | Stranger in The Night; Stealth Mojave | Cotton Candy; Stealth Mojave | Laffee Taffee; Stealth Mojave | Starry Night; Stealth Mojave | Stranger in The Night
- Archive ID
- 900000110
Current market
Checking current listings…Frameset
| Frame Construction | Switchblade — Ultra-Light Hollow Core carbon frame |
|---|---|
| Frame Material | Carbon Fiber |
| Fork | Fox Factory 36 29", 44mm offset, GRIP X2 - 160mm |
| Rear Shock | Fox Factory Float X |
Drivetrain
| Component Group | Pro XT Di2 |
|---|---|
| Shifters | Shimano XT Di2 M8200 ISPEC EV 12-Speed |
| Rear Derailleur | Shimano XT Di2 M8200 SGS 12-Speed |
| Crankset | Race Face Æffect R 32t |
| Cassette | Shimano XT M8200 10-51t |
| Chain | Shimano CN-M8100 12-Speed |
Brakes
| Brakes | Shimano XT M8220 4-piston; Rotors: Shimano XT CenterLock - 203mm Shimano XT CenterLock - 180mm |
|---|
Cockpit & Contact Points
| Headset | Pivot Precision Sealed Cartridge |
|---|---|
| Handlebar | Phoenix Team Low Rise Carbon - 760mm (XS), 780mm (SM-MD), 800mm (LG-XL) |
| Stem | Phoenix Team Enduro/Trail - 35mm(XS), 45mm(SM-XL) |
| Saddle | Phoenix WTB Pro High Tail Trail (XS, SM), Phoenix WTB Volt Pro (Medium Width) (MD-XL) |
| Seatpost | One Up Dropper V3 150mm (XS-SM), Fox Factory Transfer 155-180mm (MD), Fox Factory Transfer 185-210mm (LG), Fox Factory Transfer 215-240mm (XL) |
Wheels & Tires
| Wheels | DT Swiss XM1700 w/ DT Swiss 350 hub & 36t Star Ratchet 30mm - 29" 15x110 F/12x157 R |
|---|---|
| Wheel Size | 29" |
Gallery
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
