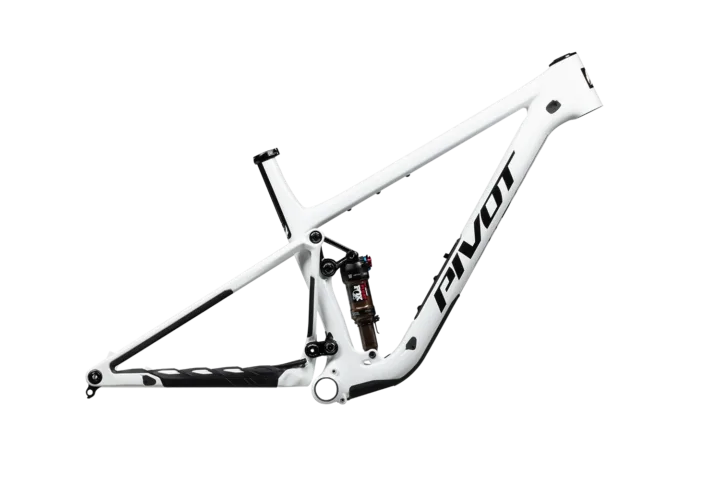

2026 Pivot Mach 4 SL Frame
Original manufacturer specifications including Frame drivetrain, geometry for 5 published sizes.
Selling this bike? Create a shareable bike record
What Velopedia knows
- Model year
- 2026
- Category
- Mountain
- Original MSRP
- $4,499.00
- Sizes
- XS, S, M, L, XL
- Colors
- White Avalanche, Blue Stellar Fade
- Geometry
- 5 manufacturer sizes · Geometry context
- Record coverage
- 5 preserved details · 2 archived images · original MSRP · preserved geometry
- Archive ID
- 900000077
Frameset
| Frame Construction | Mach 4 SL — Ultralight Hollow Core Carbon Frame |
|---|---|
| Frame Material | Carbon Fiber |
| Rear Shock | Fox Factory Float |
Drivetrain
| Component Group | Frame |
|---|
Cockpit & Contact Points
| Headset | Pivot Precision Sealed Integrated Cartridge |
|---|
Size-specific frame data
Geometry
Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.
| Measurement | XS | S | M | L | XL |
|---|---|---|---|---|---|
| Seat tube | 355 mm | 394 mm | 420 mm | 460 mm | 505 mm |
| Effective top tube | 574 mm | 591 mm | 619 mm | 640 mm | 672 mm |
| Head tube | 85 mm | 92 mm | 105 mm | 110 mm | 135 mm |
| Head-tube angle | 66° | 66° | 66° | 66° | 66° |
| Seat-tube angle | 75° | 75° | 75° | 75° | 75° |
| Chainstay / rear center | 432 mm | 432 mm | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1131 mm | 1149 mm | 1179 mm | 1201 mm | 1236 mm |
| Bottom-bracket drop | 38 mm | 38 mm | 38 mm | 38 mm | 38 mm |
| Bottom-bracket height | 336 mm | 336 mm | 336 mm | 336 mm | 336 mm |
| Reach | 410 mm | 425 mm | 450 mm | 470 mm | 495 mm |
| Stack | 583 mm | 590 mm | 602 mm | 606 mm | 629 mm |
| Standover height | 641 mm | 655 mm | 687 mm | 686 mm | 699 mm |
Geometry source: Pivot first-party geometry metafield ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
Geometry tools
Analyze a published size
XS geometry
Archive context: Its stack of 583 mm sits somewhat lower than typical. The seat angle of 75° sits somewhat more relaxed than typical. Its wheelbase of 1131 mm sits somewhat shorter than typical.
Compared with 56 distinct mountain geometries in the XS-equivalent size cohort from model years 2024–2027 in the Velopedia archive.S geometry
Archive context: Its stack of 590 mm sits toward the lower end. The seat angle of 75° sits somewhat more relaxed than typical. Its wheelbase of 1149 mm sits somewhat shorter than typical.
Compared with 182 distinct mountain geometries in the Small-equivalent size cohort from model years 2024–2027 in the Velopedia archive.M geometry
Archive context: Its stack of 602 mm sits toward the lower end. The seat angle of 75° sits somewhat more relaxed than typical. The chainstay of 432 mm sits somewhat shorter than typical.
Compared with 183 distinct mountain geometries in the Medium-equivalent size cohort from model years 2024–2027 in the Velopedia archive.L geometry
Archive context: Its stack of 606 mm sits toward the lower end. The chainstay of 432 mm sits somewhat shorter than typical. The seat angle of 75° sits somewhat more relaxed than typical.
Compared with 180 distinct mountain geometries in the Large-equivalent size cohort from model years 2024–2027 in the Velopedia archive.XL geometry
Archive context: The chainstay of 432 mm sits toward the shorter rear-center end. Its stack of 629 mm sits toward the lower end. Its wheelbase of 1236 mm sits somewhat shorter than typical.
Compared with 153 distinct mountain geometries in the XL-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Used-bike inspection
If you’re buying this bike used
Before any test ride: both brakes should stop the bike firmly and release cleanly; both wheels should run true and be securely attached; tires should have no casing damage; and the headset, handlebar, stem, cranks and pedals should have no looseness or play.
Follow the full used-bike inspection order →- FrameInspect the frame in bright light, especially around the head tube, bottom bracket, chainstays and clamped areas. Look for cracks, ripples, crushed sections or signs of a previous impact.Inspect the frame and fork →
- BrakesIdentify the installed brake system before riding or ordering parts. Test every installed brake separately at walking speed, confirm it stops firmly and releases cleanly, then inspect its pads, braking surfaces and complete cable or hose path.Inspect the brakes →
- SuspensionAsk when the rear shock was last serviced. Check the shaft and seals for damage or oil, cycle the shock through its travel and test every suspension pivot for play.Evaluate the suspension →
- DrivetrainShift through the full range under light load, measure chain wear and inspect the cassette or freewheel teeth. Skipping or hesitation can indicate wear, poor adjustment or mismatched parts.Check drivetrain wear →
Bike-specific inspection checklist 16 checks based on 4 archived component groups Open checklistClose checklist
This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.
Identity and fit
Follow the full used-bike inspection order →Archived: 2026 Pivot Mach 4 SL Frame · Mountain · Published sizes: XS, S, M, L, XL
Frame and fork
Inspect the frame and fork →Archived: Frame: Mach 4 SL — Ultralight Hollow Core Carbon Frame
Suspension
Evaluate the suspension →Archived: Rear shock: Fox Factory Float
Drivetrain
Check drivetrain wear →Archived: Group: Frame
Brakes
Inspect the brakes →Before and during the test ride
Follow the full used-bike inspection order →Build relationships are limited to the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
