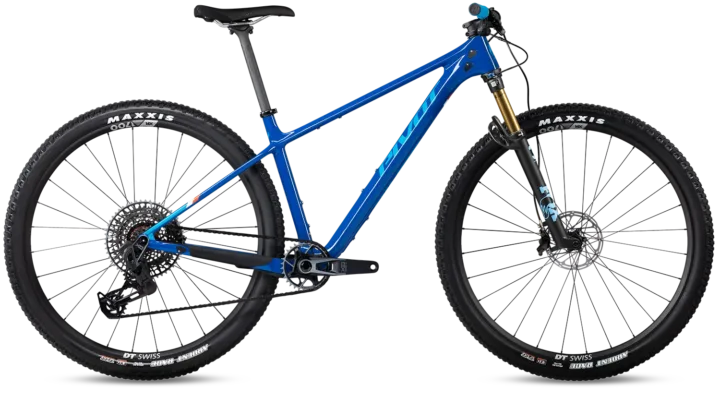

2026 Pivot LES SL Pro X0 Eagle Transmission
Original manufacturer specifications including Pro X0 Eagle Transmission drivetrain, 29" wheels, geometry for 5 published sizes.
Selling this bike? Create a shareable bike record
What Velopedia knows
- Model year
- 2026
- Category
- Mountain
- Original MSRP
- $7,699.00
- Sizes
- XS, S, M, L, XL
- Colors
- Black Sunset, Silver Bullet, Blue Ribbon
- Geometry
- 5 manufacturer sizes · Geometry context
- Record coverage
- 17 preserved details · 3 archived images · original MSRP · preserved geometry
- Archive ID
- 900000102
Frameset
| Frame Construction | LES SL — Ultra-featherlight hollow core carbon frame (800g) |
|---|---|
| Frame Material | Carbon Fiber |
| Fork | Fox Factory Stepcast 32 29" w/ Remote, 44mm offset, GRIP SL - 100mm |
Drivetrain
| Component Group | Pro X0 Eagle Transmission |
|---|---|
| Shifters | Sram AXS Pod Controller |
| Rear Derailleur | Sram X0 Eagle Transmission 12-Speed |
| Crankset | Sram X0 Eagle DUB 34t |
| Cassette | Sram X0 1295 Eagle Transmission 10-52t |
| Chain | Sram X0 Eagle Flattop 12-Speed |
Brakes
| Brakes | Sram Motive Silver 4-piston; Rotors: Sram Centerline CenterLock - 160mm Sram Centerline CenterLock - 160mm |
|---|
Cockpit & Contact Points
| Headset | Pivot Precision Sealed Integrated Cartridge |
|---|---|
| Handlebar | Phoenix Team Flat Carbon - 760mm |
| Stem | Phoenix Team XC/Trail - 60mm |
| Saddle | Phoenix WTB Pro Volt (Narrow Width) |
| Seatpost | Phoenix Team Carbon |
Wheels & Tires
| Wheels | DT Swiss XR1700 w/ DT Swiss 350 hub & 36t Star Ratchet 28mm - 29" 15x110 F/12x148 R |
|---|---|
| Wheel Size | 29" |
Size-specific frame data
Geometry
Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.
| Measurement | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Seat tube | 355 mm | 395 mm | 420 mm | 470 mm | 510 mm |
| Effective top tube | 565 mm | 592 mm | 620 mm | 638 mm | 668 mm |
| Head tube | 85 mm | 90 mm | 100 mm | 110 mm | 130 mm |
| Head-tube angle | 68° | 68.5° | 68.5° | 68.5° | 68.5° |
| Seat-tube angle | 75° | 74.5° | 74.5° | 74.5° | 74.5° |
| Chainstay / rear center | 429 mm | 429 mm | 429 mm | 429 mm | 429 mm |
| Wheelbase | 1086 mm | 1103 mm | 1132 mm | 1150 mm | 1183 mm |
| Bottom-bracket drop | 64 mm | 64 mm | 64 mm | 64 mm | 64 mm |
| Bottom-bracket height | 310 mm | 310 mm | 310 mm | 310 mm | 310 mm |
| Reach | 400 mm | 420 mm | 445 mm | 460 mm | 485 mm |
| Stack | 594 mm | 601 mm | 601 mm | 620 mm | 638 mm |
| Standover height | 607 mm | 649 mm | 684 mm | 711 mm | 748 mm |
Geometry source: Pivot first-party geometry metafield ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
Geometry tools
Analyze a published size
XS geometry
Archive context: Its bottom-bracket drop of 64 mm sits toward the deeper-drop end. The head angle of 68° sits toward the steeper end. Its wheelbase of 1086 mm sits toward the shorter end.
Compared with 56 distinct mountain geometries in the XS-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze XS geometry SM geometry
Archive context: Its bottom-bracket drop of 64 mm sits toward the deeper-drop end. Its wheelbase of 1103 mm sits toward the shorter end. The head angle of 68.5° sits toward the steeper end.
Compared with 182 distinct mountain geometries in the Small-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze SM geometry MD geometry
Archive context: Its bottom-bracket drop of 64 mm sits toward the deeper-drop end. Its wheelbase of 1132 mm sits toward the shorter end. The head angle of 68.5° sits toward the steeper end.
Compared with 183 distinct mountain geometries in the Medium-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze MD geometry LG geometry
Archive context: Its bottom-bracket drop of 64 mm sits toward the deeper-drop end. Its wheelbase of 1150 mm sits toward the shorter end. The head angle of 68.5° sits toward the steeper end.
Compared with 180 distinct mountain geometries in the Large-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze LG geometry XL geometry
Archive context: Its bottom-bracket drop of 64 mm sits toward the deeper-drop end. The head angle of 68.5° sits toward the steeper end. Its wheelbase of 1183 mm sits toward the shorter end.
Compared with 153 distinct mountain geometries in the XL-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze XL geometry Parts & serviceability
Find replacement parts
Sram X0 Eagle Flattop 12-Speed
Interpreted as SRAM X0 · 12-speed Component family — verify exact version
Sram X0 1295 Eagle Transmission 10-52t
Interpreted as SRAM X0 · 12-speed Component family — verify exact version
Phoenix WTB Pro Volt (Narrow Width)
Named archived component — verify exact version
More qualified parts (2)
Sram X0 Eagle DUB 34t
Component family — verify exact version
Sram X0 Eagle Transmission 12-Speed
Interpreted as SRAM X0 · 12-speed Component family — verify exact version
Before ordering: Confirm whether the drivetrain is mechanical or electronic before ordering.
Searches use the archived manufacturer specification, not the components currently installed on a particular bicycle. Confirm the exact model, size and fit before ordering. As an Amazon Associate I earn from qualifying purchases. Velopedia may also earn from qualifying eBay purchases. Velopedia may also earn from qualifying retailer purchases. Commercial relationships do not influence Archive specifications or analysis.
Used-bike inspection
If you’re buying this bike used
Before any test ride: both brakes should stop the bike firmly and release cleanly; both wheels should run true and be securely attached; tires should have no casing damage; and the headset, handlebar, stem, cranks and pedals should have no looseness or play.
Follow the full used-bike inspection order →- FrameInspect the frame in bright light, especially around the head tube, bottom bracket, chainstays and clamped areas. Look for cracks, ripples, crushed sections or signs of a previous impact.Inspect the frame and fork →
- BrakesTest each brake separately and confirm it stops firmly and releases cleanly. Inspect the pads and braking surfaces for wear or contamination, and check the cables or hoses for damage.Inspect the brakes →
- SuspensionAsk when the fork was last serviced. Check the stanchions for damage, look for oil at the seals and make sure the fork moves smoothly without bushing play.Evaluate the suspension →
- DrivetrainConfirm every shift-system battery charges, every shift control works and the derailleur moves cleanly across the cassette. Make sure the matching shift-system charger is included, then measure chain wear and inspect the cassette teeth.Check drivetrain wear →
- Wheels & tiresSpin both wheels and watch the rims for side-to-side or vertical movement. Check for dents, cracks, loose or uneven spokes and hub play, then inspect both tire casings for cuts, cracking or exposed threads.Check wheels and tires →
Bike-specific inspection checklist 20 checks based on 6 archived component groups Open checklistClose checklist
This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.
Identity and fit
Follow the full used-bike inspection order →Archived: 2026 Pivot LES SL Pro X0 Eagle Transmission · Mountain · Published sizes: XS, S, M, L, XL
Frame and fork
Inspect the frame and fork →Archived: Frame: LES SL — Ultra-featherlight hollow core carbon frame (800g) · Fork: Fox Factory Stepcast 32 29" w/ Remote, 44mm offset, GRIP SL - 100mm
Suspension
Evaluate the suspension →Archived: Fork: Fox Factory Stepcast 32 29" w/ Remote, 44mm offset, GRIP SL - 100mm
Drivetrain
Check drivetrain wear →Archived: Group: Pro X0 Eagle Transmission · Shifters: Sram AXS Pod Controller · Rear derailleur: Sram X0 Eagle Transmission 12-Speed · Crankset: Sram X0 Eagle DUB 34t · Cassette: Sram X0 1295 Eagle Transmission 10-52t · Chain: Sram X0 Eagle Flattop 12-Speed
Brakes
Inspect the brakes →Archived: Brakes: Sram Motive Silver 4-piston; Rotors: Sram Centerline CenterLock - 160mm Sram Centerline CenterLock - 160mm
Wheels and tires
Check wheels and tires →Archived: Wheel size: 29" · Wheels: DT Swiss XR1700 w/ DT Swiss 350 hub & 36t Star Ratchet 28mm - 29" 15x110 F/12x148 R
Controls and contact points
Archived: Headset: Pivot Precision Sealed Integrated Cartridge · Handlebar: Phoenix Team Flat Carbon - 760mm · Stem: Phoenix Team XC/Trail - 60mm · Seatpost: Phoenix Team Carbon · Saddle: Phoenix WTB Pro Volt (Narrow Width)
Before and during the test ride
Follow the full used-bike inspection order →Build relationships are limited to the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
