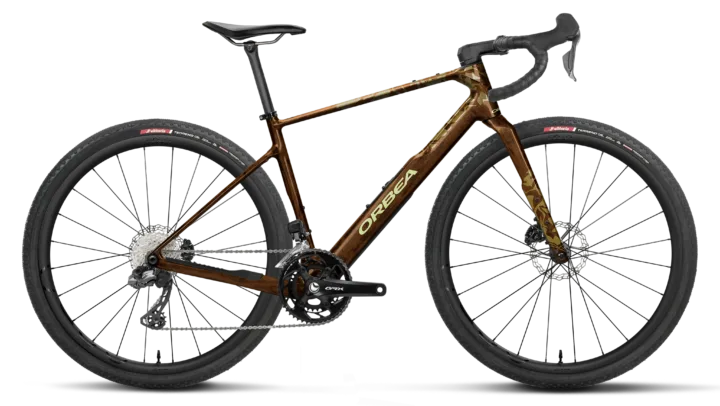

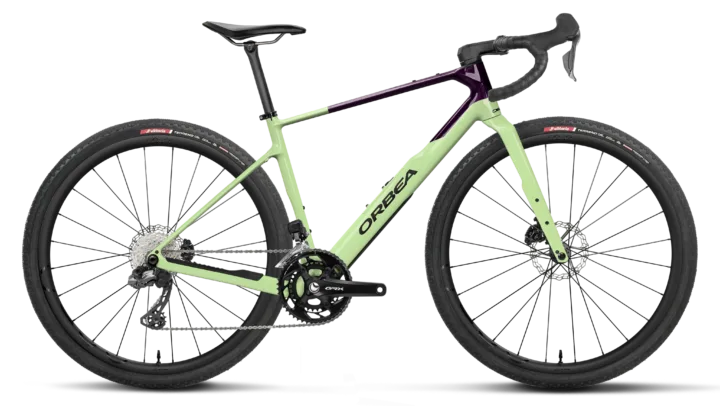

2026 Orbea Terra M20iTEAM

Archived: 2026 Orbea Terra M20iTEAM · Cyclocross/Gravel · Published sizes: XS, S, M, L, XL, XXL

• Confirm the frame markings and seller description match this archived model. Note every component that differs from the published build.
• Record the frame serial number. It should be legible, unaltered and consistent with the seller’s ownership history.
• Find the size marking on the bicycle and confirm the fit before judging the condition or price.

Archived: Frame: Orbea Terra carbon OMR Disc, monocoque construction, HS 1,5", BB386EVO, powermeter compatible, Thru Axle 12x142mm rear, thread M12xP1, UDH dropout, LOCKR XXL service box, MMS munti mount system, fender ready. · Fork: Orbea Terra ICR, full carbon, 1-1/8" - 1,5" tappered head tube compatible, Thru axle 12x100mm, thread M12xP1, MMS multi mount system, fender ready. · Carbon Fiber

• Inspect the frame in bright light, especially the head tube, bottom-bracket area, chainstays and clamped surfaces. Look for cracks, ripples, crushed sections or signs of impact.
• Stand behind and in front of the bicycle to look for obvious frame, fork or wheel misalignment. Ask directly about crashes, transport damage and repairs.
• Inspect the fork crown, blades, dropouts and visible steerer area. Check that it is straight, securely installed and free of cracks or impact damage.

Archived: Shifters: Shimano GRX Di2 RX825 · Front derailleur: Shimano GRX Di2 RX825 · Rear derailleur: Shimano GRX Di2 RX825 · Crankset: Shimano GRX RX820 31x48t · Cassette: Shimano Ultegra R8100 11-34t 12-Speed · Chain: Shimano M7100

• Confirm every shift battery charges and every control operates. Shift through the full cassette under light load while checking pairing, derailleur alignment and response at both ends of the range.
• Measure chain wear with a compatible gauge and inspect chainring, cassette or freewheel teeth. A new chain does not rule out wear in the remaining drivetrain.
• Turn the cranks slowly, feel for rough bearings and check for side-to-side play. Inspect crank arms, chainring bolts and pedal threads for looseness or damage.

Archived: Brakes: Shimano RX820 Hydraulic Disc

• Squeeze each lever firmly. It should feel consistent and return cleanly. Check levers, hoses and calipers for fluid, inspect pad thickness and contamination, and examine rotors for wear or bending.
• Before riding, test every installed brake separately at walking speed. Each should stop firmly and release cleanly without its control reaching the end of its usable travel.

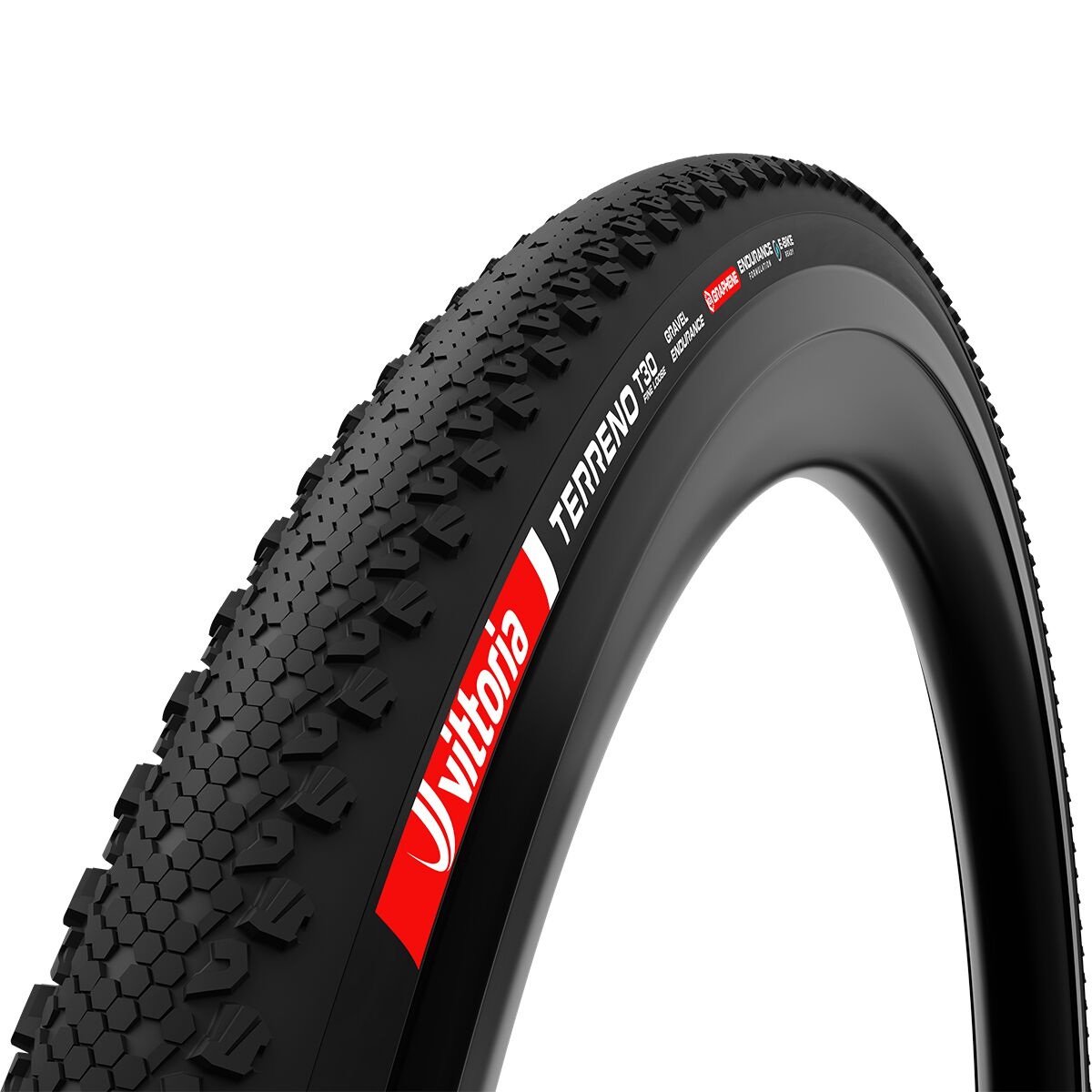

Archived: Wheel size: 700C · Wheels: Oquo Road Control RC30TEAM · Front tire: Vittoria Terreno T30 fine loose Gravel Endurance G2.0 700x45c · Rear tire: Vittoria Terreno T30 fine loose Gravel Endurance G2.0 700x45c

• Spin both wheels and watch for side-to-side and vertical movement. Check spoke tension, rim condition and hub play.
• Inspect both tire casings for cuts, cracking, plugs, bulges or exposed threads and confirm the installed sizes are safe for the rims and available frame and fork clearance.
• Remove and reinstall or closely inspect both wheel-retention systems. Axles or quick releases should tighten correctly with undamaged threads, hardware and dropouts.

Archived: Headset: FSA 1-1/2" Integrated Aluminium Cup · Handlebar: OC Gravel GR10 Carbon, Reach 70, Drop 110 · Stem: OC Road Performance RP11, -8º · Seatpost: OC Performance XP10 Carbon, 27.2mm, Setback 0 · Saddle: Fizik Terra Argo X3 Kium Rail 140mm

• Apply the front brake and rock the bike to check for headset play or notchiness. Inspect the stem, handlebar and clamp zones, then confirm every fastener and control is secure. Look particularly closely for crushing, scoring or cracks at carbon handlebar clamp areas.
• Check that the seatpost moves for adjustment and that the saddle, post and clamp hold securely without cracks, severe corrosion or damaged hardware.

• Before riding, confirm both wheels are secure, tires are safe, both brakes function, and the headset, handlebar, stem, cranks and pedals have no looseness.
• Begin at low speed. Test steering, braking and shifting progressively, then load the drivetrain and suspension only after the basic safety checks pass.
• Listen and feel for repeated knocks, grinding, skipping, brake pulsation or movement at joints. Stop the test if the bicycle cannot be controlled safely.
