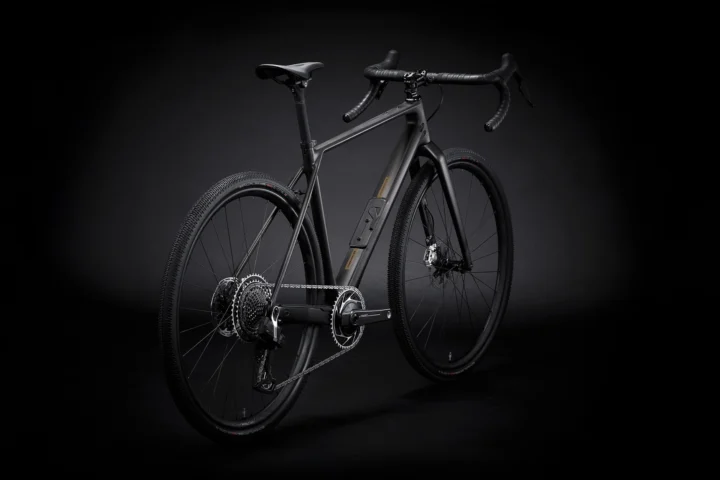

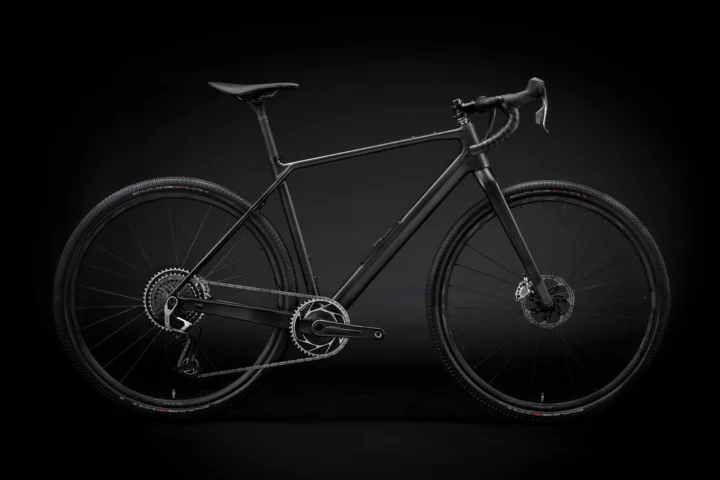

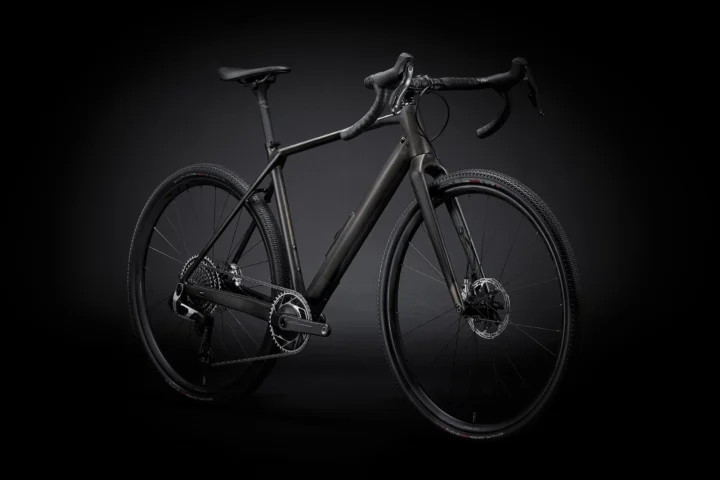

2026 Norco Search C Red XPLR

Archived: 2026 Norco Search C Red XPLR · Cyclocross/Gravel · Published sizes: 1, 2, 3, 4, 5

• Confirm the frame markings and seller description match this archived model. Note every component that differs from the published build.
• Record the frame serial number. It should be legible, unaltered and consistent with the seller’s ownership history.
• Find the size marking on the bicycle and confirm the fit before judging the condition or price.

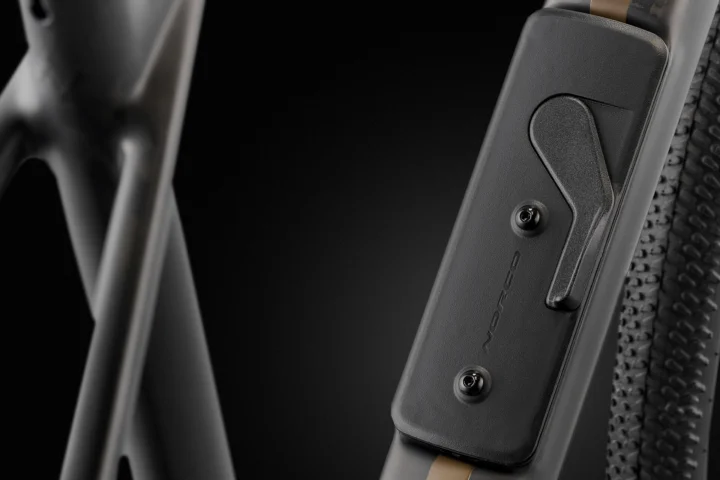

Archived: Frame: Search Carbon w/ DT Storage, UDH Compatible · Fork: Search Carbon, 51mm Offset, 12x100mm TA · Carbon Fiber

• Inspect the frame in bright light, especially the head tube, bottom-bracket area, chainstays and clamped surfaces. Look for cracks, ripples, crushed sections or signs of impact.
• Stand behind and in front of the bicycle to look for obvious frame, fork or wheel misalignment. Ask directly about crashes, transport damage and repairs.

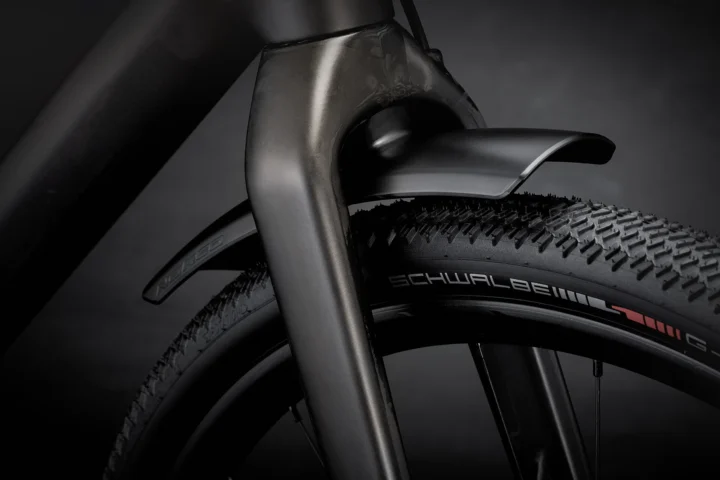

• Inspect the fork crown, blades, dropouts and visible steerer area. Check that it is straight, securely installed and free of cracks or impact damage.

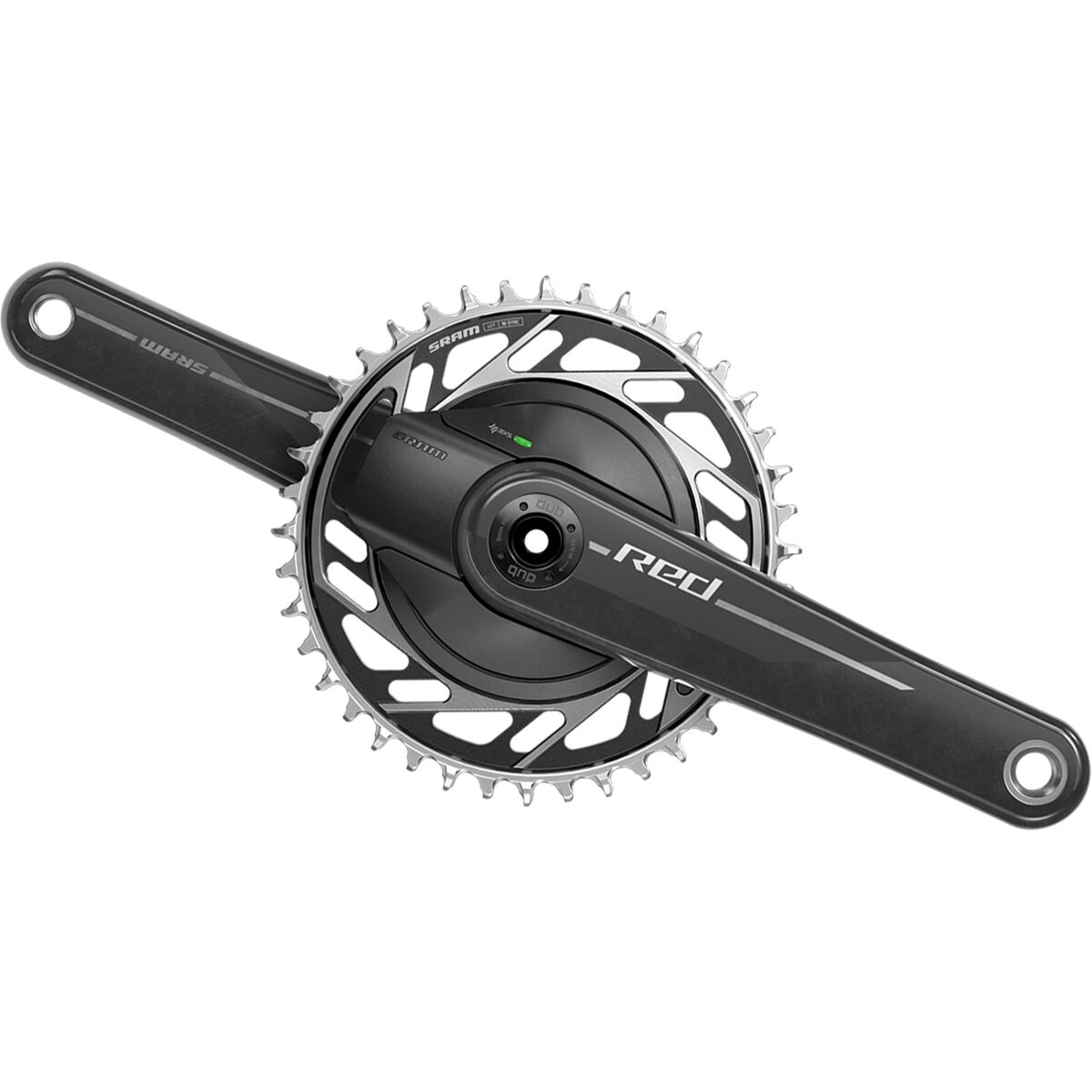

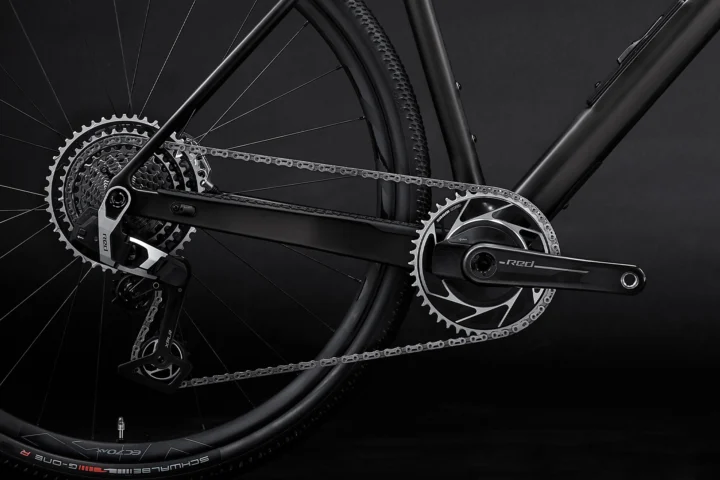

Archived: Shifters: SRAM Red AXS HRD Shift-Brake System · Rear derailleur: SRAM Red XPLR AXS Rear Derailleur, 13sp · Crankset: SRAM RED AXS Wide Power Meter 42T, 49CL, 165cm (S1,S2) - 170cm (S3,S4) - 172.5cm (S5) · Bottom bracket: SRAM Dub BSA 68 Road Wide · Cassette: SRAM XPLR XG-1391, 10-46T, 13sp · Chain: SRAM Red Flat Top, 118L

• Confirm every shift battery charges and every control operates. Shift through the full cassette under light load while checking pairing, derailleur alignment and response at both ends of the range.
• Measure chain wear with a compatible gauge and inspect chainring, cassette or freewheel teeth. A new chain does not rule out wear in the remaining drivetrain.
• Turn the cranks slowly, feel for rough bearings and check for side-to-side play. Inspect crank arms, chainring bolts and pedal threads for looseness or damage.

Archived: Brakes: (F) SRAM Red AXS HRD Shift-Brake System / (R) SRAM Red AXS HRD Shift-Brake System; Rotors: (F) SRAM Paceline X, 160mm, C-lock / (R) SRAM Paceline X, 160mm, C-lock; Levers: SRAM Red AXS HRD Shift-Brake System

• Inspect pads and braking surfaces, check the complete cable or hose path, and confirm both controls feel consistent and return cleanly.
• Before riding, test every installed brake separately at walking speed. Each should stop firmly and release cleanly without its control reaching the end of its usable travel.

Archived: Wheel size: 700c · Rims: Easton EC70 AX, 24mm ID, 21mm depth · Hubs: (F) Easton X5, 12x100mm, 28H, C-lock / (R) Easton X5, 12x142mm, XDR, 28H, C-lock · Front tire: Schwalbe G-One R Evo, Super Race, 700x45c · Rear tire: Schwalbe G-One R Evo, Super Race, 700x45c

• Spin both wheels and watch for side-to-side and vertical movement. Check spoke tension, rim condition and hub play.
• Inspect both tire casings for cuts, cracking, plugs, bulges or exposed threads and confirm the installed sizes are safe for the rims and available frame and fork clearance.
• Remove and reinstall or closely inspect both wheel-retention systems. Axles or quick releases should tighten correctly with undamaged threads, hardware and dropouts.

Archived: Headset: FSA Integrated Sealed Bearings No. 42 ; Tapered 1-1/8" - 1.5" ( IS42/28.6 | IS52/40 ) · Handlebar: Easton EC90 AX, 40cm (S1,S2) - 42cm (S3) - 44cm (S4) - 46cm (S5), 16Deg · Stem: Easton EA90, 70mm, 31.8mm clamp, +/- 7Deg · Seatpost: Easton EC90, 27.2mm, 0Deg Offset, 350mm length · Saddle: Fizik Vento Argo X1

• Apply the front brake and rock the bike to check for headset play or notchiness. Inspect the stem, handlebar and clamp zones, then confirm every fastener and control is secure.
• Check that the seatpost moves for adjustment and that the saddle, post and clamp hold securely without cracks, severe corrosion or damaged hardware.

• Before riding, confirm both wheels are secure, tires are safe, both brakes function, and the headset, handlebar, stem, cranks and pedals have no looseness.
• Begin at low speed. Test steering, braking and shifting progressively, then load the drivetrain and suspension only after the basic safety checks pass.
• Listen and feel for repeated knocks, grinding, skipping, brake pulsation or movement at joints. Stop the test if the bicycle cannot be controlled safely.
