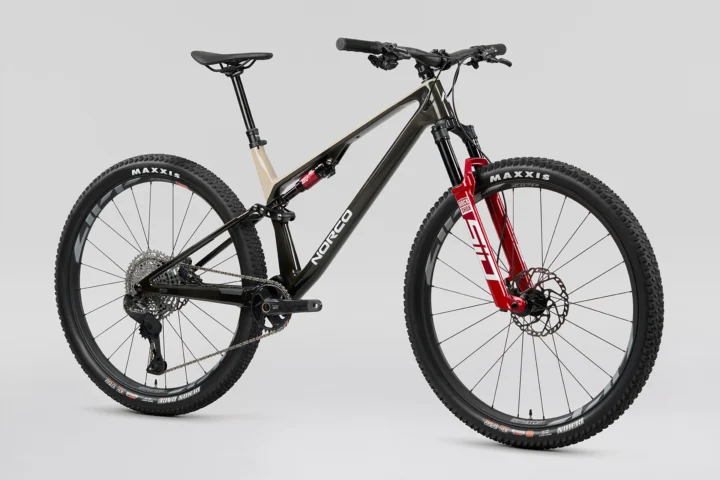

2026 Norco Revolver C1 120

Archived: 2026 Norco Revolver C1 120 · Mountain · Published sizes: 1, 2, 3, 4, 5

• Confirm the frame markings and seller description match this archived model. Note every component that differs from the published build.
• Record the frame serial number. It should be legible, unaltered and consistent with the seller’s ownership history.
• Find the size marking on the bicycle and confirm the fit before judging the condition or price.

Archived: Frame: Carbon Frame, 115mm Travel, UDH, Eagle Transmission Compatible, Ride Aligned™ · Fork: Rockshox Sid Ultimate 3P, 120mm, 44mm offset

• Inspect the frame in bright light, especially the head tube, bottom-bracket area, chainstays and clamped surfaces. Look for cracks, ripples, crushed sections or signs of impact.
• Stand behind and in front of the bicycle to look for obvious frame, fork or wheel misalignment. Ask directly about crashes, transport damage and repairs.

Archived: Fork: Rockshox Sid Ultimate 3P, 120mm, 44mm offset · Rear shock: Rockshox SIDLuxe Ultimate, 190x42.5mm, standard

• Inspect the fork stanchions for scratches or coating wear, look for oil or dirt rings at the seals, and cycle the fork through its travel while checking for binding or bushing play.
• Inspect the shock shaft and seals, cycle the rear suspension through its travel and check for oil, air loss, binding or unusual top-out and bottom-out noises.
• Hold the rear brake and load the suspension from several directions. Check pivots, bearings and mounting hardware for knock, looseness or side play.
• Ask for dated fork, shock and pivot-service records. A clean exterior does not establish the condition of internal seals, oil, bushings or bearings.

Archived: Shifters: Shimano XTR SW-M9250-IR, I-spec · Rear derailleur: Shimano XTR RD-9250 Di2, 12sp, SGS · Crankset: Shimano Deore XT FC-M8200, 34T, CL55, 165mm (S1), 170mm (S2,S3) 175mm (S4,S5) · Bottom bracket: Shimano BB-MT501, BSA 73mm · Cassette: Shimano XTR CS-M9200-12, 10-51T, 12sp · Chain: Shimano XTR CN-M9100, 12sp

• Confirm every shift battery charges and every control operates. Shift through the full cassette under light load while checking pairing, derailleur alignment and response at both ends of the range.
• Measure chain wear with a compatible gauge and inspect chainring, cassette or freewheel teeth. A new chain does not rule out wear in the remaining drivetrain.
• Turn the cranks slowly, feel for rough bearings and check for side-to-side play. Inspect crank arms, chainring bolts and pedal threads for looseness or damage.

Archived: Brakes: (F) Shimano Deore XT BR-M8220, Metal pads / (R) Shimano Deore XT BR-M8220, Metal pads; Rotors: (F) Shimano SM-RT66, 180mm, 6-bolt / (R) Shimano SM-RT66, 160mm, 6-bolt; Levers: Shimano Deore XT BL-M8220

• Inspect pads and braking surfaces, check the complete cable or hose path, and confirm both controls feel consistent and return cleanly.
• Before riding, test every installed brake separately at walking speed. Each should stop firmly and release cleanly without its control reaching the end of its usable travel.

Archived: Wheel size: 29" · Rims: Zipp 1Zero Hitop S Carbon, 30mm ID, 29" · Hubs: (F) Zipp 1Zero Hitop S, 15x110mm Boost, 6-bolt / (R) Zipp 1Zero Hitop S, 12x148mm Boost, Microspline, 6-bolt · Front tire: Maxxis Rekon, 3C Maxx Terra EXO, 29x2.40" · Rear tire: Maxxis Rekon Race, 3C Maxx Speed EXO 29x2.40"

• Spin both wheels and watch for side-to-side and vertical movement. Check spoke tension, rim condition and hub play. Inspect the carbon rims closely for impact marks, cracks, delamination or damage around spoke holes and bead hooks.
• Inspect both tire casings for cuts, cracking, plugs, bulges or exposed threads and confirm the installed sizes are safe for the rims and available frame and fork clearance.
• Remove and reinstall or closely inspect both wheel-retention systems. Axles or quick releases should tighten correctly with undamaged threads, hardware and dropouts.

Archived: Headset: FSA No 42/48ACB Integrated Headset, Tapered 1-1/8" - 1.5" · Handlebar: Race Face ERA35, 760mm (S1,S2) / 780 (S3,S4,S5), 20mm rise · Stem: Alloy CNC, 50mm Length, 35mm Clamp · Seatpost: TranzX YSI36, 31.6mm, 120mm (S1, S2) -150mm (S3) -170mm (S4) - 200mm (S5) · Saddle: Fizik Terra Ridon MG Rail

• Apply the front brake and rock the bike to check for headset play or notchiness. Inspect the stem, handlebar and clamp zones, then confirm every fastener and control is secure.
• Check that the seatpost moves for adjustment and that the saddle, post and clamp hold securely without cracks, severe corrosion or damaged hardware.

• Before riding, confirm both wheels are secure, tires are safe, both brakes function, and the headset, handlebar, stem, cranks and pedals have no looseness.
• Begin at low speed. Test steering, braking and shifting progressively, then load the drivetrain and suspension only after the basic safety checks pass.
• Listen and feel for repeated knocks, grinding, skipping, brake pulsation or movement at joints. Stop the test if the bicycle cannot be controlled safely.
