Velopedia Bicycle Archive

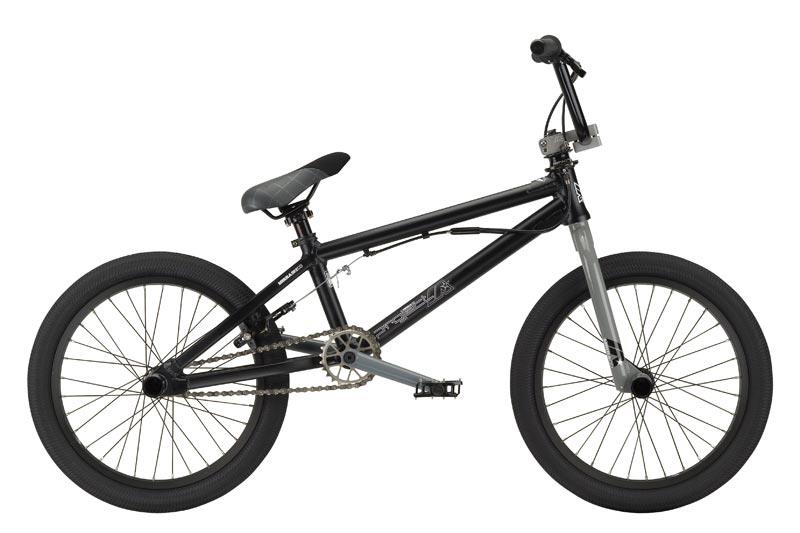

2009 Mirraco Project 18
BMX bicycle from the Velopedia specification archive.
- Original MSRP
- $0.00
- Sizes
- 18" TT
- Colors
- Black Anodized
- Weight
- 19.399999999999999
- Archive ID
- 18443
Current market
Checking current listings…Frameset
| Frame Construction | TIG-welded |
|---|
| Frame Material | 6061 T6 aluminum |
|---|
| Fork Material | Chromoly, unicrown crown |
|---|
| Rear Shock | N/A |
|---|
Drivetrain
| Component Group | BMX |
|---|
| Shifters | N/A |
|---|
| Front Derailleur | N/A |
|---|
| Rear Derailleur | N/A |
|---|
| Crankset | M3 3pc Crmo, 25 teeth |
|---|
| Bottom Bracket | Euro Sealed |
|---|
| Cassette | Cassette driver |
|---|
| Rear Cogs | 1-speed, 9 teeth |
|---|
| Chain | KMC Z410 |
|---|
| Pedals | Wellgo Magnesium Jr. |
|---|
Brakes
| Brakes | Diatech 997 Magic rear brakes, Tektro 289 rear levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" FSA |
|---|
| Handlebar | 2-pc. 6061-T6 alloy 6.5" |
|---|
| Handlebar Extensions | Not included |
|---|
| Stem | M3 Downside Lite |
|---|
| Saddle | M3 Project 7mm rails |
|---|
| Seatpost | M3 alloy Micro adjust, 27.2mm diameter |
|---|
Wheels & Tires
| Hubs | M3 alloy 3/8" |
|---|
| Rims | Alloy, 32-hole |
|---|
| Spokes | Stainless, 15ga. (1.8mm) |
|---|
| Front Tire | 18 x 1.95" Duro Fantasy |
|---|
| Wheel Size | 18" wheels |
|---|
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
