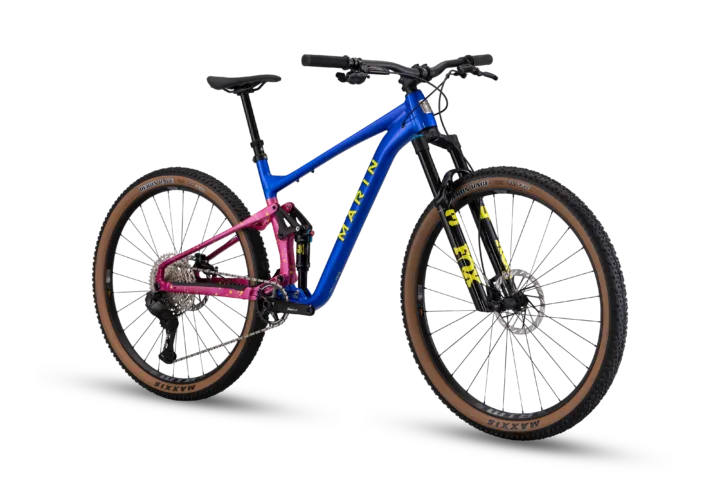

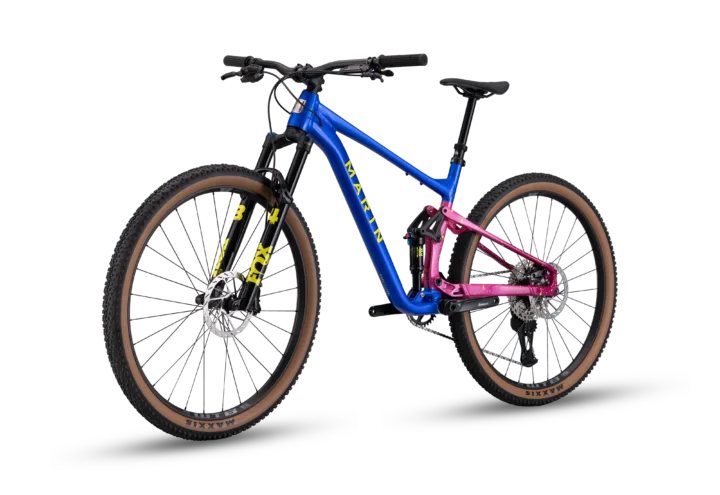

2026 Marin TAM XR

Archived: 2026 Marin TAM XR · Mountain · Published sizes: S, M, L, XL

• Confirm the frame markings and seller description match this archived model. Note every component that differs from the published build.
• Record the frame serial number. It should be legible, unaltered and consistent with the seller’s ownership history.
• Find the size marking on the bicycle and confirm the fit before judging the condition or price.

Archived: Frame: All new Series 4 Aluminum, 29" Wheels, 120mm IsoTrac Suspension Platform, Full Internal Cable Routing, Chainstay Mounted 160MM DM, 148x12mm Boost Thru-Axle, 73mm BB Shell, ISCG 05 Tabs · Fork: Fox 34SL Performance Elite, 130mm Travel, Grip X Damper, Kabolt SL Axle 110x15mm, Tapered Steerer Tube, 44mm Offset

• Look for dents or shape changes and inspect the edges of welds around the head tube, bottom bracket, seat cluster and suspension mounts for hairline cracks.
• Stand behind and in front of the bicycle to look for obvious frame, fork or wheel misalignment. Ask directly about crashes, transport damage and repairs.

Archived: Fork: Fox 34SL Performance Elite, 130mm Travel, Grip X Damper, Kabolt SL Axle 110x15mm, Tapered Steerer Tube, 44mm Offset · Rear shock: Fox Float SL Performance Elite, 3-Pos Compression Adjust, EVOL LV Air Spring, 190x45mm, 30x8m Hardware, 0.6 VC, CL+ RF CMF Tune

• Inspect the fork stanchions for scratches or coating wear, look for oil or dirt rings at the seals, and cycle the fork through its travel while checking for binding or bushing play.
• Inspect the shock shaft and seals, cycle the rear suspension through its travel and check for oil, air loss, binding or unusual top-out and bottom-out noises.
• Hold the rear brake and load the suspension from several directions. Check pivots, bearings and mounting hardware for knock, looseness or side play.
• Ask for dated fork, shock and pivot-service records. A clean exterior does not establish the condition of internal seals, oil, bushings or bearings.

Archived: Shifters: Shimano Deore Di2, 12-Speed · Rear derailleur: Shimano Deore Di2, 12-Speed, SGS · Crankset: Race Face Turbine, 32T Alloy Ring, 30mm Spindle, 170mm, 55.5mm CL · Bottom bracket: Race Face BSA Threaded 68/73 · Cassette: Shimano, Deore 12-Speed, 10-51T · Chain: KMC X-12 Silver and Black

• Confirm every shift battery charges and every control operates. Shift through the full cassette under light load while checking pairing, derailleur alignment and response at both ends of the range.
• Measure chain wear with a compatible gauge and inspect chainring, cassette or freewheel teeth. A new chain does not rule out wear in the remaining drivetrain.
• Turn the cranks slowly, feel for rough bearings and check for side-to-side play. Inspect crank arms, chainring bolts and pedal threads for looseness or damage.

Archived: Brakes: (F) SRAM Motiv Silver, 4-Piston Hydraulic Disc, HSC 180mm Rotor / (R) SRAM Motiv Silver, 4-Piston Hydraulic Disc, HSC 180mm Rotor; Levers: SRAM Motiv Silver

• Squeeze each lever firmly. It should feel consistent and return cleanly. Check levers, hoses and calipers for fluid, inspect pad thickness and contamination, and examine rotors for wear or bending.
• Before riding, test every installed brake separately at walking speed. Each should stop firmly and release cleanly without its control reaching the end of its usable travel.

Archived: Wheel size: 29" · Rims: WTB KOM Light i30, 28H · Hubs: (F) WTB X7, 110x15, Straight Pull, 28H, 6-Bolt Disc / (R) WTB X7, 148x12, Straight Pull, 28H, 6-Bolt Disc , MicroSpline FH · Front tire: Maxxis Rekon Race, 29x2.35", Folding Bead, Tubeless Ready · Rear tire: Maxxis Rekon Race, 29x2.35", Folding Bead, Tubeless Ready

• Spin both wheels and watch for side-to-side and vertical movement. Check spoke tension, rim condition and hub play.
• Inspect both tire casings for cuts, cracking, plugs, bulges or exposed threads and confirm the installed sizes are safe for the rims and available frame and fork clearance.
• Remove and reinstall or closely inspect both wheel-retention systems. Axles or quick releases should tighten correctly with undamaged threads, hardware and dropouts.
• Confirm whether the bike is actually set up tubeless, whether both tires hold pressure, and when sealant and rim tape were last serviced.

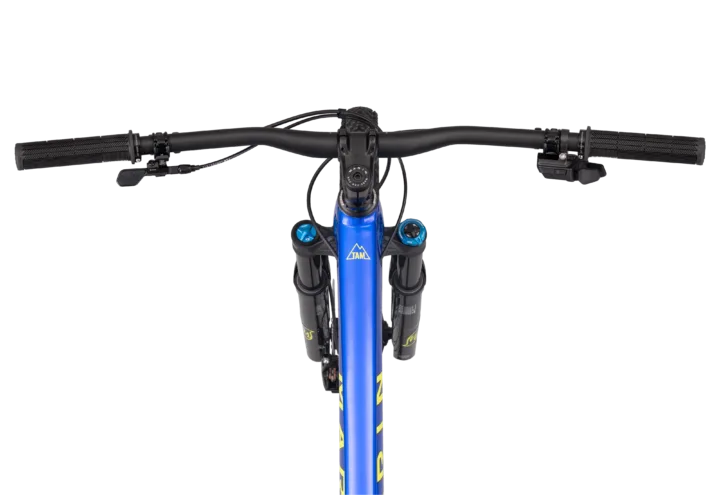

Archived: Headset: FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2” · Handlebar: Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 30mm Rise, 5º Up, 9º Back · Stem: Marin 3D Forged Alloy, 55mm · Seatpost: PNW Loam Dropper Post Gen 2+, Range Lever MMX Clamp, Adjustable Travel, 30.9mm Diameter, S = 150MM / M = 170MM / L-XL = 200MM · Saddle: Marin Speed Concept

• Apply the front brake and rock the bike to check for headset play or notchiness. Inspect the stem, handlebar and clamp zones, then confirm every fastener and control is secure.
• Cycle the dropper post repeatedly. It should reach full travel, remain extended under load and have no unusual oil, excessive rotational play or damaged remote, cable, hose or battery.

• Before riding, confirm both wheels are secure, tires are safe, both brakes function, and the headset, handlebar, stem, cranks and pedals have no looseness.
• Begin at low speed. Test steering, braking and shifting progressively, then load the drivetrain and suspension only after the basic safety checks pass.
• Listen and feel for repeated knocks, grinding, skipping, brake pulsation or movement at joints. Stop the test if the bicycle cannot be controlled safely.
