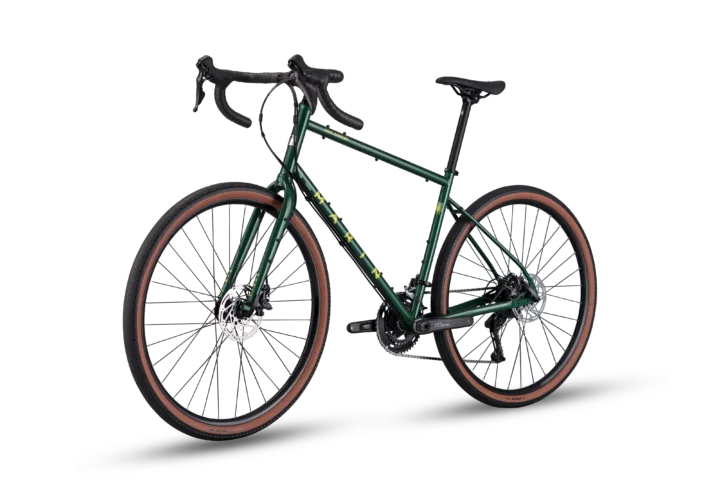

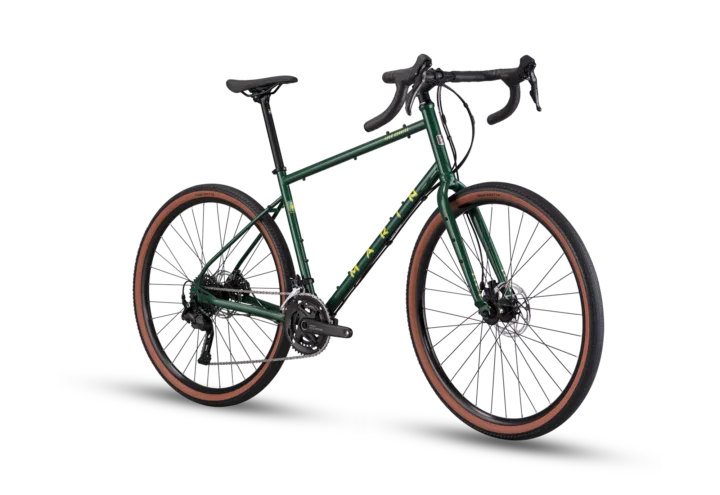

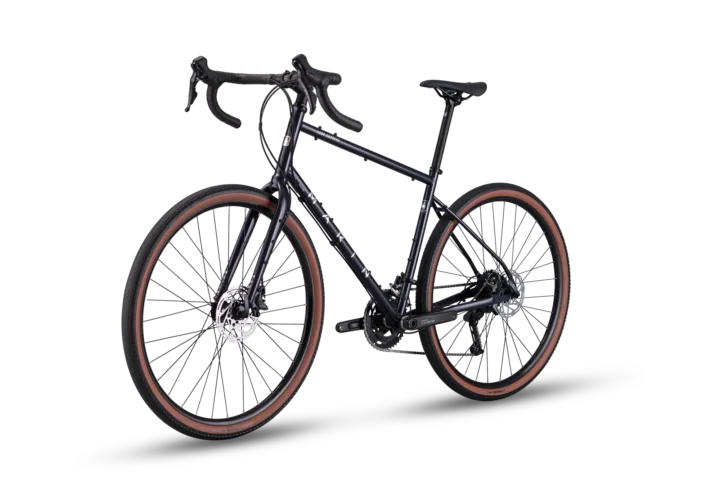

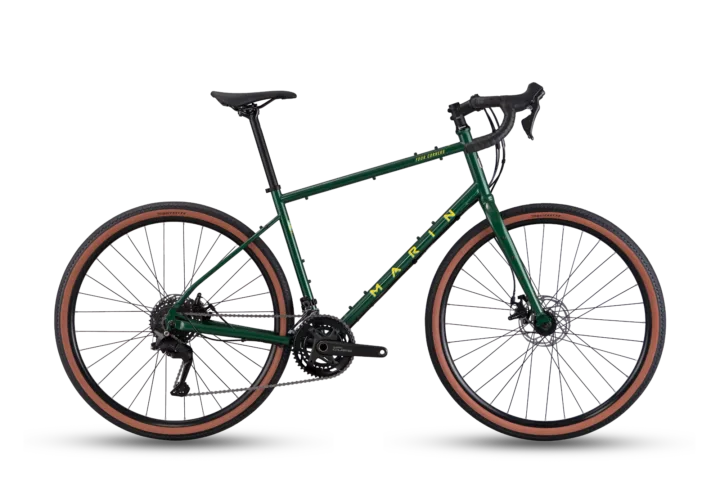

2026 Marin Four Corners 1 (CUES)
Cyclocross/Gravel bicycle from the Velopedia specification archive.
Selling this bike? Create a Bike History Report
What Velopedia knows
- Model year
- 2026
- Category
- Gravel & Cyclocross
- Original MSRP
- $1,249.00
- Sizes
- XS, S, M, L, XL
- Colors
- Purple, Green
- Geometry
- 5 manufacturer sizes · Geometry context
- Record coverage
- 22 preserved details · 7 archived images · original MSRP · preserved geometry
- Archive ID
- 900000494
Frameset
| Frame Construction | Series 1 CrMo, Size-Specific Wheels (XS, S = 650B, M, L, XL = 700C) , Biometric Geometry, Fender and Rack Mounts, Disc Mount |
|---|---|
| Fork | Series 1 CrMo, Fender, Rack, and Bottle Cage Eyelets, IS Disc Mount |
Drivetrain
| Shifters | Shimano CUES Dual Control, STU3030, 2x9 |
|---|---|
| Front Derailleur | Shimano CUES FDU6030 |
| Rear Derailleur | Shimano CUES RDU3020, 9-speed |
| Crankset | Shimano CUES, FCU6030-2, 46/32T |
| Bottom Bracket | Shimano Outboard Bearing |
| Cassette | Shimano CUES, CSLG300, 11-36T |
| Chain | Shimano LinkGlide LG500 |
| Pedals | Nylon Platform |
Brakes
| Brakes | (F) Tektro Spyre-C Road Mechanical Disc, 160mm Rotor / (R) Tektro Spyre-C Road Mechanical Disc, 160mm Rotor; Levers: Shimano CUES w/ Integrated Shifters |
|---|
Cockpit & Contact Points
| Headset | FSA No.8D, Sealed Cartridge Bearings |
|---|---|

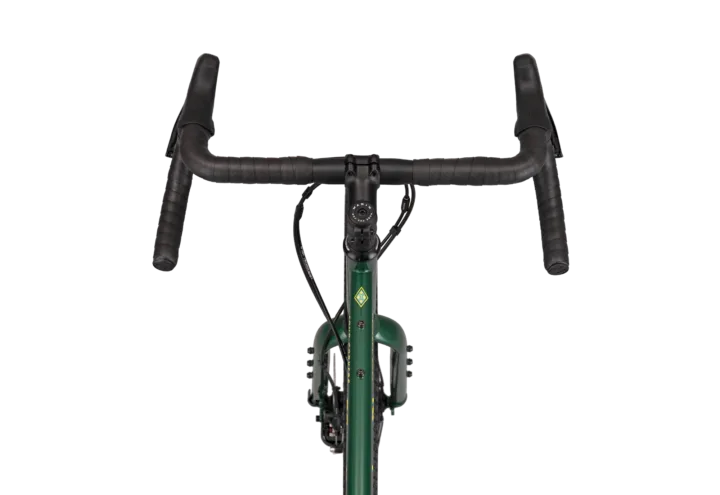

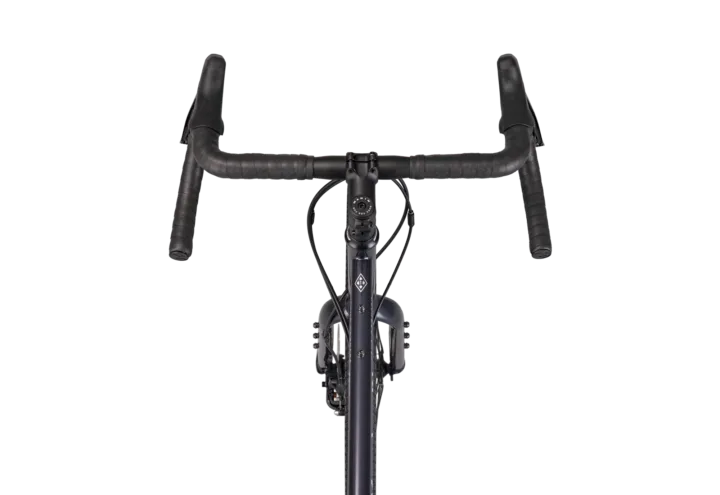

| Handlebar | Marin Butted Alloy, Compact 16º Flared Drop |
| Stem | Marin 3D Forged Alloy |
| Saddle | Marin MTB |
| Seatpost | Marin Alloy, 27.2mm |
Wheels & Tires
| Hubs | (F) Forged Aluminum Alloy, Disc, 32H / (R) Forged Aluminum Alloy, Disc, 32H |
|---|---|
| Rims | Marin Aluminum, Double Wall, Disc Specific |
| Spokes | 14g Black Stainless Steel |
| Front Tire | Vee Tire Co., QuickStyk, Wire Bead, 700/650x45 |
| Rear Tire | Vee Tire Co., QuickStyk, Wire Bead, 700/650x45 |
| Wheel Size | 650B; 700C |
Size-specific frame data
Geometry
Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.
| Measurement | XS | S | M | L | XL |
|---|---|---|---|---|---|
| Seat tube | 381 mm | 422 mm | 462 mm | 495 mm | 528 mm |
| Effective top tube | 532 mm | 553 mm | 586 mm | 617 mm | 647 mm |
| Head tube | 167 mm | 188 mm | 188 mm | 209 mm | 252 mm |
| Head-tube angle | 70° | 70° | 71° | 71° | 71° |
| Seat-tube angle | 74.5° | 73.5° | 73.5° | 72.5° | 72° |
| Chainstay / rear center | 432 mm | 432 mm | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1035 mm | 1047 mm | 1087 mm | 1107 mm | 1132 mm |
| Bottom-bracket drop | 53.5 mm | 53.5 mm | 72 mm | 72 mm | 72 mm |
| Bottom-bracket height | 291 mm | 291 mm | 288.5 mm | 288.5 mm | 288.5 mm |
| Reach | 376.7 mm | 381 mm | 403.3 mm | 412.6 mm | 426.6 mm |
| Stack | 560 mm | 580 mm | 618 mm | 648 mm | 679 mm |
| Standover height | 668 mm | 707 mm | 745 mm | 777 mm | 810 mm |
| Fork offset / rake | 43 mm | 43 mm | 49 mm | 49 mm | 49 mm |
| Crank length | 170 mm | 170 mm | 175 mm | 175 mm | 175 mm |
| Stem length | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Handlebar width | 400 mm | 400 mm | 420 mm | 420 mm | 440 mm |
Geometry source: Manufacturer HTML geometry table ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
Geometry tools
Analyze a published size
XS geometry
Archive context: Its bottom-bracket drop of 53.5 mm sits toward the shallower-drop end. Its stack of 560 mm sits toward the taller end. Its wheelbase of 1035 mm sits somewhat longer than typical.
Compared with 33 distinct cyclocross/gravel geometries in the XS-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze XS geometry S geometry
Archive context: Its bottom-bracket drop of 53.5 mm sits toward the shallower-drop end. Its stack of 580 mm sits toward the taller end. The seat angle of 73.5° sits toward the more relaxed end.
Compared with 79 distinct cyclocross/gravel geometries in the Small-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze S geometry M geometry
Archive context: The chainstay of 450 mm sits toward the longer rear-center end. Its stack of 618 mm sits toward the taller end. Its wheelbase of 1087 mm sits toward the longer end.
Compared with 91 distinct cyclocross/gravel geometries in the Medium-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze M geometry L geometry
Archive context: The chainstay of 450 mm sits toward the longer rear-center end. The seat angle of 72.5° sits toward the more relaxed end. Its stack of 648 mm sits toward the taller end.
Compared with 64 distinct cyclocross/gravel geometries in the Large-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze L geometry XL geometry
Archive context: The seat angle of 72° sits toward the more relaxed end. The chainstay of 450 mm sits toward the longer rear-center end. Its stack of 679 mm sits toward the taller end.
Compared with 70 distinct cyclocross/gravel geometries in the XL-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze XL geometry Parts & serviceability
Find replacement parts
ChainShimano LinkGlide LG500Exact archived model
CassetteShimano CUES, CSLG300, 11-36TNamed component · published drivetrain speed — verify exact version
Bottom bracketShimano Outboard BearingNamed archived component — verify dimensions
More qualified parts (6)
CranksetShimano CUES, FCU6030-2, 46/32TComponent family — verify exact version
Front derailleurShimano CUES FDU6030Named component · published drivetrain speed — verify exact version
Rear derailleurShimano CUES RDU3020, 9-speedComponent family — verify exact version
ShiftersShimano CUES Dual Control, STU3030, 2x9Component family — verify exact version
Seatpost27.2 mm seatpostPublished diameter — verify length and setback
HeadsetFSA No.8D, Sealed Cartridge BearingsNamed archived component — verify dimensions
Searches use the archived manufacturer specification, not the components currently installed on a particular bicycle. Confirm the exact model, size and fit before ordering. As an Amazon Associate I earn from qualifying purchases. Velopedia may also earn from qualifying eBay purchases. Velopedia may also earn from qualifying retailer purchases. Commercial relationships do not influence Archive specifications or analysis.
Used-bike inspection
If you’re buying this bike used
Before any test ride: both brakes should stop the bike firmly and release cleanly; both wheels should run true and be securely attached; tires should have no casing damage; and the headset, handlebar, stem, cranks and pedals should have no looseness or play.
Follow the full used-bike inspection order →- FrameCheck paint chips, vent holes and the inside of the seat tube for corrosion. Also look for dents, bent tubes and cracking around welded or brazed joints.Inspect the frame and fork →
- BrakesMake sure both cables move freely and the calipers release cleanly. Check pad thickness, rotor wear and rotor alignment.Inspect the brakes →
- DrivetrainShift through every gear under light load and measure chain wear. Confirm that the shifter, derailleur, chain and cassette belong to the same 9-speed system.Check drivetrain wear →
- Wheels & tiresSpin both wheels and watch the rims for side-to-side or vertical movement. Check for dents, cracks, loose or uneven spokes and hub play, then inspect both tire casings for cuts, cracking or exposed threads.Check wheels and tires →
Bike-specific inspection checklist 19 checks based on 5 archived component groups Open checklistClose checklist
This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.
Identity and fit
Follow the full used-bike inspection order →Archived: 2026 Marin Four Corners 1 (CUES) · Cyclocross/Gravel · Published sizes: XS, S, M, L, XL
Frame and fork
Inspect the frame and fork →Archived: Frame: Series 1 CrMo, Size-Specific Wheels (XS, S = 650B, M, L, XL = 700C) , Biometric Geometry, Fender and Rack Mounts, Disc Mount · Fork: Series 1 CrMo, Fender, Rack, and Bottle Cage Eyelets, IS Disc Mount
Drivetrain
Check drivetrain wear →Archived: Shifters: Shimano CUES Dual Control, STU3030, 2x9 · Front derailleur: Shimano CUES FDU6030 · Rear derailleur: Shimano CUES RDU3020, 9-speed · Crankset: Shimano CUES, FCU6030-2, 46/32T · Bottom bracket: Shimano Outboard Bearing · Cassette: Shimano CUES, CSLG300, 11-36T · Chain: Shimano LinkGlide LG500
Brakes
Inspect the brakes →Archived: Brakes: (F) Tektro Spyre-C Road Mechanical Disc, 160mm Rotor / (R) Tektro Spyre-C Road Mechanical Disc, 160mm Rotor; Levers: Shimano CUES w/ Integrated Shifters
Wheels and tires
Check wheels and tires →Archived: Wheel size: 650B; 700C · Rims: Marin Aluminum, Double Wall, Disc Specific · Hubs: (F) Forged Aluminum Alloy, Disc, 32H / (R) Forged Aluminum Alloy, Disc, 32H · Front tire: Vee Tire Co., QuickStyk, Wire Bead, 700/650x45 · Rear tire: Vee Tire Co., QuickStyk, Wire Bead, 700/650x45
Controls and contact points
Archived: Headset: FSA No.8D, Sealed Cartridge Bearings · Handlebar: Marin Butted Alloy, Compact 16º Flared Drop · Stem: Marin 3D Forged Alloy · Seatpost: Marin Alloy, 27.2mm · Saddle: Marin MTB · Pedals: Nylon Platform
Before and during the test ride
Follow the full used-bike inspection order →Build relationships are limited to the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
