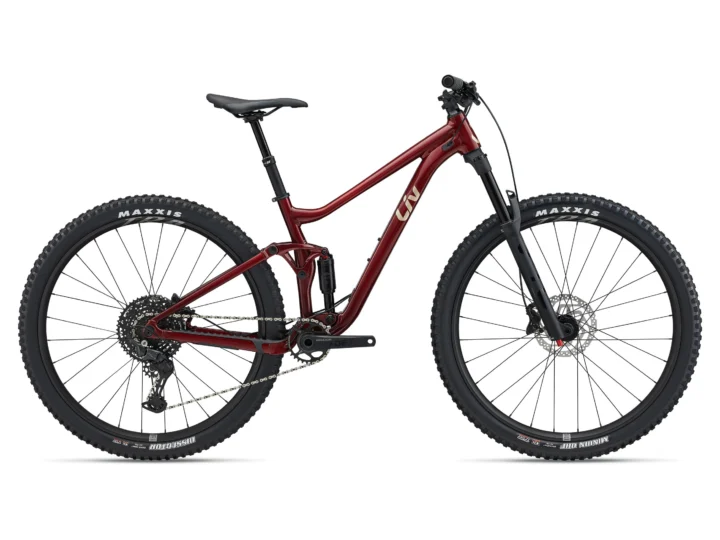

2025 Liv Embolden
Original manufacturer specifications including 14.4 kg (31 lbs 12 oz) - Size (S) published weight, geometry for 5 published sizes.
Selling this bike? Create a shareable bike record
What Velopedia knows
- Model year
- 2025
- Category
- Mountain
- Original MSRP
- $1,900.00
- Sizes
- 27.5": XS, S, 29": S, M, L
- Colors
- Black Diamond, Sangria
- Weight
- 14.4 kg (31 lbs 12 oz) - Size (S)
- Geometry
- 5 manufacturer sizes · Geometry context
- Record coverage
- 22 preserved details · 2 archived images · original MSRP · preserved geometry
- Archive ID
- 900002141
Frameset
| Frame Construction | ALUXX-grade aluminum, 120mm FlexPoint Suspension, 12x148mm thru-axle |
|---|---|
| Frame Material | Aluminum |
| Fork | Giant STL 34 RCL, 140mm, Boost 15x110 QR |
| Rear Shock | Suntour Raidon R, 184x44mm, recommended sag 30% |
Drivetrain
| Shifters | Shimano Cues SL-6000, 1x10 |
|---|---|
| Front Derailleur | N/A |
| Rear Derailleur | Shimano CuesRD-U6000, Shadow+ |
| Crankset | Shimano CUES FC-U6000, 30t27.5": XS: 165mm, S: 170mmPraxis Cadet 30t29": S: 170mm, M: 170mm, L: 170mm |
| Bottom Bracket | 27.5" Shimano, threaded29" Praxis threaded |
| Cassette | Shimano CUES, CS-LG300, 11x48 |
| Chain | KMC X-11 |
Brakes
| Brakes | Shimano BR-MT420, hydraulic, Shimano RT-26 rotors [F]180mm, [R]180mm |
|---|
Cockpit & Contact Points
| Handlebar | Giant Contact TR35, 760x35mm, 20mm rise, alloy |
|---|---|
| Stem | Giant Contact SL 35 27.5": XS: 40mm, S: 50mm 29": S: 50mm, M: 50mm, L: 60mm |
| Saddle | Liv Sylvia |
| Seatpost | Giant Contact Switch AT dropper, remote 27.5": XS: 70-100mm travel / 30.9 x 315mmS: 70-100mm travel / 30.9 x 315mm29":S: 70-100mm travel / 30.9 x 315mmM: 110-140mm travel / 30.9 x 395mmL: 110-140mm travel / 30.9 x 395mm |
Wheels & Tires
| Hubs | 27.5" and 29": [F] Giant MTB alloy, six-bolt, [R] Giant MTB alloy, 72 POE (Points of Engagement), six-bolt, HG driver body |
|---|---|
| Rims | 27.5" and 29": Giant TRA 2 wheelset, 6061 alloy, hookless, 30mm inner width, 40mm outer width, 21mm height, Wide Guard Technology |
| Spokes | Sapim, 28, J-bend |
| Front Tire | 27.5": [F] Maxxis Minion DHF 27.5x2.6, EXO, TR [R] Maxxis Dissector 27.5x2.6, Dual, EXO, TR, tubeless 29": [F] Maxxis Minion DHF 29x2.5 WT, EXO, TR [R] Maxxis Dissector 29x2.4 WT, Dual, EXO, TR, tubeless |
| Rear Tire | 27.5": [F] Maxxis Minion DHF 27.5x2.6, EXO, TR [R] Maxxis Dissector 27.5x2.6, Dual, EXO, TR, tubeless 29": [F] Maxxis Minion DHF 29x2.5 WT, EXO, TR [R] Maxxis Dissector 29x2.4 WT, Dual, EXO, TR, tubeless |
Size-specific frame data
Geometry
Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.
| Measurement | XS (27.5") | S (27.5") | S (29") | M (29") | L (29") |
|---|---|---|---|---|---|
| Seat tube | 380 mm | 406 mm | 405 mm | 420 mm | 440 mm |
| Top tube | 565 mm | 580 mm | 565 mm | 585 mm | 605 mm |
| Head tube | 95 mm | 100 mm | 105 mm | 115 mm | 125 mm |
| Head-tube angle | 67.5° | 67.5° | 67° | 67° | 67° |
| Seat-tube angle | 74° | 74° | 76° | 76° | 76° |
| Chainstay / rear center | 435 mm | 435 mm | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1109 mm | 1125 mm | 1147 mm | 1169 mm | 1190 mm |
| Bottom-bracket drop | 20 mm | 20 mm | 40 mm | 40 mm | 40 mm |
| Reach | 404 mm | 418 mm | 412 mm | 430 mm | 447 mm |
| Stack | 560 mm | 565 mm | 614 mm | 623 mm | 632 mm |
| Standover height | 690 mm | 705 mm | 712 mm | 734 mm | 755 mm |
| Fork offset / rake | 43 mm | 43 mm | 51 mm | 51 mm | 51 mm |
| Trail | 103.6 mm | 103.6 mm | 105.3 mm | 105.3 mm | 105.3 mm |
| Crank length | 165 mm | 170 mm | 170 mm | 170 mm | 170 mm |
| Stem length | 40 mm | 40 mm | 40 mm | 50 mm | 50 mm |
| Handlebar width | 750 mm | 750 mm | 740 mm | 760 mm | 780 mm |
| Wheel size | 27.5" | 27.5" | 29" | 29" | 29" |
Geometry source: Liv first-party size geometry table ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
Geometry tools
Analyze a published size
XS (27.5") geometry
Archive context: Its stack of 560 mm sits toward the lower end. The seat angle of 74° sits toward the more relaxed end. The head angle of 67.5° sits toward the steeper end.
Compared with 61 distinct mountain geometries in the XS-equivalent size cohort from model years 2023–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze XS (27.5") geometry S (27.5") geometry
Archive context: Its stack of 565 mm sits toward the lower end. Its trail of 103.6 mm sits toward the lower-trail end. Its bottom-bracket drop of 20 mm sits toward the shallower-drop end.
Compared with 195 distinct mountain geometries in the Small-equivalent size cohort from model years 2023–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze S (27.5") geometry S (29") geometry
Archive context: Its trail of 105.3 mm sits toward the lower-trail end. Its reach of 412 mm sits toward the shorter end. The head angle of 67° sits somewhat steeper than typical.
Compared with 195 distinct mountain geometries in the Small-equivalent size cohort from model years 2023–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze S (29") geometry M (29") geometry
Archive context: Its reach of 430 mm sits toward the shorter end. Its trail of 105.3 mm sits toward the lower-trail end. The head angle of 67° sits toward the steeper end.
Compared with 199 distinct mountain geometries in the Medium-equivalent size cohort from model years 2023–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze M (29") geometry L (29") geometry
Archive context: Its reach of 447 mm sits toward the shorter end. Its trail of 105.3 mm sits toward the lower-trail end. The head angle of 67° sits somewhat steeper than typical.
Compared with 193 distinct mountain geometries in the Large-equivalent size cohort from model years 2023–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze L (29") geometry Parts & serviceability
Find replacement parts
KMC X-11
Exact archived model
Shimano CUES, CS-LG300, 11x48
Interpreted as Shimano CUES · 10-speed Exact archived model
Shimano BR-MT420, hydraulic
Brake model identified — verify pad shape
More qualified parts (2)
Shimano CUES FC-U6000, 30t27.5": XS: 165mm, S: 170mmPraxis Cadet 30t29": S: 170mm, M: 170mm, L: 170mm
Exact archived model
Shimano Cues SL-6000, 1x10
Interpreted as Shimano CUES · 10-speed Exact archived model
Searches use the archived manufacturer specification, not the components currently installed on a particular bicycle. Confirm the exact model, size and fit before ordering. As an Amazon Associate I earn from qualifying purchases. Velopedia may also earn from qualifying eBay purchases. Commercial relationships do not influence Archive specifications or analysis.
Used-bike inspection
If you’re buying this bike used
Before any test ride: both brakes should stop the bike firmly and release cleanly; both wheels should run true and be securely attached; tires should have no casing damage; and the headset, handlebar, stem, cranks and pedals should have no looseness or play.
Follow the full used-bike inspection order →- FrameLook closely for dents and hairline cracks around welds, the head tube and bottom-bracket area. Cosmetic scratches matter less than a change in shape or a crack line.Inspect the frame and fork →
- BrakesTest each brake separately and confirm it stops firmly and releases cleanly. Inspect the pads and braking surfaces for wear or contamination, and check the cables or hoses for damage.Inspect the brakes →
- SuspensionAsk when the rear shock was last serviced. Check the shaft and seals for damage or oil, cycle the shock through its travel and test every suspension pivot for play.Evaluate the suspension →
- DrivetrainShift through the full range under light load, measure chain wear and inspect the cassette or freewheel teeth. Skipping or hesitation can indicate wear, poor adjustment or mismatched parts.Check drivetrain wear →
- Wheels & tiresSpin both wheels and watch the rims for side-to-side or vertical movement. Check for dents, cracks, loose or uneven spokes and hub play, then inspect both tire casings for cuts, cracking or exposed threads.Check wheels and tires →
Bike-specific inspection checklist 22 checks based on 6 archived component groups Open checklistClose checklist
This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.
Identity and fit
Follow the full used-bike inspection order →Archived: 2025 Liv Embolden · Mountain · Published sizes: 27.5": XS, S, 29": S, M, L
Frame and fork
Inspect the frame and fork →Archived: Frame: ALUXX-grade aluminum, 120mm FlexPoint Suspension, 12x148mm thru-axle · Fork: Giant STL 34 RCL, 140mm, Boost 15x110 QR
Suspension
Evaluate the suspension →Archived: Fork: Giant STL 34 RCL, 140mm, Boost 15x110 QR · Rear shock: Suntour Raidon R, 184x44mm, recommended sag 30%
Drivetrain
Check drivetrain wear →Archived: Shifters: Shimano Cues SL-6000, 1x10 · Rear derailleur: Shimano CuesRD-U6000, Shadow+ · Crankset: Shimano CUES FC-U6000, 30t27.5": XS: 165mm, S: 170mmPraxis Cadet 30t29": S: 170mm, M: 170mm, L: 170mm · Bottom bracket: 27.5" Shimano, threaded29" Praxis threaded · Cassette: Shimano CUES, CS-LG300, 11x48 · Chain: KMC X-11
Brakes
Inspect the brakes →Archived: Brakes: Shimano BR-MT420, hydraulic, Shimano RT-26 rotors [F]180mm, [R]180mm
Wheels and tires
Check wheels and tires →Archived: Rims: 27.5" and 29": Giant TRA 2 wheelset, 6061 alloy, hookless, 30mm inner width, 40mm outer width, 21mm height, Wide Guard Technology · Hubs: 27.5" and 29": [F] Giant MTB alloy, six-bolt, [R] Giant MTB alloy, 72 POE (Points of Engagement), six-bolt, HG driver body
Controls and contact points
Archived: Handlebar: Giant Contact TR35, 760x35mm, 20mm rise, alloy · Stem: Giant Contact SL 35 27.5": XS: 40mm, S: 50mm 29": S: 50mm, M: 50mm, L: 60mm · Saddle: Liv Sylvia
Before and during the test ride
Follow the full used-bike inspection order →Build relationships are limited to the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
