Velopedia Bicycle Archive

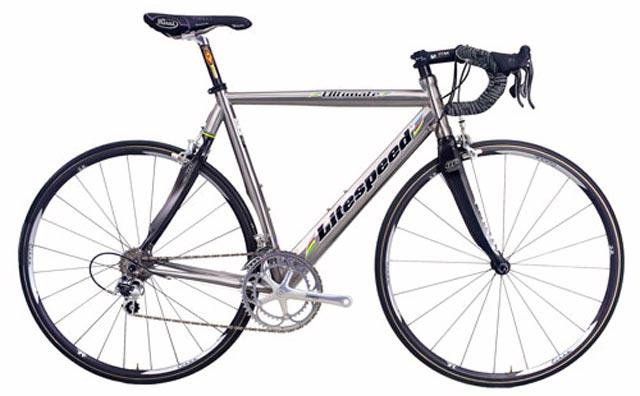

2004 Litespeed Ultimate Ultegra
Road race & triathlon bicycle from the Velopedia specification archive.
- Original MSRP
- $4,795.00
- Sizes
- 49cm, 51cm, 53cm, 55cm, 57cm, 59cm, 61cm, 63cm
- Colors
- Polished
- Archive ID
- 92637
Current market
Checking current listings…Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | 3Al/2.5V titanium/carbon fiber composite |
| Fork | Lite TEC |
| Fork Material | Carbon fiber composite, aero crown |
| Rear Shock | N/A |
Drivetrain
| Component Group | Shimano Ultegra |
|---|---|
| Shifters | Shimano Ultegra STI Dual Control |
| Front Derailleur | Shimano Ultegra |
| Rear Derailleur | Shimano Ultegra SS |
| Crankset | Shimano Ultegra, 39/53 teeth |
| Bottom Bracket | Shimano BB-6500, 109.5mm spindle |
| BB Shell Width | 68mm English |
| Rear Cogs | 9-speed, 12 - 23 teeth |
| Chain | Shimano CN-HG73, 1/2 x 3/32" |
| Pedals | N/A |
Brakes
| Brakes | Shimano Ultegra Dual Pivot brakes, Shimano Ultegra STI Dual Control levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" threadless |
|---|---|
| Handlebar | Buyer's choice |
| Handlebar Extensions | Not included |
| Stem | Buyer's choice |
| Saddle | Buyer's choice |
| Seatpost | Buyer's choice |
Wheels & Tires
| Hubs | Mavic Ksyrium Equipe |
|---|---|
| Rims | Mavic Ksyrium Equipe, 24-hole/28-hole |
| Spokes | Mavic stainless steel, 14ga. (2.0mm) straight gauge |
| Spoke Nipples | Brass nipples |
| Front Tire | 700 x 23c Continental Grand Prix 3000 |
| Wheel Size | 700c wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
