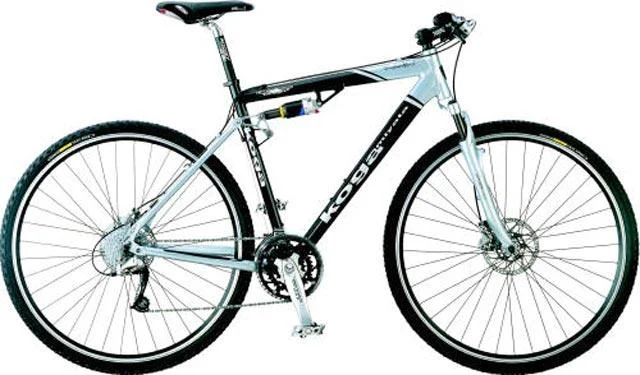

2004 Koga Miyata TerraLiner Alloy - S
City/commuter bicycle from the Velopedia specification archive.
- Original MSRP
- $0.00
- Sizes
- 47cm, 50cm, 54cm, 57cm, 60cm
- Colors
- Metallic Black/Silver
- Weight
- 28.6
- Archive ID
- 31924
Current market
Checking current listings…Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | 7005 aluminum |
| Fork | InSync Odesa Mag, 45mm travel |
| Fork Material | Aluminum/magnesium, single crown |
| Rear Shock | Air shock |
Drivetrain
| Component Group | Mountain Mix |
|---|---|
| Shifters | Shimano Deore XT Dual Control |
| Front Derailleur | Shimano Deore XT |
| Rear Derailleur | Shimano Deore XT |
| Crankset | Shimano Deore XT, 22/32/44 teeth |
| Bottom Bracket | Shimano Deore XT |
| Rear Cogs | 9-speed, 11 - 32 teeth |
| Chain | Shimano CN-HG93, 1/2 x 3/32" |
| Pedals | Shimano PD-M545 |
Brakes
| Brakes | Shimano Deore XT M765 Hydraulic brakes, Shimano Deore XT Dual Control levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" integrated Cane Creek IS-2 Integrated |
|---|---|
| Handlebar | Ritchey Pro Rizer 31.8 |
| Handlebar Extensions | N/A |
| Stem | Ritchey Pro 31.8 |
| Saddle | Selle Italia Trimatic 2 Genius Gel |
| Seatpost | Ritchey Pro, 26.8mm diameter |
Wheels & Tires
| Hubs | Shimano Deore XT |
|---|---|
| Rims | Exal ZX19, 36-hole |
| Spokes | Sapim stainless steel |
| Spoke Nipples | Brass nipples |
| Front Tire | 700 x 40c Schwalbe Fast Fred |
| Wheel Size | 700c wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
