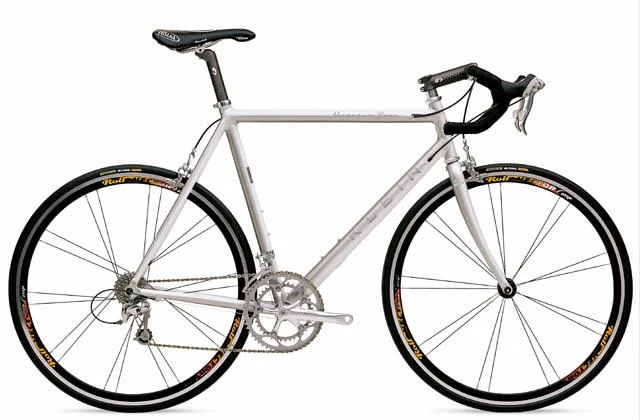

2002 Klein Quantum Race Triple
Road race & triathlon bicycle from the Velopedia specification archive.
- Original MSRP
- $2,529.99
- Sizes
- 49cm, 52cm, 54cm, 56cm, 58cm, 61cm
- Colors
- Blue
- Weight
- 18.2
- Archive ID
- 37360
Image not yet recovered
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | Aluminum |
| Fork | Icon Air Rail |
| Fork Material | Carbon fiber composite, aero crown |
| Rear Shock | N/A |
Drivetrain
| Component Group | Shimano Ultegra Triple |
|---|---|
| Shifters | Shimano Ultegra STI Dual Control |
| Front Derailleur | Shimano Ultegra Triple |
| Rear Derailleur | Shimano Ultegra GS |
| Crankset | Shimano Ultegra Triple, 30/42/52 teeth |
| Bottom Bracket | Shimano BB-6500, 118.5mm spindle |
| BB Shell Width | 68mm English |
| Rear Cogs | 9-speed, 12 - 25 teeth |
| Chain | Shimano CN-HG92, 1/2 x 3/32" |
| Pedals | Not included |
Brakes
| Brakes | Shimano Ultegra Dual Pivot brakes, Shimano Ultegra STI Dual Control levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" threadless Cane Creek C1 |
|---|---|
| Handlebar | 3T T.H.E. |
| Handlebar Extensions | Not included |
| Stem | 3T T.H.E. |
| Saddle | Selle San Marco Era |
| Seatpost | Bontrager Select |
Wheels & Tires
| Hubs | Bontrager Race Lite |
|---|---|
| Rims | Bontrager Race Lite, 20-hole/24-hole |
| Spokes | Stainless steel, double-butted |
| Spoke Nipples | Aluminum nipples |
| Front Tire | 700 x 23c Bontrager Race Lite |
| Wheel Size | 700c wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
