Velopedia Bicycle Archive

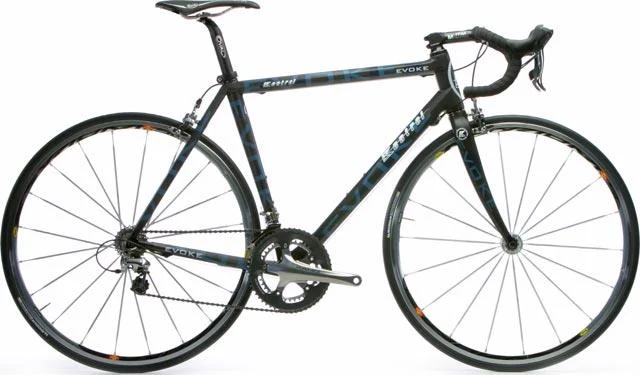

2004 Kestrel Evoke Deluxe Ultegra

Road race & triathlon bicycle from the Velopedia specification archive.

Original MSRP
$3,499.00
Sizes
47cm, 50cm, 52cm, 54cm, 56cm, 59cm, 62cm
Colors
Red/Yellow/Silver, Satin Weave
Archive ID
31465

Current market

Checking current listings…

Frameset

Frame ConstructionMonocoque
Frame MaterialCarbon fiber composite
ForkKestrel Evoke
Fork MaterialCarbon fiber composite, aero crown
Rear ShockN/A

Drivetrain

Component GroupShimano Ultegra
ShiftersShimano Ultegra STI Dual Control
Front DerailleurShimano Ultegra Triple, braze-on
Rear DerailleurShimano Ultegra
CranksetShimano Ultegra, 39/53 teeth
Bottom BracketShimano BB-6500, 109.5mm spindle
BB Shell Width68mm English
Rear Cogs9-speed
ChainShimano Ultegra, 1/2 x 3/32"
PedalsN/A

Brakes

BrakesShimano Ultegra Dual Pivot brakes, Shimano Ultegra STI Dual Control levers

Cockpit & Contact Points

Headset1 1/8" integrated
HandlebarKestrel EMS Pro carbon
Handlebar ExtensionsN/A
Seatpost32.4mm diameter

Wheels & Tires

HubsVelomax
RimsVelomax Circuit II, 24-hole/28-hole
SpokesStainless steel, 14/16/14ga. (2.0/1.7/2.0mm) double-butted
Spoke NipplesBrass nipples
Front Tire700 x 23c
Wheel Size700c wheels

More 2004 Kestrel Bicycles

View all

Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
