Rear tire: 26×2.35.
Velopedia Bicycle Archive

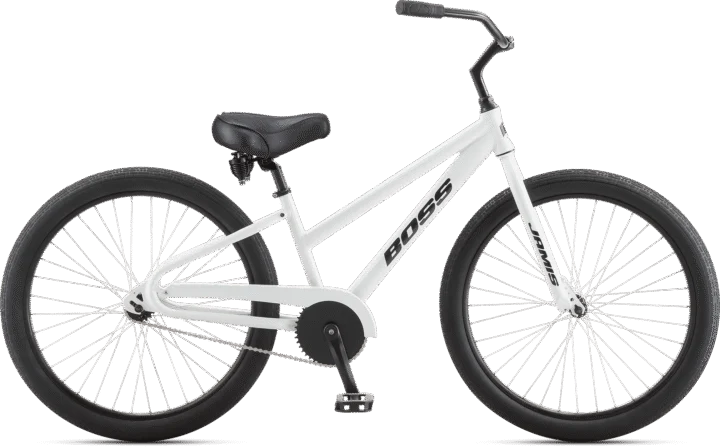

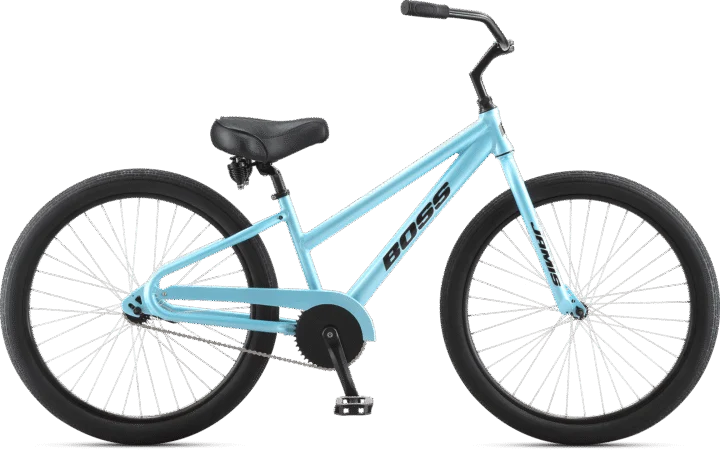

2021 Jamis Boss Cruiser Coaster
Original specifications: 26 wheels · 30.50 lbs published weight · geometry for 4 published sizes.
Planning to sell? Draft your listing
At a glance
Archive #900001714- Model year
- 2021
- Category
- Cruiser
- Original MSRP
- $549.95
- Sizes
- 17, 19, 21, 23
- Colors
- Cosmo Blue, Gloss Black, Silver Mist
- Weight
- 30.50 lbs
- Geometry
- 4 manufacturer sizes
- In this record
- 19 specifications · 3 archived images · original MSRP · geometry
Model history 5 other years
Browse other years
Compare side by side
Identification clues
2021 archived details
- Published colors
- Cosmo Blue, Gloss Black, Silver Mist
- Frame
- Steel
Clues, not proof of model year. Colors vary and components may have been replaced.
Original buildSteel · 26
Frameset
| Frame Construction | Diamond frame design with 6061 aluminum oversized tubing, sloping top tube design, water bottle bosses, alloy kickstand, and painted steel chainguard |
|---|---|
| Frame Material | Steel |
| Fork | Oversized hi-tensile steel tubular unicrown with leading dropout and fender boss |
| Fork Material | Steel |
Drivetrain
| Crankset | Forged alloy crank, 170mm alloy, with 44T compact disc chainring |
|---|---|
| Bottom Bracket | Sealed cartridge, 68 x 122.5mm |
| Cassette | 18T |
| Chain | KMC Z410NP, silver |
| Pedals | Cruiser platform with grip tape |
Brakes
| Brakes | Hi-Stop coaster brake |
|---|
Cockpit & Contact Points
| Headset | Internal cup, threaded, 1 1/8” |
|---|---|
| Handlebar | Jamis Cruise-control comfort bar |
| Stem | Alloy hi-rise, 180mm quill, 100mm extension, with removeable 2-bolt cap |
| Saddle | Boss Cruiser design with extra padding and heavy-duty, double-loop springs |
| Seatpost | Alloy micro-adjust, 27.2 x 300mm, with 31.8mm alloy clamp and cromo seatpin |
Wheels & Tires
| Wheels | Alex Zuma 36H black anodized alloy rims with alloy nutted front hub and Hi-Stop CB rear, 14 gauge stainless steel spokes |
|---|---|
| Front Tire | CST Metropolitan Palm Bay, 26” x 2.35 |
| Rear Tire | CST Metropolitan Palm Bay, 26” x 2.35 |
| Wheel Size | 26 |
No specifications match. Try a component name or clear your search.
Geometry
Frame measurements by size.
Reference drawing
Select an available measurement to locate it on the frame.
All geometry measurements4 sizes · 9 measurements
| Measurement | 17 | 19 | 21 | 23 |
|---|---|---|---|---|
| Effective top tube | 586 mm | 595 mm | 614 mm | 624 mm |
| Head tube | 110 mm | 125 mm | 150 mm | 200 mm |
| Head-tube angle | 69° | 70° | 70° | 70° |
| Seat-tube angle | 70° | 70° | 70° | 70° |
| Chainstay / rear center | 487 mm | 487 mm | 487 mm | 487 mm |
| Wheelbase | 1091 mm | 1090 mm | 1109 mm | 1119 mm |
| Bottom-bracket height | 277 mm | 277 mm | 277 mm | 277 mm |
| Standover height | 736 mm | 755 mm | 799 mm | 850 mm |
| Fork offset / rake | 35 mm | 35 mm | 35 mm | 35 mm |
Dimensions as recorded.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM = pedal turns per minute.
How it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
27.2 x 300mm, with 31.8mm alloy clamp and cromo seatpin

Race Face Ride XC Seatpost Black, 27.2x375mm
Replacement option
26” x 2.35
14 gauge stainless steel spokes
Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.
Parts and service referenceQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- CST Metropolitan Palm Bay, 26” x 2.35
- Rear tire
- CST Metropolitan Palm Bay, 26” x 2.35
- Seatpost diameter
- 27.2 mm
- Bottom bracket / shell
- Sealed cartridge, 68 x 122.5mm
Equipment inspection checks 10 checks based on 5 archived component groups Open equipment checksClose equipment checks
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Frame and fork
Inspect the frame and fork →Archived: Frame: Diamond frame design with 6061 aluminum oversized tubing, sloping top tube design, water bottle bosses, alloy kickstand, and painted steel chainguard · Fork: Oversized hi-tensile steel tubular unicrown with leading dropout and fender boss · Steel
Drivetrain
Check drivetrain wear →Archived: Crankset: Forged alloy crank, 170mm alloy, with 44T compact disc chainring · Bottom bracket: Sealed cartridge, 68 x 122.5mm · Cassette: 18T · Chain: KMC Z410NP, silver
Brakes
Inspect the brakes →Archived: Brakes: Hi-Stop coaster brake
Wheels and tires
Check wheels and tires →Archived: Wheel size: 26 · Wheels: Alex Zuma 36H black anodized alloy rims with alloy nutted front hub and Hi-Stop CB rear, 14 gauge stainless steel spokes · Front tire: CST Metropolitan Palm Bay, 26” x 2.35 · Rear tire: CST Metropolitan Palm Bay, 26” x 2.35
Controls and contact points
Archived: Headset: Internal cup, threaded, 1 1/8” · Handlebar: Jamis Cruise-control comfort bar · Stem: Alloy hi-rise, 180mm quill, 100mm extension, with removeable 2-bolt cap · Seatpost: Alloy micro-adjust, 27.2 x 300mm, with 31.8mm alloy clamp and cromo seatpin · Saddle: Boss Cruiser design with extra padding and heavy-duty, double-loop springs · Pedals: Cruiser platform with grip tape
