Velopedia Bicycle Archive

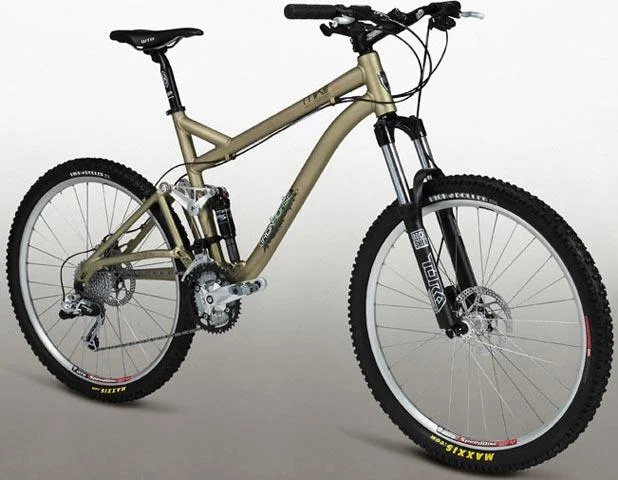

2008 Iron Horse MKIII Trail
Mountain bike, front & rear suspension bicycle from the Velopedia specification archive.
- Original MSRP
- $1,999.99
- Sizes
- 15", 17", 19", 21"
- Colors
- Khaki Satin
- Archive ID
- 13305
Current market
Checking current listings…Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | 6069 aluminum |
| Fork | RockShox Tora 289 U-Turn, 130mm travel |
| Fork Material | Single |
| Rear Shock | Manitou Radium R, 5" travel |
Drivetrain
| Component Group | Mountain Mix |
|---|---|
| Shifters | SRAM X.5 Trigger |
| Front Derailleur | Shimano Alivio |
| Rear Derailleur | SRAM X.5 |
| Crankset | FSA Alpha Drive, 22/32/42 teeth |
| Bottom Bracket | FSA Powerdrive, 113mm spindle |
| BB Shell Width | 73mm |
| Cassette | SRAM PG-850 |
| Rear Cogs | 9-speed, 11 - 34 teeth |
| Chain | KMC Z72 |
| Pedals | Crank Brothers Smarty |
Brakes
| Brakes | Shimano M485 w/180mm Rotor front/Shimano M485 w/160mm Rotor rear brakes, Shimano M485 levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" FSA Orbit Z |
|---|---|
| Handlebar | Easton EA30 low rise |
| Handlebar Extensions | Not included |
| Stem | Easton EA30 OS |
| Saddle | WTB Silverado Comp |
| Seatpost | Easton EA30, 30.0mm diameter |
Wheels & Tires
| Hubs | Shimano M495 Centerlock Disc |
|---|---|
| Rims | Alex TD-24, 32-hole |
| Spokes | DT Champion stainless steel, 14ga. (2.0mm) |
| Front Tire | Front: 26 x 2.35" Maxxis High Roller, Rear: 26 x 2.10" Maxxis High Roller |
| Wheel Size | 26" wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
