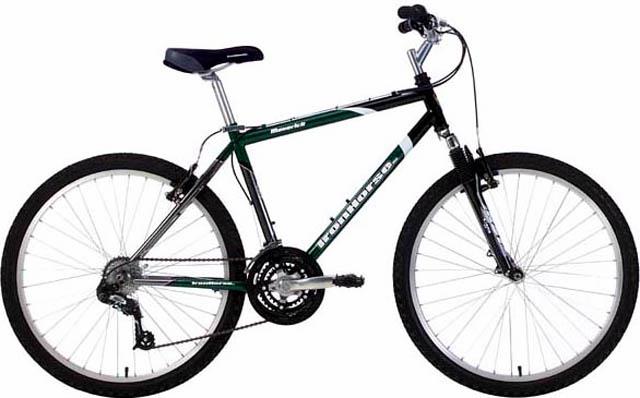

2002 Iron Horse Maverick
Mountain bike, front suspension bicycle from the Velopedia specification archive.
- Original MSRP
- $230.00
- Sizes
- 14", 16", 18", 20", 22", womens 16", womens 18"
- Colors
- Green/Black, Grey/Black, Silver/Black (ladies), Silver/Blue
- Weight
- 32
- Archive ID
- 91353
Current market
Checking current listings…Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | Chromoly seat tube/hi-tensile steel |
| Fork | RST Capa-CL, 2.5" travel |
| Fork Material | Aluminum, single triple-clamp crown |
| Rear Shock | N/A |
Drivetrain
| Component Group | Hybrid Mix |
|---|---|
| Shifters | SRAM MRX Half Pipe |
| Front Derailleur | Shimano C102, top-pull/clamp-on 31.8mm |
| Rear Derailleur | Shimano Altus |
| Crankset | Cyclone aluminum, 28/38/48 teeth |
| Bottom Bracket | Cartridge, 122.5mm spindle |
| BB Shell Width | 68mm English |
| Rear Cogs | 7-speed freewheel, 13 - 28 teeth |
| Chain | KMC Z-51, 1/2 x 3/32" |
| Pedals | Resin MTB |
Brakes
| Brakes | Aluminum linear-pull brakes, aluminum linear-pull levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" steel w/water seal |
|---|---|
| Handlebar | Steel, rise |
| Handlebar Extensions | Not included |
| Stem | Steel |
| Saddle | Iron Horse Soft Sport |
| Seatpost | Aluminum micro-adjust, 29.2mm diameter |
Wheels & Tires
| Hubs | Aluminum, Q/R |
|---|---|
| Rims | Aluminum, 36-hole |
| Spokes | UCP, 14ga. (2.0mm) straight gauge |
| Spoke Nipples | Brass nipples |
| Front Tire | 26 x 1.95" all terrain |
| Wheel Size | 26" wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
