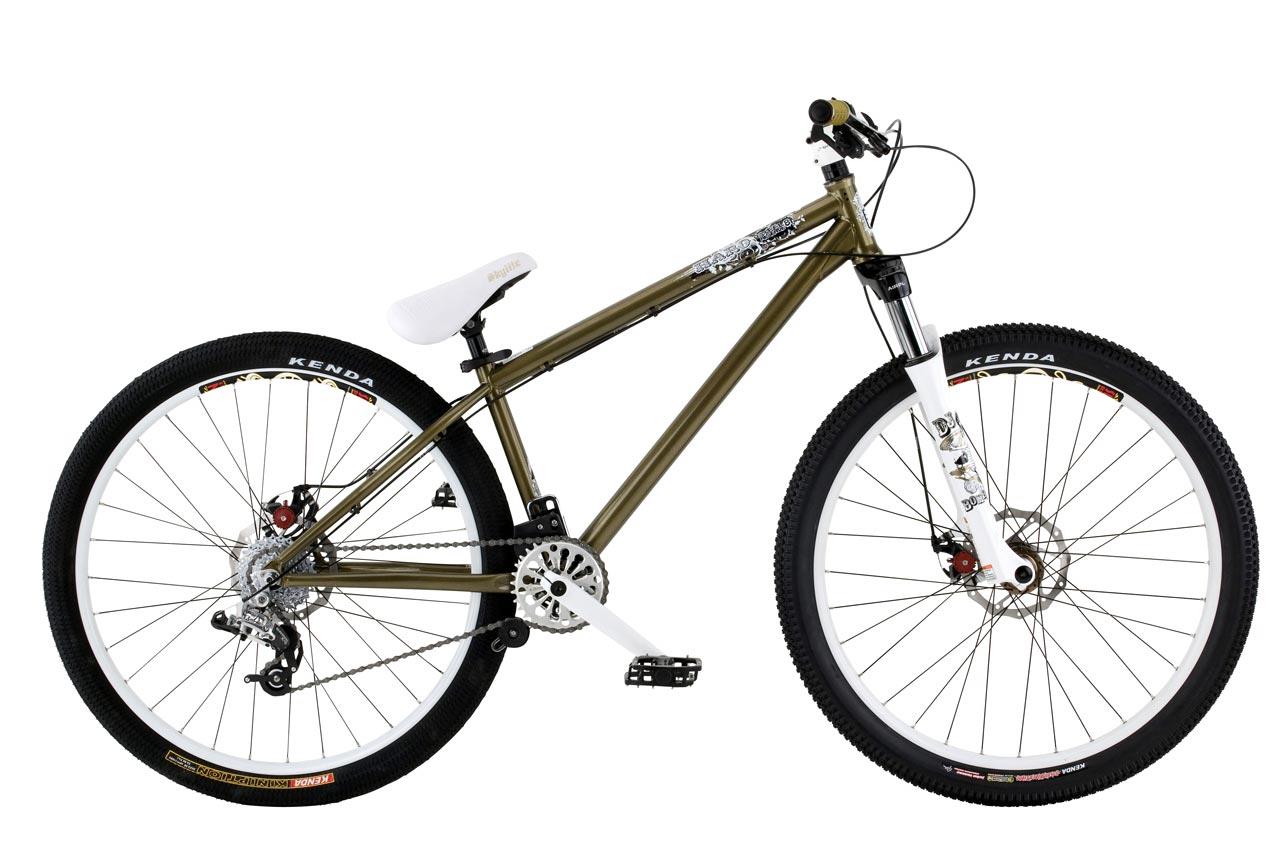

2009 Haro Steel Reserve Eight
Mountain bike, front suspension bicycle from the Velopedia specification archive.
- Original MSRP
- $1,470.00
- Sizes
- 13" short, 13" long
- Colors
- Pea Soup
- Archive ID
- 18128
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | 4130 butted chromoly |
| Fork | Marzocchi Dirt Jumper 2 w/QR20, 80mm travel |
| Fork Material | Single |
| Rear Shock | N/A |
Drivetrain
| Component Group | SRAM Mix |
|---|---|
| Shifters | SRAM X.5 Trigger |
| Front Derailleur | Syncros, chain retention device |
| Rear Derailleur | SRAM X.9 Short Cage |
| Crankset | Tubular Chromoly, e.Thirteen 32 teeth |
| Bottom Bracket | Euro |
| Cassette | SRAM PG-850 |
| Rear Cogs | 8-speed, 11 - 28 teeth |
| Chain | Shimano HG40 |
| Pedals | Pivit Platform w/Replaceable Pins |
Brakes
| Brakes | Avid BB5 w/160mm rotor brakes, Avid FR-5 levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" Ritchey internal |
|---|---|
| Handlebar | Syncros FR Bulk Riser |
| Handlebar Extensions | Not included |
| Stem | Syncros FR |
| Saddle | SDG Sky Light I-Beam |
| Seatpost | SDG I-Beam |
Wheels & Tires
| Hubs | Front: Pivit Disc 20mm sealed, Rear: Pivit sealed disc alloy |
|---|---|
| Rims | Sun SOS, 32-hole |
| Spokes | Stainless, 14ga. (2.0mm) |
| Front Tire | Front: 26 x 2.35" Kenda Straight Block 8, Rear: 26 x 2.30" Kenda Kiniption |
| Wheel Size | 26" wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
