Velopedia Bicycle Archive

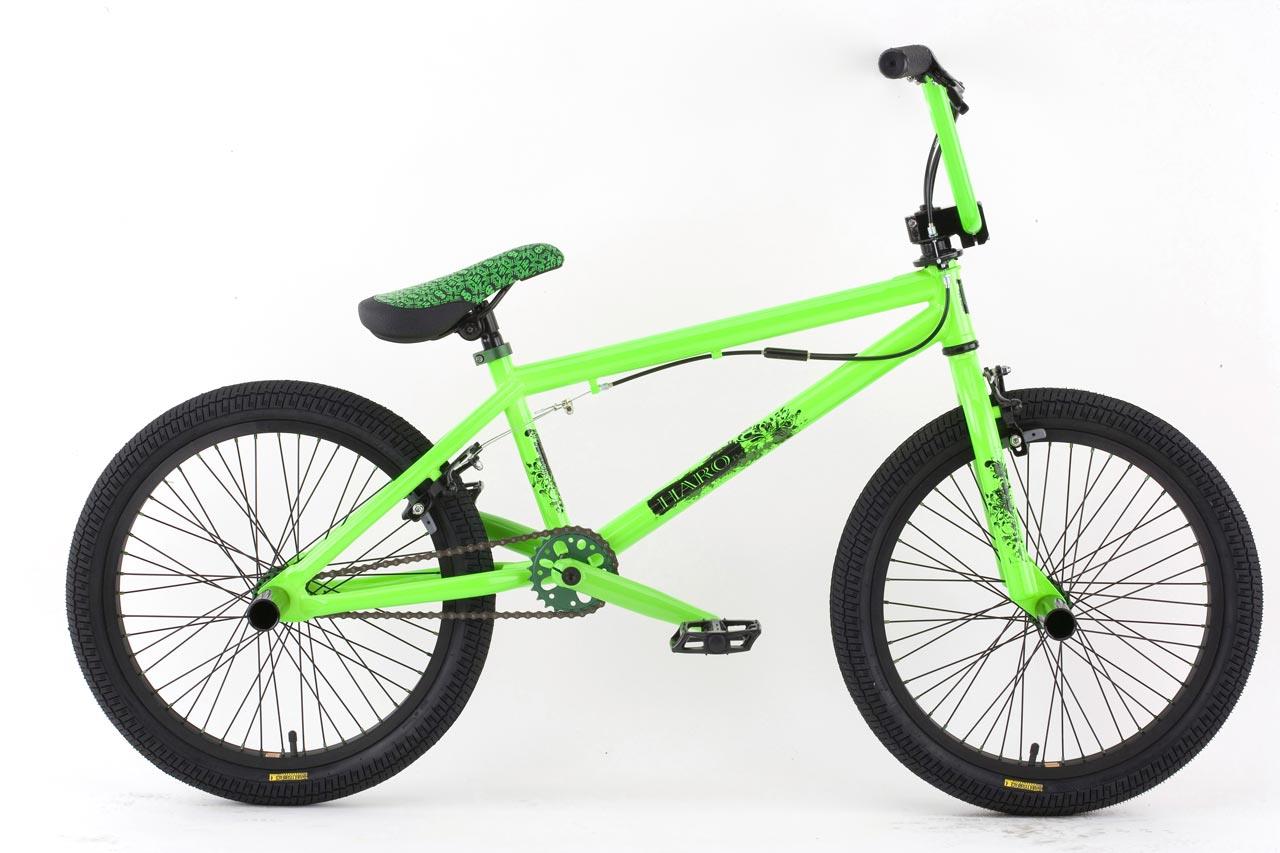

2009 Haro F5
BMX bicycle from the Velopedia historical specification archive.
- Original MSRP
- $500.00
- Sizes
- 20.75" TT
- Colors
- Acid Green, Gloss Black
- Archive ID
- 18332
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | Chromoly |
| Fork Material | Chromoly, unicrown crown |
| Rear Shock | N/A |
Drivetrain
| Component Group | BMX Mix |
|---|---|
| Shifters | N/A |
| Front Derailleur | N/A |
| Rear Derailleur | N/A |
| Crankset | Haro 3-pc 8-spline CrMO, 25 teeth |
| Bottom Bracket | Mid sealed BB |
| Cassette | Cassette driver |
| Rear Cogs | 1-speed, 9 teeth |
| Pedals | Haro DX Alloy |
Brakes
| Brakes | U-Brake rear brakes, Unspecified rear levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" Threadless |
|---|---|
| Handlebar | CroMo 8" rise |
| Handlebar Extensions | Not included |
| Saddle | Haro Slim |
| Seatpost | Steel |
Wheels & Tires
| Hubs | Alloy Sealed 14mm axle |
|---|---|
| Rims | Alienation Black Sheep, 48-hole |
| Front Tire | 20 x 2.10" Haro MS4 |
| Wheel Size | 20" wheels |
Historical specifications are presented as an archival reference. Component specifications may have varied by market, size, or production run.
