Velopedia Bicycle Archive

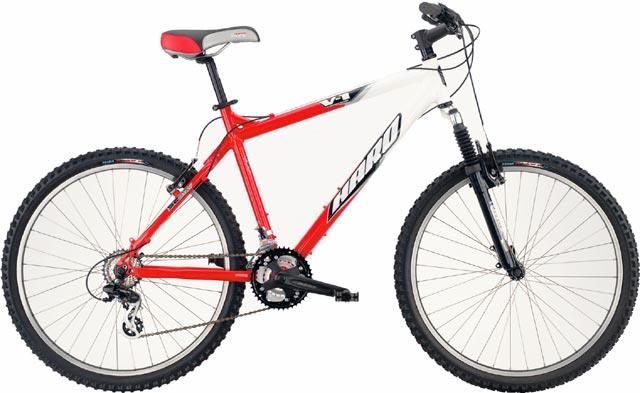

2004 Haro V1
Mountain bike, front suspension bicycle from the Velopedia specification archive.
- Original MSRP
- $260.00
- Sizes
- Xsmall, small, medium, large, xlarge
- Colors
- Black, White/Red, Silver/Candy Blue
- Weight
- 31.1
- Archive ID
- 89906
Current market
Checking current listings…Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | 6061 T6 aluminum |
| Fork | Mozo M-30, 63mm travel |
| Fork Material | Aluminum, single crown |
| Rear Shock | N/A |
Drivetrain
| Component Group | Mountain Mix |
|---|---|
| Shifters | Shimano EF-28 |
| Front Derailleur | Shimano FD-TY10 |
| Rear Derailleur | Shimano Acera |
| Crankset | Suntour XCC-150, 24/34/42 teeth |
| Bottom Bracket | Tien Hsin cartridge |
| Rear Cogs | 7-speed, 14 - 28 teeth |
| Chain | Shimano CN-HG50, 1/2 x 3/32" |
| Pedals | Aluminum cage |
Brakes
| Brakes | ProMax linear-pull brakes, Shimano EF-28 levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" threadless Aheadset |
|---|---|
| Handlebar | Aluminum |
| Handlebar Extensions | Aluminum |
| Stem | Aluminum threadless |
| Saddle | Haro Selle Sport Dual Density |
| Seatpost | Aluminum micro-adjust, 27.2mm diameter |
Wheels & Tires
| Hubs | Formula aluminum, Q/R |
|---|---|
| Rims | Aluminum, 36-hole |
| Spokes | Stainless steel, 14ga. (2.0mm) straight gauge |
| Spoke Nipples | Brass nipples |
| Front Tire | 26 x 2.10" Kenda Koyote |
| Wheel Size | 26" wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
