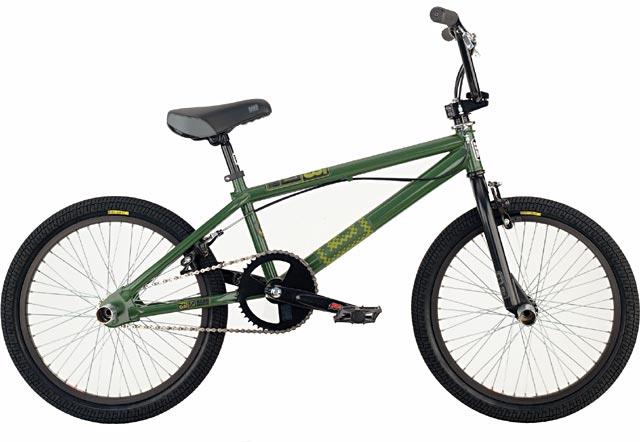

2004 Haro F3
Freestyle/jumping bicycle from the Velopedia specification archive.
- Original MSRP
- $220.00
- Sizes
- Pro
- Colors
- Chrome, Green, SG Army, SG Blood Red
- Archive ID
- 30802
Current market
Checking current listings…Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | Chromoly seat tube/hi-tensile steel |
| Fork | Haro Straight Shooter |
| Fork Material | Chromoly, unicrown crown |
| Rear Shock | N/A |
Drivetrain
| Component Group | N/A |
|---|---|
| Shifters | N/A |
| Front Derailleur | N/A |
| Rear Derailleur | N/A |
| Crankset | HFC Forged chromoly 3-piece, 44 teeth |
| Bottom Bracket | Sealed |
| BB Shell Width | American |
| Rear Cogs | 1-speed, 16 teeth |
| Chain | KMC Z410 |
| Pedals | Fusion DX style platform, aluminum |
Brakes
| Brakes | Tektro U-brake brakes, Tektro aluminum levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" threadless Tien Hsin Power Pro |
|---|---|
| Handlebar | Haro Slim Bar 2.3 |
| Handlebar Extensions | N/A |
| Stem | Fusion |
| Saddle | Haro Landing Strip |
| Seatpost | Steel, 25.4mm diameter |
Wheels & Tires
| Hubs | Aluminum, 14mm axle |
|---|---|
| Rims | Alex ALX 303, 48-hole |
| Spokes | Stainless steel, 14ga. (2.0mm) straight gauge |
| Spoke Nipples | Brass nipples |
| Front Tire | 20 x 2.00" Haro MS 4 |
| Wheel Size | 20" wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
