Velopedia Bicycle Archive

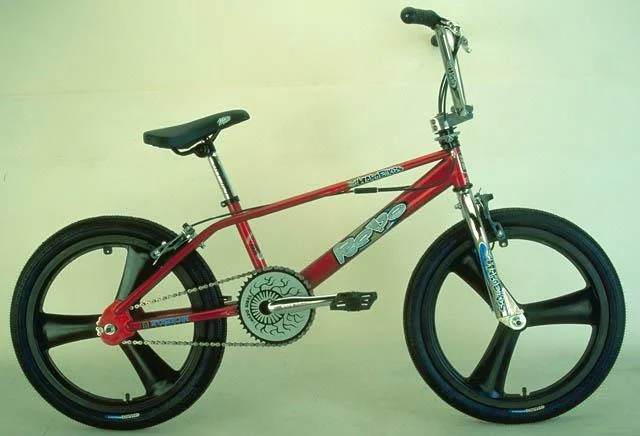

1999 Haro Revo Mag
Freestyle/jumping bicycle from the Velopedia specification archive.
- Original MSRP
- $240.00
- Sizes
- Pro
- Colors
- Deep Red
- Weight
- 32.700000000000003
- Archive ID
- 85380
Current market
Checking current listings…Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | 4130 chromoly main triangle/hi-tensile steel rear stays |
| Fork | Haro Straight Shooter |
| Fork Material | Hi-tensile steel, unicrown crown |
| Rear Shock | N/A |
Drivetrain
| Component Group | N/A |
|---|---|
| Shifters | N/A |
| Front Derailleur | N/A |
| Rear Derailleur | N/A |
| Crankset | Haro Megacrank, 44 teeth |
| Bottom Bracket | Fusion sealed |
| BB Shell Width | American |
| Rear Cogs | 1-speed, 16 teeth |
| Chain | KMC 410, 1/2 x 1/8" |
| Pedals | Fusion DX style platform, resin |
Brakes
| Brakes | Tektro 984A brakes, Chang Star 257A levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" threadless Aheadset SB-1 w/SST Oryg detangler |
|---|---|
| Handlebar | Haro Sledgehammer |
| Handlebar Extensions | N/A |
| Stem | Fusion |
| Saddle | Haro padded |
| Seatpost | Fusion, 25.4mm diameter |
Wheels & Tires
| Hubs | Suzue/OGK |
|---|---|
| Rims | OGK Mag |
| Spokes | Reinforced nylon, molded |
| Spoke Nipples | N/A |
| Front Tire | 20 x 2.25" Haro Multisurface II |
| Wheel Size | 20" wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
