Velopedia Bicycle Archive

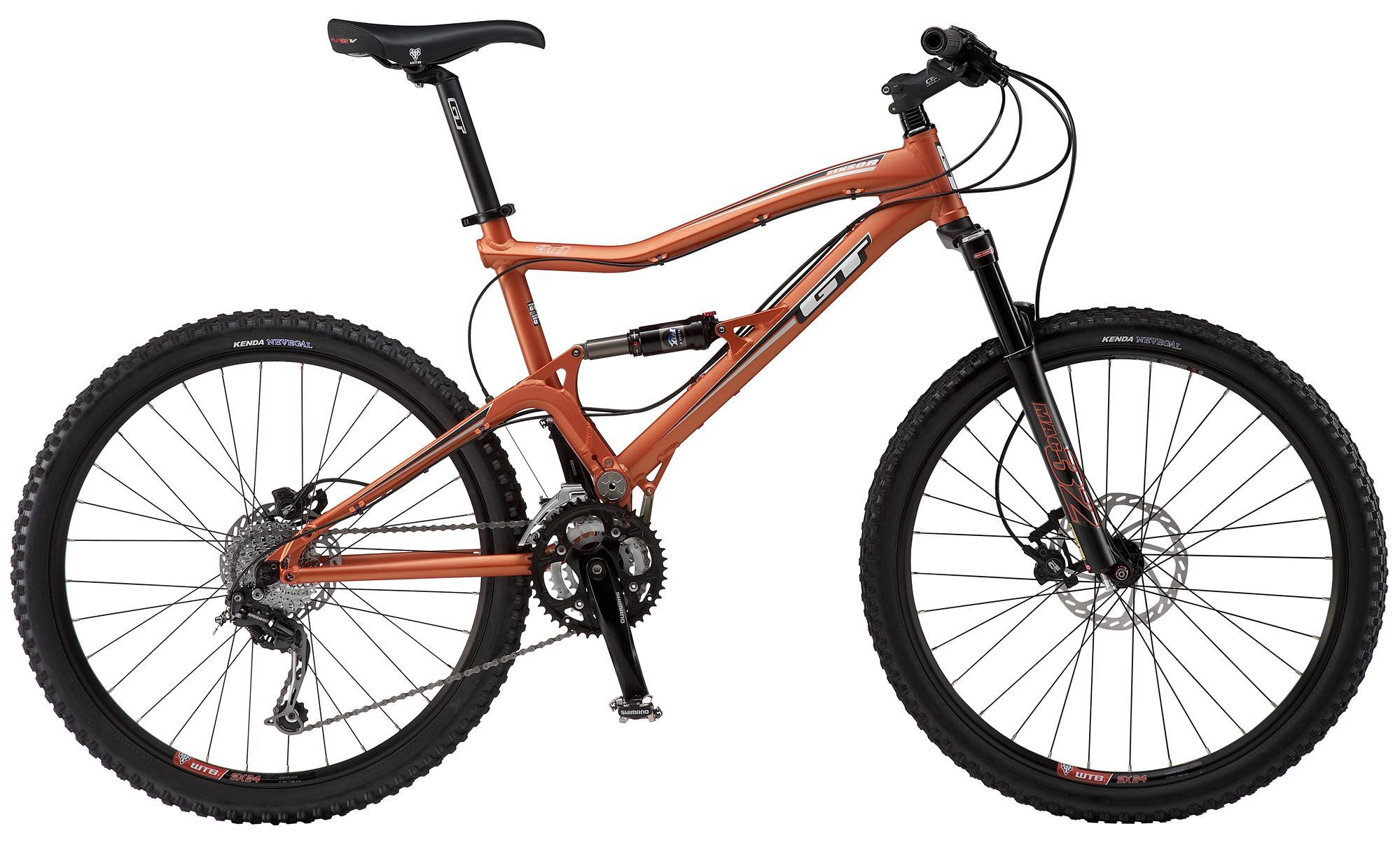

2010 GT Sensor 3.0
Mountain bike, front & rear suspension bicycle from the Velopedia specification archive.
- Original MSRP
- $1,699.99
- Sizes
- XS, S, M, L, XL
- Colors
- Matte Orange, Silver
- Archive ID
- 20906
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | 6061 Hydroformed Aluminum |
| Fork | SR MAG 32 with 15 mm QR, 120mm travel |
| Fork Material | Single |
| Rear Shock | Fox Float R, 120mm travel |
Drivetrain
| Component Group | Shimano Deore Mix |
|---|---|
| Shifters | Shimano Deore |
| Front Derailleur | Shimano Deore |
| Rear Derailleur | Shimano Deore Shadow |
| Crankset | Shimano FC-M542, 22/32/44 teeth |
| Bottom Bracket | Shimano External |
| Cassette | SRAM PG-950 |
| Rear Cogs | 9-speed, 11 - 32 teeth |
| Chain | Shimano 9 speed |
| Pedals | N/A |
Brakes
| Brakes | Tektro Auriga Pro w/180mm rotor front/Tektro Auriga Pro w/160mm rotor rear brakes, Tektro Auriga Pro hydraulic levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" threadless FSA Orbit X |
|---|---|
| Handlebar | GT Riser |
| Handlebar Extensions | Not included |
| Stem | GT OS 4-bolt |
| Saddle | WTB Pure V |
| Seatpost | GT alloy butted 2014, 31.6mm diameter |
Wheels & Tires
| Hubs | Front: GT 15 mm through axle with 4 japanese sealed bearing, Rear: Shimano Deore disc |
|---|---|
| Rims | WTB SX-24, 32-hole |
| Spokes | Stainless, 14ga. (2.0mm) straight gauge |
| Spoke Nipples | Brass |
| Front Tire | 26 x 2.10" Kenda Nevegal |
| Wheel Size | 26" wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
