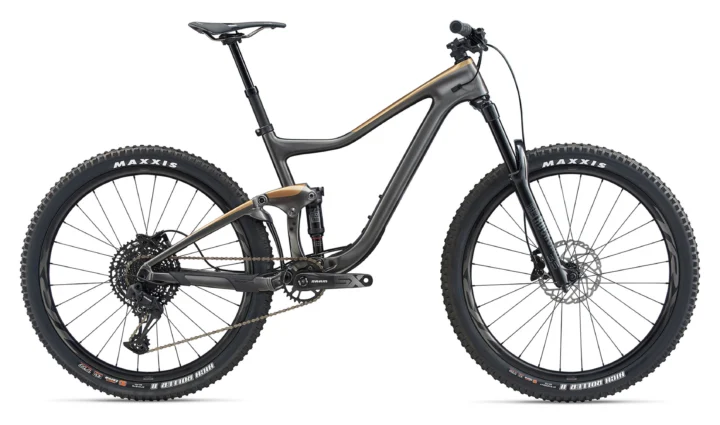

2020 Giant Trance Advanced 2
Original manufacturer specifications including geometry for 4 published sizes.
Selling this bike? Create a shareable bike record
What Velopedia knows
- Model year
- 2020
- Category
- Mountain
- Original MSRP
- $3,150.00
- Sizes
- S, M, L, XL
- Colors
- Charcoal / Gold
- Geometry
- 4 manufacturer sizes · Geometry context
- Record coverage
- 22 preserved details · archived image · original MSRP · preserved geometry
- Archive ID
- 900002220
Model history 1 other year
Frameset
| Frame Construction | Advanced-Grade Composite, 140mm |
|---|---|
| Frame Material | Carbon Fiber |
| Fork | RockShox 35 Gold RL, 150mm, DebonAir, Motion Control Damping, Boost 15x110 Maxle Ultimate, tapered |
| Rear Shock | RockShox Deluxe Select |
Drivetrain
| Shifters | SRAM SX Eagle |
|---|---|
| Front Derailleur | N/A |
| Rear Derailleur | SRAM SX Eagle |
| Crankset | SRAM SX Eagle DUB, 30t |
| Bottom Bracket | SRAM DUB, press fit |
| Cassette | SRAM SX Eagle, 11x50 |
| Chain | SRAM SX Eagle |
| Pedals | N/A |
Brakes
| Brakes | Shimano MT420 |
|---|
Cockpit & Contact Points
| Handlebar | Giant Contact TR35, 780x35mm, 20mm rise |
|---|---|
| Stem | Giant Contact SL 35 |
| Saddle | Giant Contact SL (neutral) |
| Seatpost | Giant Contact Switch dropper post with remote, 30.9 |
Wheels & Tires
| Hubs | Giant TRX-1 27.5 WheelSystem |
|---|---|
| Rims | Giant TRX-1 27.5 Composite WheelSystem |
| Spokes | Giant TRX-1 27.5 WheelSystem |
| Front Tire | [F] Maxxis High Roller II 27.5x2.5 WT, 3C, EXO, TR [R] Maxxis High Roller II 27.5x2.4, 3C, EXO, TR, tubeless |
| Rear Tire | [F] Maxxis High Roller II 27.5x2.5 WT, 3C, EXO, TR [R] Maxxis High Roller II 27.5x2.4, 3C, EXO, TR, tubeless |
Size-specific frame data
Geometry
Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.
| Measurement | S | M | L | XL |
|---|---|---|---|---|
| Seat tube | 380 mm | 431 mm | 482 mm | 507 mm |
| Top tube | 580 mm | 610 mm | 630 mm | 655 mm |
| Head tube | 100 mm | 105 mm | 130 mm | 145 mm |
| Head-tube angle | 67° | 67° | 67° | 67° |
| Seat-tube angle | 73.5° | 73.5° | 73.5° | 73.5° |
| Chainstay / rear center | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1129 mm | 1160 mm | 1183 mm | 1209 mm |
| Bottom-bracket drop | 15 mm | 15 mm | 15 mm | 15 mm |
| Reach | 406 mm | 435 mm | 448 mm | 469 mm |
| Stack | 587 mm | 591 mm | 614 mm | 628 mm |
| Standover height | 701 mm | 723 mm | 768 mm | 788 mm |
| Fork offset / rake | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 104.2 mm | 104.2 mm | 104.2 mm | 104.2 mm |
| Crank length | 170 mm | 175 mm | 175 mm | 175 mm |
| Stem length | 50 mm | 50 mm | 50 mm | 60 mm |
| Handlebar width | 780 mm | 780 mm | 780 mm | 780 mm |
| Wheel size | 27.5" | 27.5" | 27.5" | 27.5" |
Geometry source: Giant first-party size geometry table ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
Geometry tools
Analyze a published size
S geometry
Archive context: Its bottom-bracket drop of 15 mm sits toward the shallower-drop end. Its stack of 587 mm sits toward the lower end. The seat angle of 73.5° sits somewhat more relaxed than typical.
Compared with 87 distinct mountain geometries in the Small-equivalent size cohort from model years 2018–2022 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze S geometry M geometry
Archive context: Its stack of 591 mm sits toward the lower end. Its bottom-bracket drop of 15 mm sits toward the shallower-drop end. The seat angle of 73.5° sits toward the more relaxed end.
Compared with 91 distinct mountain geometries in the Medium-equivalent size cohort from model years 2018–2022 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze M geometry L geometry
Archive context: Its bottom-bracket drop of 15 mm sits toward the shallower-drop end. The seat angle of 73.5° sits toward the more relaxed end. Its reach of 448 mm sits somewhat shorter than typical.
Compared with 86 distinct mountain geometries in the Large-equivalent size cohort from model years 2018–2022 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze L geometry XL geometry
Archive context: Its bottom-bracket drop of 15 mm sits toward the shallower-drop end. The seat angle of 73.5° sits toward the more relaxed end. Its reach of 469 mm sits toward the shorter end.
Compared with 77 distinct mountain geometries in the XL-equivalent size cohort from model years 2018–2022 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze XL geometry Parts & serviceability
Find replacement parts
SRAM DUB, press fit
Named archived component — verify dimensions
SRAM SX Eagle DUB, 30t
Component family — verify exact version
Searches use the archived manufacturer specification, not the components currently installed on a particular bicycle. Confirm the exact model, size and fit before ordering. As an Amazon Associate I earn from qualifying purchases. Velopedia may also earn from qualifying eBay purchases. Commercial relationships do not influence Archive specifications or analysis.
Used-bike inspection
If you’re buying this bike used
Before any test ride: both brakes should stop the bike firmly and release cleanly; both wheels should run true and be securely attached; tires should have no casing damage; and the headset, handlebar, stem, cranks and pedals should have no looseness or play.
Follow the full used-bike inspection order →- FrameInspect the frame in bright light, especially around the head tube, bottom bracket, chainstays and clamped areas. Look for cracks, ripples, crushed sections or signs of a previous impact.Inspect the frame and fork →
- BrakesTest each brake separately and confirm it stops firmly and releases cleanly. Inspect the pads and braking surfaces for wear or contamination, and check the cables or hoses for damage.Inspect the brakes →
- SuspensionAsk when the fork and shock were last serviced. Check the stanchions for damage, look for oil at the seals, cycle both units through their travel and test the suspension pivots for play.Evaluate the suspension →
- DrivetrainShift through the full range under light load, measure chain wear and inspect the cassette or freewheel teeth. Skipping or hesitation can indicate wear, poor adjustment or mismatched parts.Check drivetrain wear →
- Wheels & tiresSpin both wheels and watch the rims for side-to-side or vertical movement. Check for dents, cracks, loose or uneven spokes and hub play, then inspect both tire casings for cuts, cracking or exposed threads. If it is set up tubeless, confirm both tires hold pressure and ask when the sealant was last refreshed.Check wheels and tires →
Bike-specific inspection checklist 23 checks based on 6 archived component groups Open checklistClose checklist
This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.
Identity and fit
Follow the full used-bike inspection order →Archived: 2020 Giant Trance Advanced 2 · Mountain · Published sizes: S, M, L, XL
Frame and fork
Inspect the frame and fork →Archived: Frame: Advanced-Grade Composite, 140mm · Fork: RockShox 35 Gold RL, 150mm, DebonAir, Motion Control Damping, Boost 15x110 Maxle Ultimate, tapered
Suspension
Evaluate the suspension →Archived: Fork: RockShox 35 Gold RL, 150mm, DebonAir, Motion Control Damping, Boost 15x110 Maxle Ultimate, tapered · Rear shock: RockShox Deluxe Select
Drivetrain
Check drivetrain wear →Archived: Shifters: SRAM SX Eagle · Rear derailleur: SRAM SX Eagle · Crankset: SRAM SX Eagle DUB, 30t · Bottom bracket: SRAM DUB, press fit · Cassette: SRAM SX Eagle, 11x50 · Chain: SRAM SX Eagle
Brakes
Inspect the brakes →Archived: Brakes: Shimano MT420
Wheels and tires
Check wheels and tires →Archived: Rims: Giant TRX-1 27.5 Composite WheelSystem · Hubs: Giant TRX-1 27.5 WheelSystem · Front tire: [F] Maxxis High Roller II 27.5x2.5 WT, 3C, EXO, TR [R] Maxxis High Roller II 27.5x2.4, 3C, EXO, TR, tubeless · Rear tire: [F] Maxxis High Roller II 27.5x2.5 WT, 3C, EXO, TR [R] Maxxis High Roller II 27.5x2.4, 3C, EXO, TR, tubeless
Controls and contact points
Archived: Handlebar: Giant Contact TR35, 780x35mm, 20mm rise · Stem: Giant Contact SL 35 · Seatpost: Giant Contact Switch dropper post with remote, 30.9 · Saddle: Giant Contact SL (neutral)
Before and during the test ride
Follow the full used-bike inspection order →Build relationships are limited to the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
