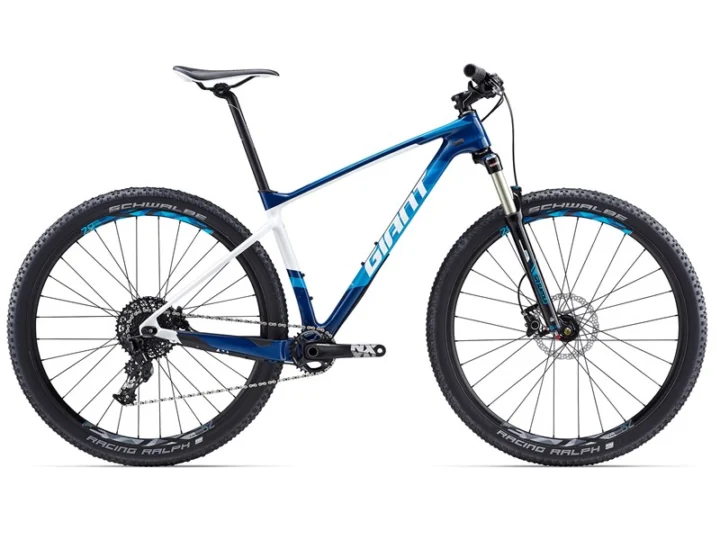

2017 Giant XTC Advanced 29 3
Original manufacturer specifications including geometry for 3 published sizes.
Selling this bike? Create a shareable bike record
What Velopedia knows
- Model year
- 2017
- Category
- Mountain
- Sizes
- S, M, L, XL
- Colors
- Deep Blue
- Geometry
- 3 manufacturer sizes · Geometry context
- Record coverage
- 22 preserved details · archived image · preserved geometry
- Archive ID
- 900002132
Model history 1 other year
Frameset
| Frame Construction | Advanced-grade composite w/ horizontal dropouts |
|---|---|
| Frame Material | Carbon Fiber |
| Fork | SR Suntour Raidon LO-R, 15mm thru-axle, OverDrive, 100mm travel (not compatible with 27.5+ size tires) |
| Rear Shock | N/A |
Drivetrain
| Shifters | SRAM NX |
|---|---|
| Front Derailleur | N/A |
| Rear Derailleur | SRAM NX |
| Crankset | SRAM NX, 30T |
| Bottom Bracket | SRAM GXP, Press fit |
| Cassette | SRAM NX 11x42, 11-speed |
| Chain | KMC X11 |
| Pedals | N/A |
Brakes
| Brakes | Shimano M365, hydraulic disc, [F] 180mm [R] 160mm |
|---|
Cockpit & Contact Points
| Handlebar | Giant Connect Trail, 31.8mm |
|---|---|
| Stem | Giant Connect |
| Saddle | Giant Contact Forward |
| Seatpost | Giant Connect, 27.2mm |
Wheels & Tires
| Hubs | Giant Sport Tracker Disc, [F] 15mm thru-axle 28h, [R] Boost 148x12mm 32h |
|---|---|
| Rims | Giant XC-3 |
| Spokes | Stainless Steel, 14g |
| Front Tire | Schwalbe Racing Ralph, 29x2.25, Performance, Folding |
| Rear Tire | Schwalbe Racing Ralph, 29x2.25, Performance, Folding |
Size-specific frame data
Geometry
Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.
| Measurement | S | M | L |
|---|---|---|---|
| Seat tube | 390 mm | 440 mm | 490 mm |
| Top tube | 585 mm | 605 mm | 625 mm |
| Head tube | 95 mm | 95 mm | 105 mm |
| Head-tube angle | 70° | 70° | 70° |
| Seat-tube angle | 73° | 72.5° | 72° |
| Chainstay / rear center | 425 mm | 425 mm | 425 mm |
| Wheelbase | 1074 mm | 1088 mm | 1102 mm |
| Bottom-bracket drop | 60 mm | 60 mm | 60 mm |
| Reach | 398 mm | 412 mm | 423 mm |
| Stack | 612 mm | 612 mm | 621 mm |
| Standover height | 739 mm | 765 mm | 797 mm |
| Fork offset / rake | 51 mm | 51 mm | 51 mm |
| Trail | 82 mm | 82 mm | 82 mm |
| Crank length | 170 mm | 175 mm | 175 mm |
| Stem length | 70 mm | 80 mm | 90 mm |
| Handlebar width | 720 mm | 720 mm | 720 mm |
| Wheel size | 29" | 29" | 29" |
Geometry source: Giant first-party size geometry table ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
Geometry tools
Analyze a published size
S geometry
Archive context: The chainstay of 425 mm sits toward the shorter rear-center end. The head angle of 70° sits toward the steeper end. Its stack of 612 mm sits somewhat taller than typical.
Compared with 16 distinct mountain geometries in the Small-equivalent size cohort from model years 2015–2019 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze S geometry M geometry
Archive context: The chainstay of 425 mm sits toward the shorter rear-center end. The head angle of 70° sits toward the steeper end. Its stack of 612 mm sits somewhat taller than typical.
Compared with 16 distinct mountain geometries in the Medium-equivalent size cohort from model years 2015–2019 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze M geometry L geometry
Archive context: The chainstay of 425 mm sits toward the shorter rear-center end. Its wheelbase of 1102 mm sits toward the shorter end. The head angle of 70° sits toward the steeper end.
Compared with 16 distinct mountain geometries in the Large-equivalent size cohort from model years 2015–2019 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze L geometry Parts & serviceability
Find replacement parts
KMC X11
Exact archived model
SRAM NX 11x42, 11-speed
Interpreted as SRAM NX · 11-speed Component family — verify exact version
Schwalbe Racing Ralph, 29x2.25, Performance, Folding
Named tire and published size
More qualified parts (5)
SRAM GXP, Press fit
Named archived component — verify dimensions
SRAM NX, 30T
Component family — verify exact version
SRAM NX
Interpreted as SRAM NX · 11-speed · mechanical Named component · published drivetrain speed — verify exact version
SRAM NX
Interpreted as SRAM NX · 11-speed · mechanical Named component · published drivetrain speed — verify exact version
27.2 mm seatpost
Published diameter — verify length and setback
Searches use the archived manufacturer specification, not the components currently installed on a particular bicycle. Confirm the exact model, size and fit before ordering. As an Amazon Associate I earn from qualifying purchases. Velopedia may also earn from qualifying eBay purchases. Velopedia may also earn from qualifying retailer purchases. Commercial relationships do not influence Archive specifications or analysis.
Used-bike inspection
If you’re buying this bike used
Before any test ride: both brakes should stop the bike firmly and release cleanly; both wheels should run true and be securely attached; tires should have no casing damage; and the headset, handlebar, stem, cranks and pedals should have no looseness or play.
Follow the full used-bike inspection order →- FrameInspect the frame in bright light, especially around the head tube, bottom bracket, chainstays and clamped areas. Look for cracks, ripples, crushed sections or signs of a previous impact.Inspect the frame and fork →
- BrakesBoth levers should feel firm and return cleanly. Check for fluid around the levers and calipers, inspect pad thickness and contamination, and look for worn or bent rotors.Inspect the brakes →
- SuspensionAsk when the fork was last serviced. Check the stanchions for damage, look for oil at the seals and make sure the fork moves smoothly without bushing play.Evaluate the suspension →
- DrivetrainShift through every gear under light load and measure chain wear. Confirm that the shifter, derailleur, chain and cassette belong to the same 11-speed system.Check drivetrain wear →
- Wheels & tiresSpin both wheels and watch the rims for side-to-side or vertical movement. Check for dents, cracks, loose or uneven spokes and hub play, then inspect both tire casings for cuts, cracking or exposed threads.Check wheels and tires →
Bike-specific inspection checklist 20 checks based on 6 archived component groups Open checklistClose checklist
This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.
Identity and fit
Follow the full used-bike inspection order →Archived: 2017 Giant XTC Advanced 29 3 · Mountain · Published sizes: S, M, L, XL
Frame and fork
Inspect the frame and fork →Archived: Frame: Advanced-grade composite w/ horizontal dropouts · Fork: SR Suntour Raidon LO-R, 15mm thru-axle, OverDrive, 100mm travel (not compatible with 27.5+ size tires)
Suspension
Evaluate the suspension →Archived: Fork: SR Suntour Raidon LO-R, 15mm thru-axle, OverDrive, 100mm travel (not compatible with 27.5+ size tires)
Drivetrain
Check drivetrain wear →Archived: Shifters: SRAM NX · Rear derailleur: SRAM NX · Crankset: SRAM NX, 30T · Bottom bracket: SRAM GXP, Press fit · Cassette: SRAM NX 11x42, 11-speed · Chain: KMC X11
Brakes
Inspect the brakes →Archived: Brakes: Shimano M365, hydraulic disc, [F] 180mm [R] 160mm
Wheels and tires
Check wheels and tires →Archived: Rims: Giant XC-3 · Hubs: Giant Sport Tracker Disc, [F] 15mm thru-axle 28h, [R] Boost 148x12mm 32h · Front tire: Schwalbe Racing Ralph, 29x2.25, Performance, Folding · Rear tire: Schwalbe Racing Ralph, 29x2.25, Performance, Folding
Controls and contact points
Archived: Handlebar: Giant Connect Trail, 31.8mm · Stem: Giant Connect · Seatpost: Giant Connect, 27.2mm · Saddle: Giant Contact Forward
Before and during the test ride
Follow the full used-bike inspection order →Build relationships are limited to the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
