Velopedia Bicycle Archive

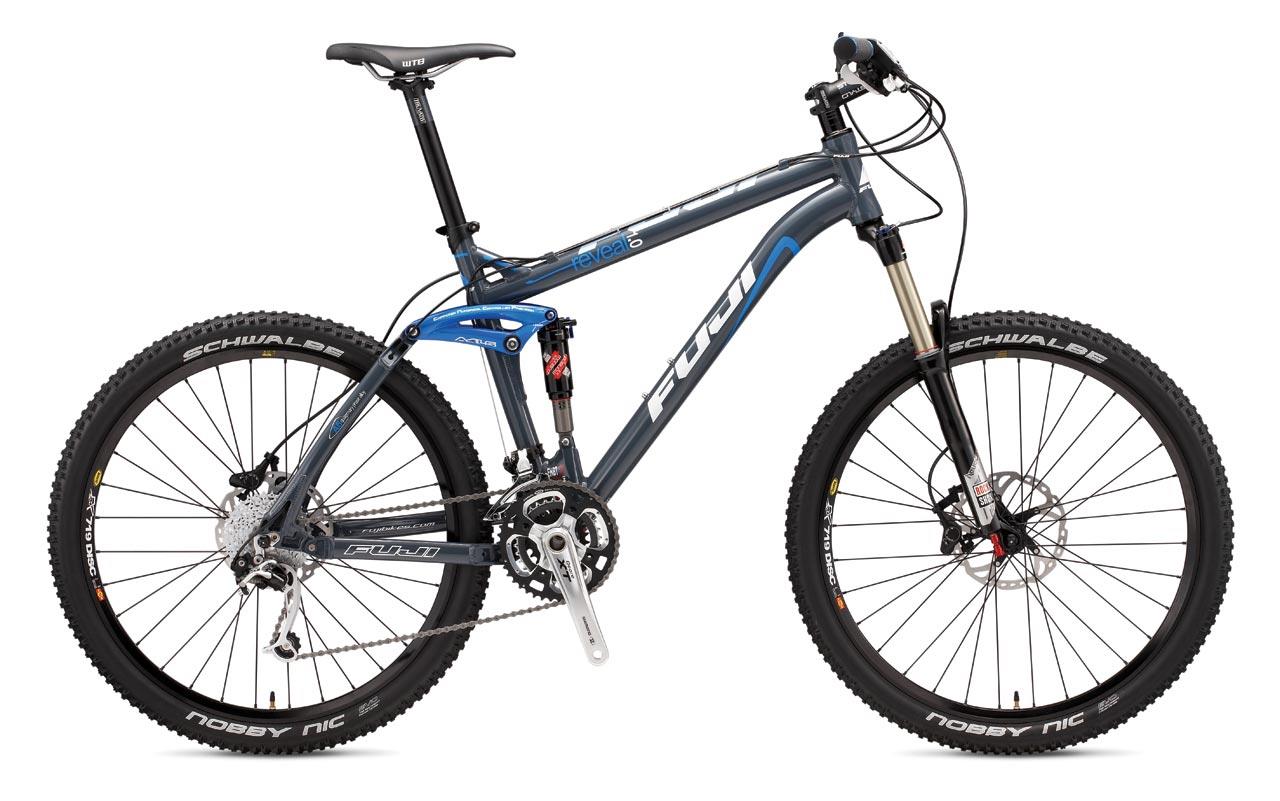

2010 Fuji Reveal 1.0
Mountain bike, front & rear suspension bicycle from the Velopedia historical specification archive.
- Original MSRP
- $2,950.00
- Sizes
- S, M, L
- Colors
- Grey
- Weight
- 27.96
- Archive ID
- 20156
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | A-6 Quaternary aluminum |
| Fork | RockShox Revelation SL Air w/Motion Control & PopLoc Remote, 130mm travel |
| Fork Material | Single crown |
| Rear Shock | RockShox Monarch 3.3, 130mm travel |
Drivetrain
| Component Group | Shimano Deore XT |
|---|---|
| Shifters | Shimano Deore XT RapidFire |
| Front Derailleur | Shimano Deore XT, clamp on 34.9mm |
| Rear Derailleur | Shimano Deore XT Shadow Top normal |
| Crankset | Shimano Deore XT, 22/32/44 teeth |
| Bottom Bracket | Shimano external bearing |
| Cassette | Shimano Deore XT |
| Rear Cogs | 9-speed, 11 - 34 teeth |
| Chain | Shimano HG-73 |
| Pedals | Not included |
Brakes
| Brakes | Shimano Deore XT Disc w/180mm center-lock rotor brakes, Shimano Deore XT levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" integrated Ritchey Logic Zero Pro |
|---|---|
| Handlebar | Truvativ Stylo Race |
| Handlebar Extensions | Not included |
| Stem | TruVativ Stylo Race Forged AL |
| Saddle | WTB Silverado Comp |
| Seatpost | TruVativ Stylo Race Forged Al, 350mm |
Wheels & Tires
| Hubs | Shimano Deore XT CenterLock disc |
|---|---|
| Rims | Mavic XM-719 disc, 32-hole |
| Spokes | Stainless steel, 14/15/14ga. (2.0/1.8/2.0mm) double-butted |
| Front Tire | 26 x 2.25" Schwalbe Nobby Nic |
| Wheel Size | 26" wheels |
Historical specifications are presented as an archival reference. Component specifications may have varied by market, size, or production run.
