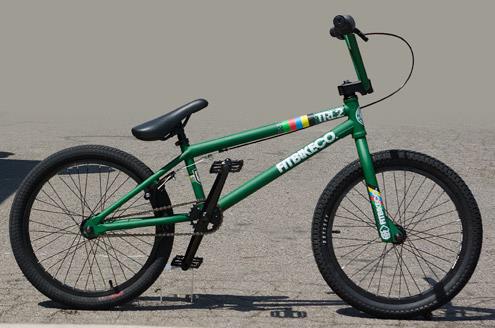

2009 Fit Bike Co. TRL 2
BMX bicycle from the Velopedia specification archive.
- Original MSRP
- $429.99
- Colors
- Flat Green, Clear
- Weight
- 25.5
- Archive ID
- 15956
Frameset
| Frame Construction | TIG-welded |
|---|
| Frame Material | 4130 chromoly/1020 hi ten |
|---|
| Fork | Fit Bike Co. |
|---|
| Fork Material | 4130 chromoly, unicrown crown |
|---|
| Rear Shock | N/A |
|---|
Drivetrain
| Component Group | BMX |
|---|
| Shifters | N/A |
|---|
| Front Derailleur | N/A |
|---|
| Rear Derailleur | N/A |
|---|
| Crankset | 3-Piece Tubular Chromoly 175mm, 25 teeth |
|---|
| Bottom Bracket | Sealed Bearing Mid BB |
|---|
| Cassette | Driver |
|---|
| Rear Cogs | 1-speed, 9 teeth |
|---|
| Chain | KMC Z410, 1/2 x 1/8" |
|---|
| Pedals | Alloy Platform |
|---|
Brakes
| Brakes | Tektro U-brake rear brakes, Tektro rear levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" threadless FSA Impact |
|---|
| Handlebar | Fit 7.75 Bar |
|---|
| Handlebar Extensions | Not included |
|---|
| Stem | Front Load Alloy |
|---|
| Saddle | Short Jump |
|---|
| Seatpost | Steel micro-adjust, 25.4mm diameter |
|---|
Wheels & Tires
| Hubs | Front: Alloy Sealed 14mm axle, Rear: Alloy Sealed Cassette 14mm axle |
|---|
| Rims | Alienation PBR Black, 36-hole |
|---|
| Spokes | 14ga. (2.0mm) |
|---|
| Spoke Nipples | Brass nipples |
|---|
| Front Tire | Front: 20 x 2.10" Odyssey Dirtpath, Rear: 20 x 1.95" Fit |
|---|
| Wheel Size | 20" wheels |
|---|
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
