Velopedia Bicycle Archive

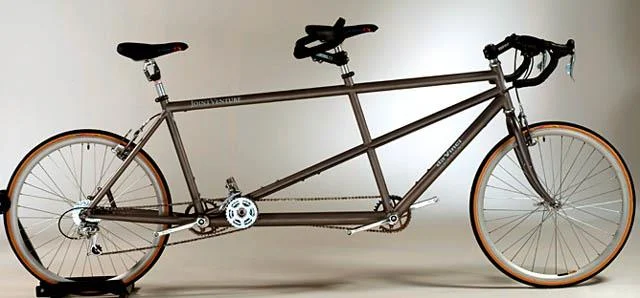

2003 da Vinci Designs Joint Venture Titanium
Tandem (road) bicycle from the Velopedia specification archive.
- Original MSRP
- $0.00
- Sizes
- 7 stock frame sizes, custom frames available
- Colors
- Brushed, Media Blast, Natural Finish
- Weight
- 34.5
- Archive ID
- 38625
Image not yet recovered
Current market
Checking current listings…Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | 3Al/2.5V titanium w/6Al/4V titanium |
| Fork | Custom |
| Fork Material | Chromoly, oversize, unicrown crown |
| Rear Shock | N/A |
Drivetrain
| Component Group | Tandem Mix |
|---|---|
| Shifters | Campagnolo Chorus Ergo |
| Front Derailleur | Campagnolo Racing Triple, bottom-pull/clamp-on 28.6mm |
| Rear Derailleur | Campagnolo Racing Triple |
| Crankset | Da Vinci, 24/36/48/60 teeth |
| Bottom Bracket | Da Vinci CNC machined eccentric, 107mm spindle |
| BB Shell Width | N/A |
| Rear Cogs | 8-speed, Buyer's choice of gearing |
| Chain | SRAM PC-68, 1/2 x 3/32" |
| Pedals | Not included |
Brakes
| Brakes | Avid Single Digit 7 brakes, Campagnolo Chorus Ergo levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" threadless FSA |
|---|---|
| Handlebar | Icon Sterling |
| Handlebar Extensions | N/A |
| Stem | Titec Big AL |
| Saddle | Avocet R40 |
| Seatpost | Thomson Elite / Tamer Pivot Plus, 29.8mm diameter |
Wheels & Tires
| Hubs | White Industries |
|---|---|
| Rims | Da Vinci V-22, 36-hole |
| Spokes | Wheelsmith stainless steel, 14/15ga. (2.0/1.8mm) double-butted |
| Spoke Nipples | Brass nipples |
| Front Tire | 26 x 1.25" Panaracer Pasela, kevlar |
| Wheel Size | 26" wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
