7.5–34.4 mph at 90 rpm, estimated from the published rear tire size 700×29c · 29-622 ETRTO.
Velopedia Bicycle Archive

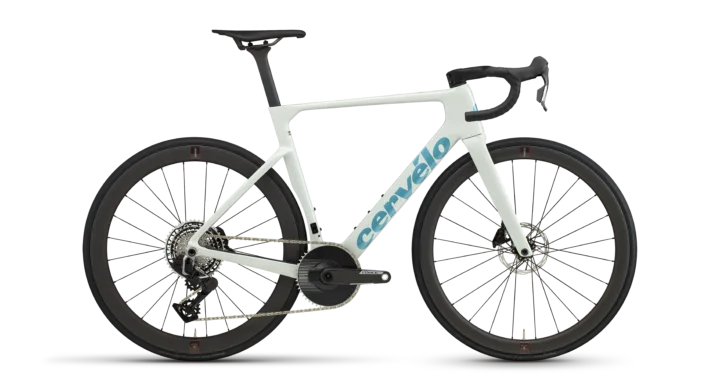

2026 Cervelo Soloist Force AXS 1
Original specifications: 7.09 kgs published weight · geometry for 6 published sizes.
Selling this bike? Create a shareable bike record
At a glance
- Model year
- 2026
- Category
- Road
- Original MSRP
- $8,500.00
- Sizes
- 48, 51, 54, 56, 58, 61
- Colors
- Cloud Break
- Weight
- 7.09 kgs
- Geometry
- 6 manufacturer sizes
- In this record
- 16 specifications · archived image · original MSRP · geometry
- Archive ID
- 900000026
Original build16 specifications
Frameset
| Fork | Cervélo All-Carbon, Tapered Soloist Fork |
|---|---|
| Fork Material | Carbon Fiber |
Drivetrain
| Shifters | SRAM Force AXS E1 |
|---|---|
| Rear Derailleur | SRAM Force XPLR AXS E1 |
| Crankset | SRAM Force 1 AXS E1, 48T Aero, DUB, with power meter |
| Bottom Bracket | SRAM DUB, T47 BBright |
| Cassette | SRAM Force XPLR E1, 10-46T, 13-Speed |
| Chain | SRAM Force E1 |
Brakes
| Brakes | Brake controls: SRAM Force AXS E1; Rotors: SRAM Paceline Centerlock |
|---|
Cockpit & Contact Points
| Headset | FSA IS2 1-1/4, 45° x 45° / 1-1/2, 36° x 45° |
|---|---|
| Handlebar | Cervélo HB18 Carbon |
| Saddle | Fizik Arione R3 |
| Seatpost | Cervélo SP27 Carbon |
Wheels & Tires
| Wheels | Front: Reserve 42TA, DT Swiss 350, 12x100mm, 24H, centerlock, tubeless compatible; Rear: Reserve 49TA, DT Swiss 350, 12x142mm, XDR freehub, 24H, centerlock, tubeless compatible |
|---|---|
| Front Tire | Vittoria Corsa N.EXT TLR G2.0 700x29c |
| Rear Tire | Vittoria Corsa N.EXT TLR G2.0 700x29c |
Geometry
Frame measurements by size.
Published frame view
Select an available measurement to locate it on the frame.
All geometry measurements6 sizes · 14 measurements
| Measurement | 48 | 51 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|
| Top tube | 506 mm | 526 mm | 545 mm | 565 mm | 581 mm | 595 mm |
| Head tube | 89.6 mm | 109.3 mm | 132 mm | 156 mm | 182.8 mm | 203.7 mm |
| Head-tube angle | 71° | 72° | 73° | 73° | 73° | 73° |
| Seat-tube angle | 74.5° | 74° | 73.5° | 73° | 73° | 73° |
| Chainstay / rear center | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm |
| Wheelbase | 976.8 mm | 977.6 mm | 978 mm | 992.8 mm | 1010.3 mm | 1024.5 mm |
| Bottom-bracket drop | 77 mm | 77 mm | 74 mm | 74 mm | 72 mm | 72 mm |
| Reach | 368.7 mm | 376.5 mm | 383.3 mm | 391.1 mm | 400.3 mm | 408.3 mm |
| Stack | 496.1 mm | 520.2 mm | 544.6 mm | 567.5 mm | 590.7 mm | 610.7 mm |
| Standover height | 707.6 mm | 747.1 mm | 773.8 mm | 811.6 mm | 820.7 mm | 839 mm |
| Fork offset / rake | 58 mm | 52 mm | 46 mm | 46 mm | 46 mm | 46 mm |
| Front center | 579.1 mm | 579.9 mm | 579.5 mm | 594.2 mm | 610.8 mm | 624.8 mm |
| Trail | 57.3 mm | 57.3 mm | 57.3 mm | 57.3 mm | 57.3 mm | 57.3 mm |
| Wheel size | 700c | 700c | 700c | 700c | 700c | 700c |
Measurements may vary by configuration, wheel size, or frame setting where noted in the published chart.
Gearing
Lower ratios provide more mechanical advantage for climbing. Higher ratios turn the rear wheel farther with each crank revolution.
Parts & serviceability
Find replacement parts
More parts (5)
Based on the original build. Confirm the model, size and fit before ordering; installed parts may differ. As an Amazon Associate I earn from qualifying purchases. Velopedia may also earn from qualifying eBay purchases. Velopedia may also earn from qualifying retailer purchases.
Bike-specific inspection checklist 20 checks based on 5 archived component groups Open checklistClose checklist
This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.
Identity and fit
Follow the full used-bike inspection order →Archived: 2026 Cervelo Soloist Force AXS 1 · Road · Published sizes: 48, 51, 54, 56, 58, 61
Frame and fork
Inspect the frame and fork →Archived: Fork: Cervélo All-Carbon, Tapered Soloist Fork · Carbon Fiber
Drivetrain
Check drivetrain wear →Archived: Shifters: SRAM Force AXS E1 · Rear derailleur: SRAM Force XPLR AXS E1 · Crankset: SRAM Force 1 AXS E1, 48T Aero, DUB, with power meter · Bottom bracket: SRAM DUB, T47 BBright · Cassette: SRAM Force XPLR E1, 10-46T, 13-Speed · Chain: SRAM Force E1
Brakes
Inspect the brakes →Archived: Brakes: Brake controls: SRAM Force AXS E1; Rotors: SRAM Paceline Centerlock
Wheels and tires
Check wheels and tires →Archived: Wheels: Front: Reserve 42TA, DT Swiss 350, 12x100mm, 24H, centerlock, tubeless compatible; Rear: Reserve 49TA, DT Swiss 350, 12x142mm, XDR freehub, 24H, centerlock, tubeless compatible · Front tire: Vittoria Corsa N.EXT TLR G2.0 700x29c · Rear tire: Vittoria Corsa N.EXT TLR G2.0 700x29c
Controls and contact points
Archived: Headset: FSA IS2 1-1/4, 45° x 45° / 1-1/2, 36° x 45° · Handlebar: Cervélo HB18 Carbon · Seatpost: Cervélo SP27 Carbon · Saddle: Fizik Arione R3
Before and during the test ride
Follow the full used-bike inspection order →Have you owned this bike?Help preserve its real-world history by sharing your owner experience.
Share the details that would help another rider understand how this model fits, rides and holds up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.
Checking current listings…
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
